6.6 Typical Characteristics

at TA = –40°C to 125°C, VIN = VOUT(NOM) + 0.5 V or VIN = 3 V (whichever is greater), VEN = VIN, IOUT = 10 μA, CIN = 1 µF, COUT = 2.2 µF, and FB tied to OUT (unless otherwise noted)

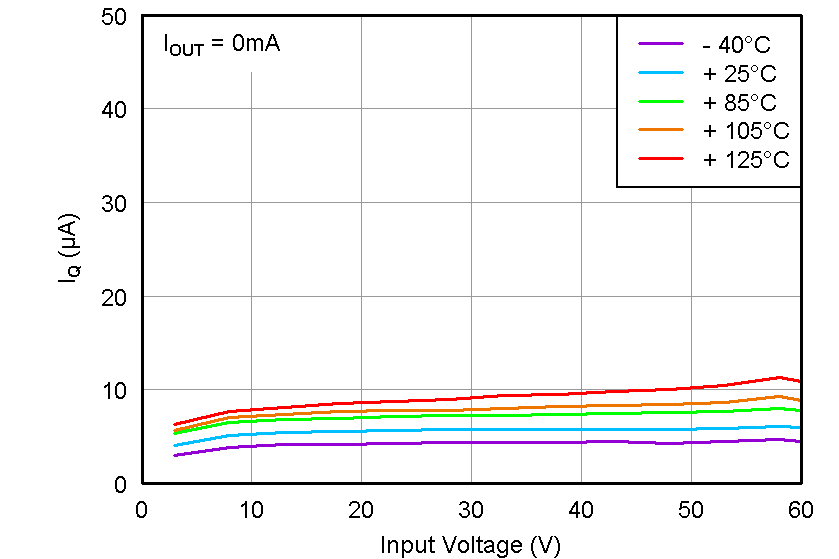

Figure 6-1 Quiescent Current vs Input Voltage

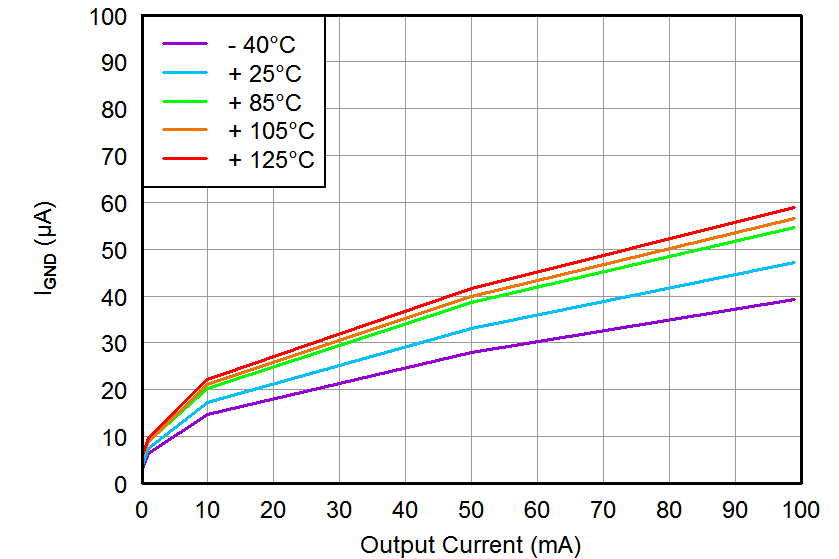

Figure 6-3 Ground Current vs Output Current

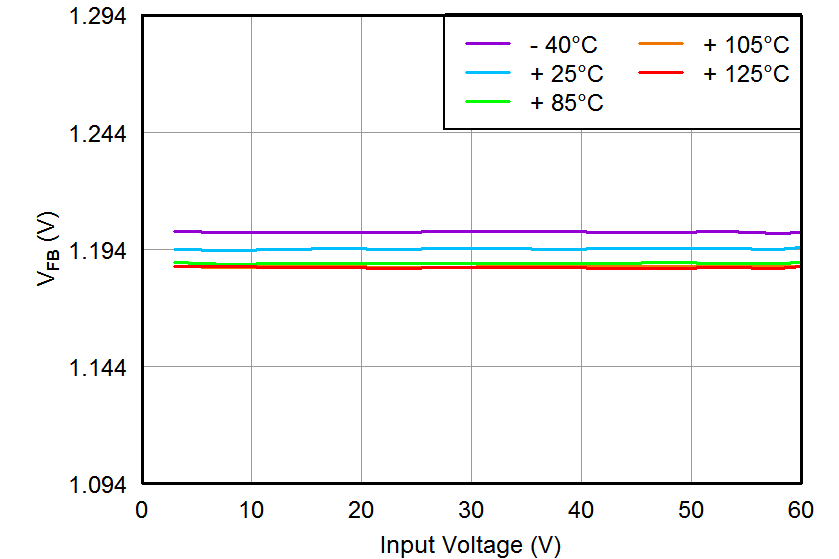

Figure 6-5 Feedback Voltage vs Input Voltage

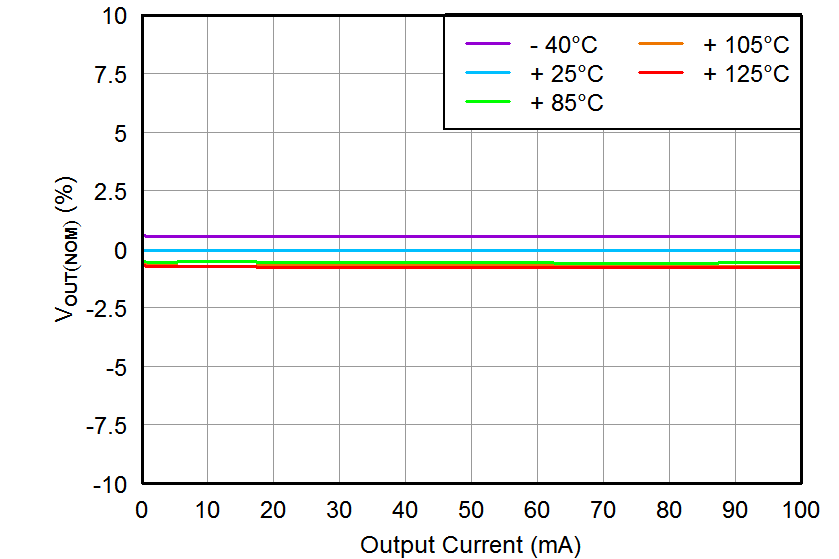

Figure 6-7 Load Regulation

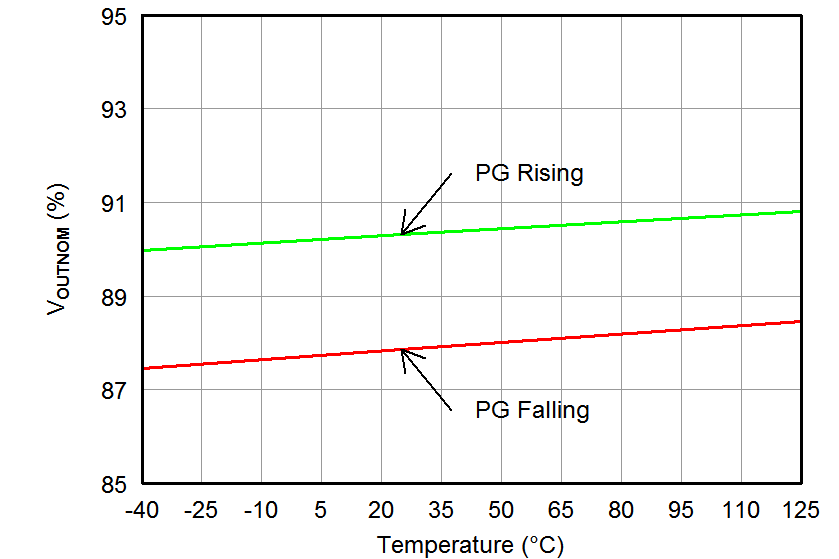

Figure 6-9 Power-Good Threshold Voltage vs Temperature

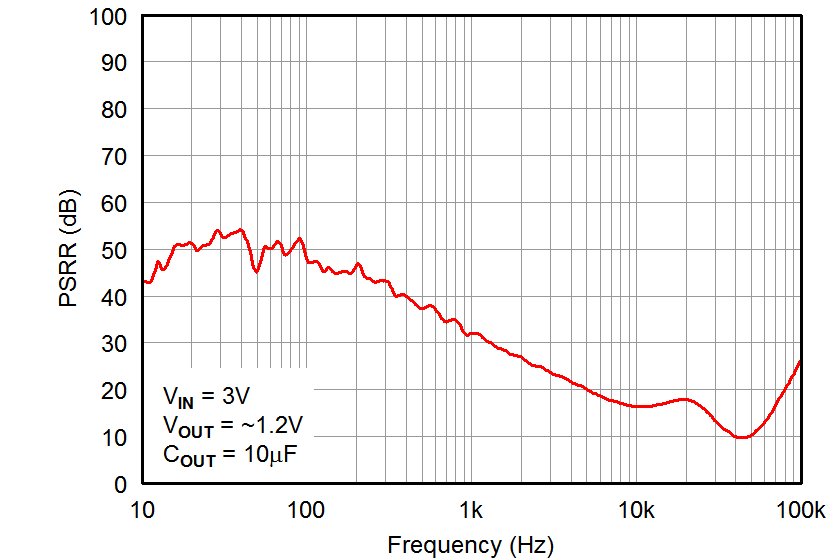

Figure 6-11 Power-Supply Rejection Ratio vs Frequency

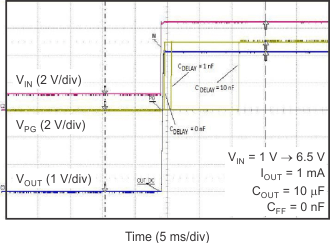

Figure 6-13 Power-Good Delay

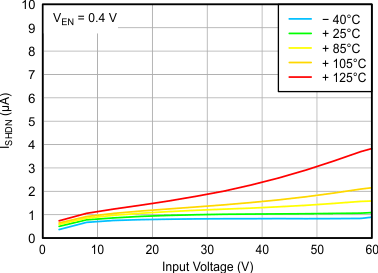

Figure 6-2 Shutdown Current vs Input Voltage

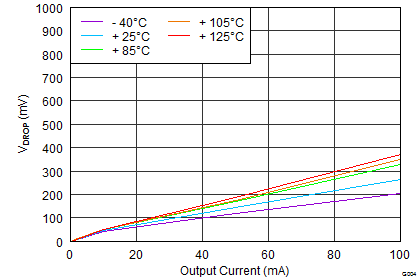

Figure 6-4 Dropout Voltage vs Output Current

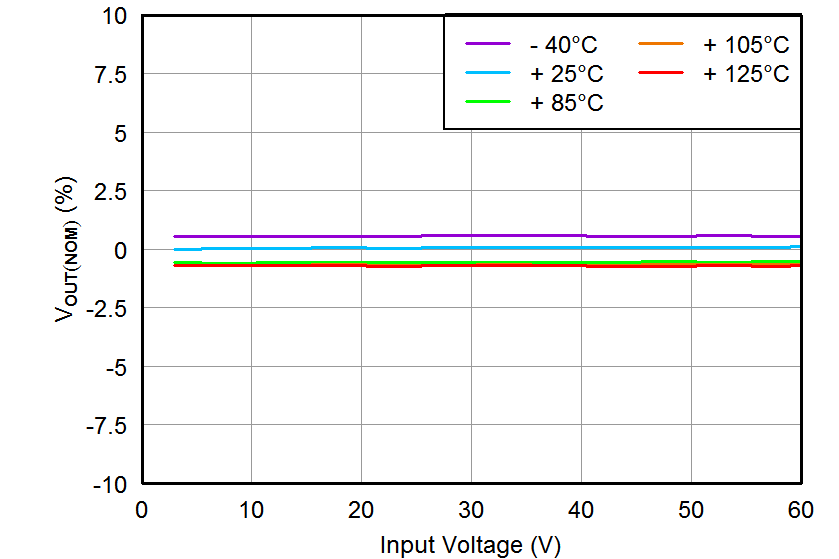

Figure 6-6 Line Regulation

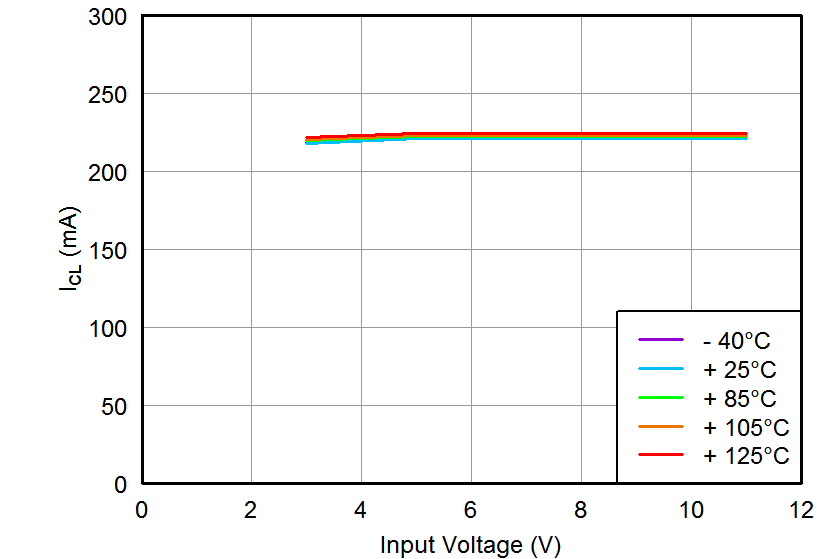

Figure 6-8 Current Limit vs Input Voltage

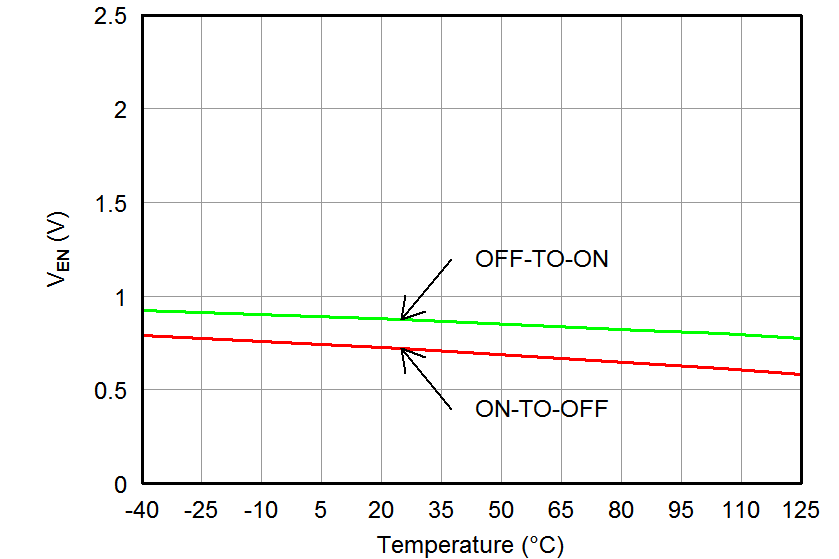

Figure 6-10 Enable Threshold Voltage vs Temperature

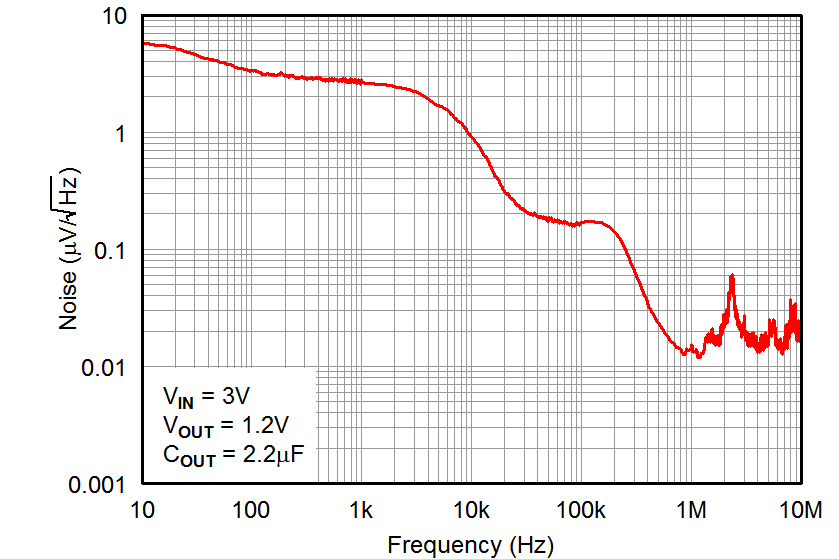

Figure 6-12 Output Spectral Noise Density
