8.2 Typical Application

Figure 8-1 and Figure 8-2 show the basic circuit connections.

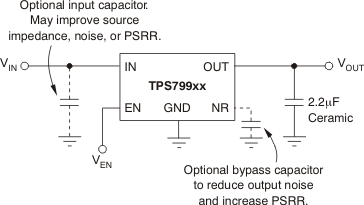

GUID-4DF4DBF8-4873-4587-A64E-5DEB385C6D10-low.gifFigure 8-1 Typical Application Circuit for Fixed Voltage Versions
GUID-CFF59877-D7E7-4881-9DA0-95DABD88CD0F-low.gifFigure 8-2 Typical Application Circuit for Adjustable Voltage Version
