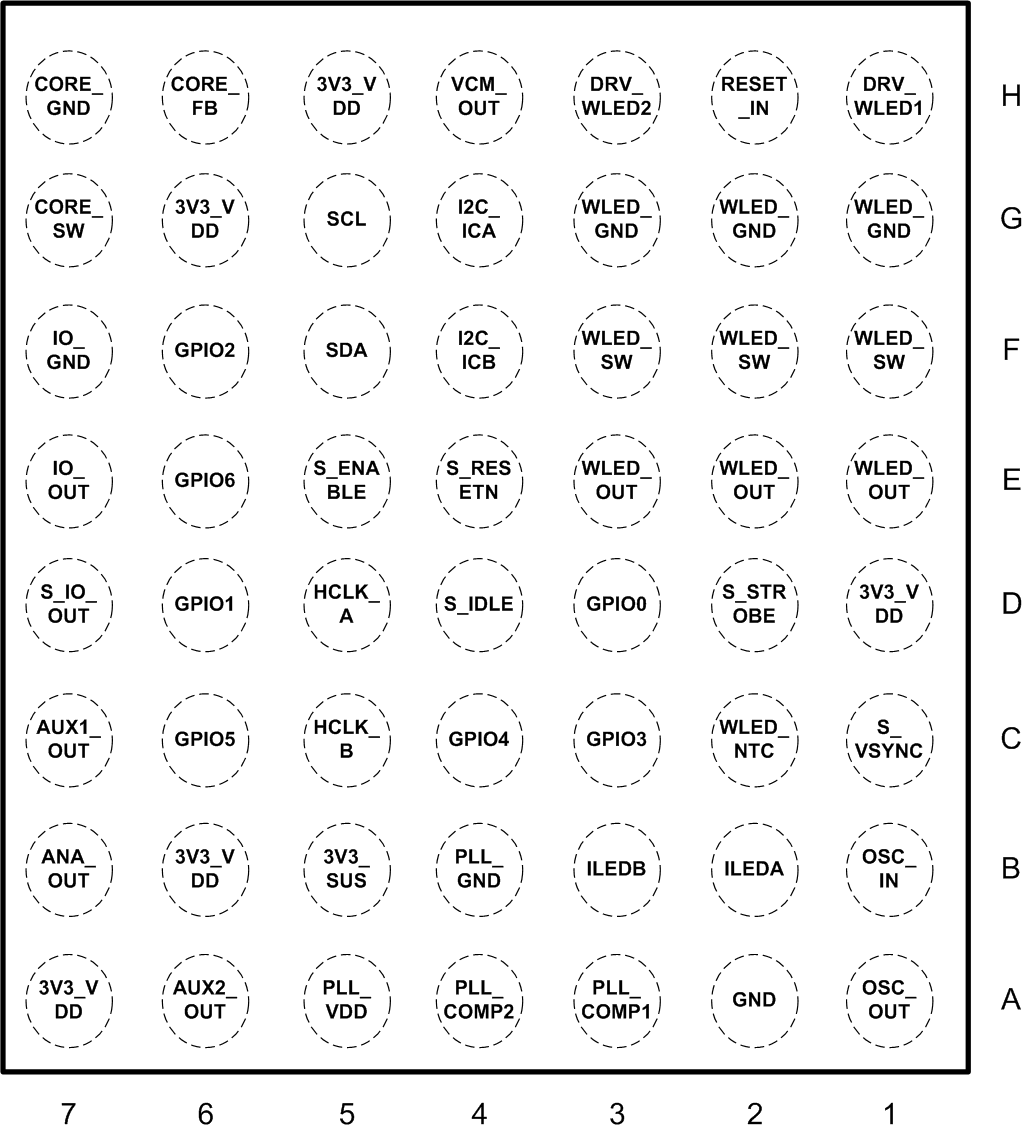

6 Pin Configuration and Functions

56-Pin DSBGA
YFF Package
(Top View)
TPS68470 Pinout_Drawing.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NUMBER
I2C_ICA G4 I TPS68470 I2C Address select pin A
I2C_ICB F4 I TPS68470 I2C Address select pin B
SDA F5 I/O I2C data
SCL G5 I I2C clk
GPIO0 D3 I/O GPIO
GPIO1 D6 I/O GPIO (sensor SDA in daisy chain mode)
GPIO2 F6 I/O GPIO (sensor SCL in daisy chain mode)
GPIO3 C3 I/O GPIO or External Reference Clock when XTAL is disabled
GPIO4 C4 I/O GPIO
GPIO5 C6 I/O GPIO
GPIO6 E6 I/O GPIO
S_RESETN E4 O Sensor reset
S_ENABLE E5 O Sensor power enable / power down
S_IDLE D4 O Sensor power down mode
S_VSYNC C1 I Sensor activity indication enable
RESET_IN H2 I Platform reset input (active low)
S_STROBE D2 I White LED trigger input
OSC_IN B1 I XTAL input
OSC_OUT A1 O XTAL output
HCLK_A D5 O Sensor Clock
HCLK_B C5 O Alternate Sensor Clock
PLL_COMP1 A3 O PLL compensation
PLL_COMP2 A4 O SS PLL compensation
VCM_OUT H4 O VCM LDO output
ANA_OUT B7 O Analog LDO output
IO_OUT E7 O IO LDO output
S_IO_OUT D7 O Sensor IO LDO output
IO_GND F7 - IO and digital GND
AUX1_OUT C7 O Auxiliary LDO1 output
AUX2_OUT A6 O Auxiliary LDO2 output
CORE_SW G7 O Core Buck SW
CORE_FB H6 I Core Buck feedback
CORE_GND H7 - Core Buck GND
WLED_SW F3, F2, F1 O White LED Boost SW
WLED_OUT E3, E2, E1 O White LED Boost output, connect 2 x 10uF capacitors to this output
WLED_GND G3, G2, G1 - White LED Boost GND
WLED_NTC C2 I White LED Temperature sensor feedback
DRV_WLED1 H1 I White LED 1 current sink (the source of current is from WLED_OUT)
DRV_WLED2 H3 I White LED 2 current sink (the source of current is from WLED_OUT)
ILEDA B2 O Indicator LED A driver
ILEDB B3 O Indicator LED B driver
PLL_VDD A5 O PLL internal regulator (connect a 1µF capacitor to this pin)
PLL_GND B4 - PLL GND
3V3_VDD H5, G6, D1, B6, A7 I 3.3V input
* H5 - LDO_VCM
* G6 - CORE Buck Converter
* D1 - WLED Boost Converter
* B6 - LDO_PLL
* A7 - LDO_AUX1, LDO_ANA, LDO_IO, LDO_SIO
3V3_SUS B5 I 3.3V Auxiliary sustaining rail input (LDO_AUX2)
GND A2 - Ground
