7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Input voltage on all pins except A/PGND pins with respect to AGND –0.3 7 V
Voltage on pin VLDO1 with respect to AGND –0.3 3.6 V
Current L1, VLDO1, VINLDO1, PGND 600 mA
AGND 20 mA
All other pins 3 mA
Continuous total power dissipation See Dissipation Ratings
Operating free-air temperature, TA –40 85 °C
Maximum junction temperature, TJ 125 °C
Storage temperature, Tstg –65 150 °C

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN1/2 Input voltage for step-down converter DCDC1 and DCDC2 3.3 6 V
IOUTDCDC1/2 Output current at L 400 mA
L Inductor at L 1.5 2.2 4.7 µH
VINLDO Input voltage for LDO 1.7 6.0 V
ILDO Output current at LDO 200 mA
CINDCDC1/2 Input Capacitor at VIN1 and VIN2 4.7 µF
COUTDCDC1/2 Output Capacitor at VOUT1, VOUT2 4.7 10 22 µF
CINLDO Input Capacitor at VINLDO 2.2 µF
COUTLDO Output Capacitor at VLDO 2.2 µF
TA Operating ambient temperature –40 85 °C
TJ Operating junction temperature –40 125 °C

7.4 Thermal Information

THERMAL METRIC(1) TPS65705x UNIT
YZH (DSBGA)
16 PINS
RθJA Junction-to-ambient thermal resistance 75 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 22 °C/W
RθJB Junction-to-board thermal resistance 26 °C/W
ψJT Junction-to-top characterization parameter 0.2 °C/W
ψJB Junction-to-board characterization parameter 24 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

Unless otherwise noted: VIN1 = VIN2 = VINLDO = 3.6 V, L = LQMP21P 2.2 µH, COUTDCDCx = 10 µF, COUTLDO = 2.2 µF, TA = –40°C to +85°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY CURRENT
IQ Operating quiescent current DCDCx DCDC1 and DCDC2 enabled, IOUT = 0 mA, MODE =0
(PFM mode), LDO disabled		 40 µA
DCDC1 or DCDC2 enabled, IOUT = 0 mA, MODE =0
(PFM mode), LDO disabled		 25 µA
DCDC1 or DCDC2 enabled, IOUT = 0 mA. MODE =1 (forced PWM mode), LDO disabled 4 mA
Operating quiescent current LDO DCDC1 and DCDC2 disabled, LDO enabled.
IOUT = 0 mA		 25 37 µA
ISD Shutdown current DCDC1, DCDC2, and LDO disable 5 12 µA
DIGITAL PINS (EN1, EN2, ENLDO, MODE)
VIH High-level input voltage for EN1, EN2, ENLDO, MODE 1.2 VCC V
VIL Low-level input voltage for EN1, EN2, ENLDO, MODE 0.4 V
ILKG Input leakage current EN1, EN2, ENLDO, MODE tied to GND
or VIN = VIN2		 0.01 0.1 μA
STEP-DOWN CONVERTERS
VIN1 Input voltage for DCDC1 3.3 6 V
VIN2 Input voltage for DCDC2 3.3 6 V
UVLO Internal undervoltage lockout threshold VIN1 = VIN2 falling 2.15 2.2 2.25 V
Internal undervoltage lockout threshold hysteresis VIN1 = VIN2 rising 120 mV
POWER SWITCH
RDS(ON) High-side MOSFET ON-resistance VIN1 = VIN2 = 3.6 V 350 750 mΩ
Low-side MOSFET ON-resistance VIN1 = VIN2 = 3.6 V 350 600 mΩ
ILIMF Forward current limit 3.3 V ≤ VIN1 = VIN2 ≤ 6 V 550 650 770 mA
IOUTDCDC1/2 DCDC1/DCDC2 output current VIN1 = VIN2 > 3.3 V , L = 2.2 µH 400 mA
OSCILLATOR
fSW Oscillator frequency 2.03 2.25 2.48 MHz
OUTPUT
VOUT1 DCDC1 default output voltage VIN1 = VIN2 ≥ 3.3 V 3.3 V
VOUT2 DCDC2 default output voltage VIN1 = VIN2 ≥ 3.3 V 1.8 V
IFB FB pin input current DC-DC converter disabled 0.1 µA
VOUT DC output voltage accuracy(1) VIN1 = VIN2 = 3.3 V to 6 V, +1% voltage positioning active; PFM operation, 0 mA < IOUT < IOUTMAX +1% +3%
DC output voltage accuracy VIN1 = VIN2 = 3.3 V to 6 V, PWM operation,
0 mA < IOUT < IOUTMAX		 –1.5% +1.5%
DC output voltage load regulation PWM operation 0.5 %/A
tStart Start-up time Time from active EN to Start switching 200 µs
tRamp VOUT ramp time Time to ramp from 5% to 95% of VOUT 250 µs
RDIS Internal discharge resistor at L1 or L2
(TPS657051 Only)		 DCDC1 or DCDC2 disabled 250 400 600 Ω
THERMAL PROTECTION SEPARATELY FOR DCDC1, DCDC2 AND LDO1
TSD Thermal shutdown Increasing junction temperature 150 °C
Thermal shudown hysteresis Decreasing junction temperature 30 °C
VLDO, LOW DROPOUT REGULATOR
VINLDO Input voltage range for LDO 1.7 6 V
VLDO TPS657051 LDO default output voltage(2) 3 V
VLDO TPS657052 LDO default output voltage(3) 2.8 V
IO Output current for LDO 200 mA
ISC LDO short circuit current limit VLDO = GND 340 400 550 mA
Dropout voltage at LDO IO = 200 mA 200 mV
Output voltage accuracy for LDO IO = 100 mA, VOUT = 2.8V –2% +2%
Line regulation for LDO VINLDO = VLDO + 0.5 V (min. 1.7 V) to 6 V,
IO = 50 mA		 –1% 1%
Load regulation for LDO IO = 1 mA to 200 mA for LDO –1% 1%
PSRR Power supply rejection ratio fNOISE ≤ 10 kHz, COUT ≥ 2.2 µf Vin = 5 V,
Vout = 2.8 V, IOUT = 100 mA		 50 dB
Vn Ouput noise voltage Vout = 2.8 V, BW = 10Hz to 100kHz 160 µV RMS
tRamp VOUT ramp time Internal soft-start when LDO is enabled; Time to ramp from 5% to 95% of VOUT 200 µs
RDIS Internal discharge resistor at VLDO LDO disabled 250 400 550 Ω
(1) In Power Save Mode (PFM), the internal reference voltage is 1.01 × Vref.
(2) VINLDO > 3 V
(3) VINLDO > 2.8 V

7.6 Dissipation Ratings

DEVICE PACKAGE RθJA TA ≤ 25°C
POWER RATING		 DERATING FACTOR
ABOVE TA = 25°C		 TA = 70°C
POWER RATING		 TA = 85°C
POWER RATING
TPS657051/52(1) YZH 185 540 mW 5.4 mW 297 mW 216 mW
TPS657051/52(2) YZH 75 1.3 W 13.3 mW 0.7 W 0.5 W
(1) The JEDEC low-K (1s) board used to derive this data was a 3in × 3in, two-layer board with 2-ounce copper traces on top of the board.
(2) The JEDEC high-K (2s2p) board used to derive this data was a 3in × 3in, multilayer board with 1-ounce internal power and ground.

7.7 Typical Characteristics

Table 1. Table Of Graphs

FIGURE
Efficiency DC-DC (VDCDC= 3.3 V), L = BRC1608 1.5 µH vs Load current / PFM mode Figure 1
Efficiency DC-DC (VDCDC= 3.3 V), L = BRC1608 1.5 µH vs Load current / PWM mode Figure 2
Efficiency DC-DC (VDCDC= 1.8 V), L = BRC1608 1.5 µH vs Load current / PFM mode Figure 3
Efficiency DC-DC (VDCDC= 1.8 V), L = BRC1608 1.5 µH vs Load current / PWM mode Figure 4
Line transient response DC-DC 1.8 V (PWM) Scope plot Figure 5
Line transient response DC-DC 1.8 V (PFM) Scope plot Figure 6
Line transient response LDO 2.8 V Scope plot Figure 7
Load transient response DC-DC 1.8 V (PWM/PFM)
20 mA to 180 mA		 Scope plot Figure 8
Load transient response DC-DC 1.8 V (PWM) 20 mA to 180 mA Scope plot Figure 9
Load transient response DC-DC 1.8 V (PFM/PWM)
20 mA to 360 mA		 Scope plot Figure 10
Load transient response DC-DC 1.8 V (PWM) 20 mA to 360 mA Scope plot Figure 11
Load transient response LDO 2.8 V Scope plot Figure 12
DC-DC PFM to PWM mode transition Scope plot Figure 13
DC-DC PWM to PFM mode transition Scope plot Figure 14
DC-DC Output voltage ripple in PFM mode Scope plot Figure 15
DC-DC Output voltage ripple in PWM mode Scope plot Figure 16
Startup timing DC-DC 1.8 V Scope plot Figure 22
Startup timing LDO 2.8 V Scope plot Figure 23
LDO PSRR Scope plot Figure 17
DC-DC Quiescent current vs VINDCDC Figure 18
LDO Quiescent current vs VINDCDC Figure 19
Shutdown current vs VINDCDC Figure 20
TPS657051 TPS657052 eff1_io_lvsa08.gif Figure 1. Efficiency DC-DC (VDCDC=3.3 V) vs Load Current PFM Mode
TPS657051 TPS657052 eff5a_io_lvsa08.gif Figure 3. Efficiency DC-DC (VDCDC=1.8 V) vs Load Current PFM mode
TPS657051 TPS657052 Ltrnspwm_a_lvsa08.gif Figure 5. Line Transient Response DC-DC 1.8 V (PWM)
TPS657051 TPS657052 line_LDO_lvsa08.gif Figure 7. Line Transient Response LDO 2.8 V
TPS657051 TPS657052 transpfm_pwmb_lvsa08.gif Figure 9. Load Transient Response DC-DC 1.8 V (PWM)
20 mA to 180 mA
TPS657051 TPS657052 transpfm_pwmd_lvsa08.gif Figure 11. Load Transient Response DC-DC 1.8 V (PWM)
20 mA to 360 mA

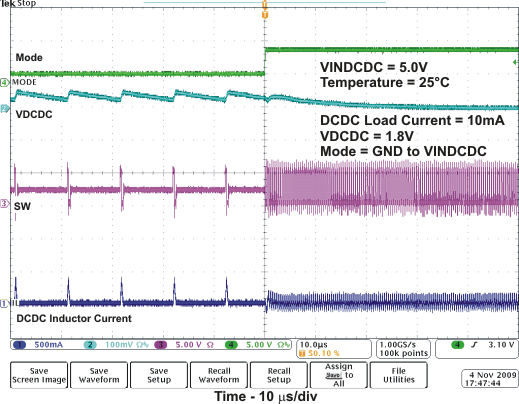

TPS657051 TPS657052 PFM_PWM_load_lvsa08.gif Figure 13. DC-DC PFM to PWM Mode Transition
TPS657051 TPS657052 DCD_op_PFM_ivsa08.gif Figure 15. DC-DC Output Voltage Ripple in PFM Mode
TPS657051 TPS657052 LDO_PSSR_lvsa08.gif Figure 17. LDO PSRR
TPS657051 TPS657052 quie2_vcc_lvsa08.gif Figure 19. LDO Quiescent Current

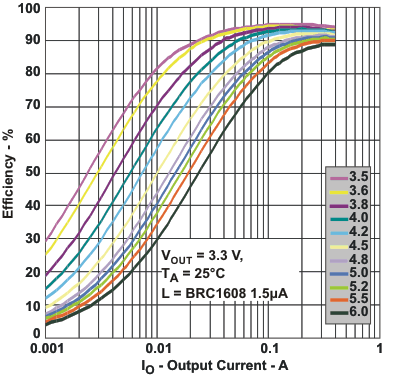

TPS657051 TPS657052 eff2_io_lvsa08.gif Figure 2. Efficiency DC-DC (VDCDC=3.3 V) vs Load Current PWM Mode
TPS657051 TPS657052 eff5b_io_lvsa08.gif Figure 4. Efficiency DC-DC (VDCDC=1.8 V) vs Load Current PWM mode
TPS657051 TPS657052 Ltrnspfm_b_lvsa08.gif Figure 6. Line Transient Response DC-DC 1.8 V (PFM)
TPS657051 TPS657052 transpfm_pwma_lvsa08.gif Figure 8. Load Transient Response DC-DC 1.8 V (PWM/PFM) 20 mA to 180 mA
TPS657051 TPS657052 transpfm_pwmc_lvsa08.gif Figure 10. Load Transient Response DC-DC 1.8 V (PFM/PWM) 20 mA to 360 mA
TPS657051 TPS657052 load_LDO_lvsa08.gif Figure 12. Load Transient Response LDO

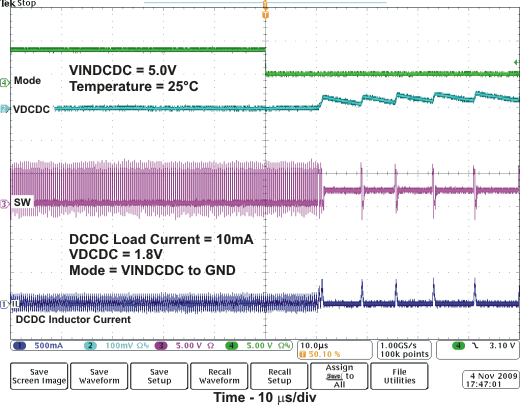

TPS657051 TPS657052 PWM_PFM_load_lvsa08.gif Figure 14. DC-DC PWM to PFM Mode Transition

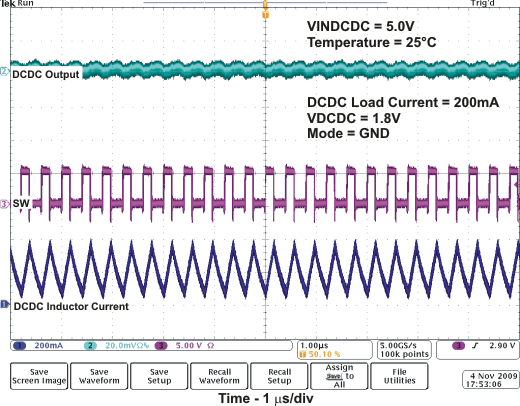

TPS657051 TPS657052 DCDC_op_PWM_lvsa08.gif Figure 16. DC-DC Output Voltage Ripple in PWM Mode
TPS657051 TPS657052 quie_vcc_lvsa08.gif Figure 18. DC-DC Quiescent Current
TPS657051 TPS657052 shtdwn_vcc_lvsa08.gif Figure 20. Shutdown Current
