Application Curves

Table 8-5 Table of Figures
FIGURE DESCRIPTION
Figure 8-2 TPS65130 efficiency versus output current, VPOS= 5 V
Figure 8-3 TPS65131 efficiency versus output current, VPOS= 5 V
Figure 8-4 TPS65130 efficiency versus output current, VPOS= 8 V
Figure 8-5 TPS65131 efficiency versus output current, VPOS= 10 V
Figure 8-6 TPS65130 efficiency versus output current, VPOS= 12 V
Figure 8-7 TPS65131 efficiency versus output current, VPOS= 15 V
Figure 8-8 TPS65130 efficiency versus output current, VNEG= –4 V, (VIN = 4 V, 3 V)
Figure 8-9 TPS65131 efficiency versus output current, VNEG= –4 V, (VIN = 5 V, 3 V)
Figure 8-10 TPS65130 efficiency versus output current, VNEG= –8 V, (VIN = 4.2 V, 3 V)
Figure 8-11 TPS65131 efficiency versus output current, VNEG= –10 V, (VIN = 5 V, 3 V)
Figure 8-12 TPS65130 efficiency versus output current, VNEG= –10 V, (VIN = 4.2 V, 3 V)
Figure 8-13 TPS65131 efficiency versus output current, VNEG= –15 V, (VIN = 5 V, 3 V)
Figure 8-14 TPS65130 efficiency versus input voltage, VPOS= 5 V in power-save mode
Figure 8-15 TPS65130 efficiency versus input voltage, VPOS= 8 V in power-save mode
Figure 8-16 TPS65130 efficiency versus input voltage, VPOS= 12 V in power-save mode
Figure 8-17 TPS65130 efficiency versus input voltage, VNEG= –4 V in power-save mode
Figure 8-18 TPS65130 efficiency versus input voltage, VNEG= –8 V in power-save mode
Figure 8-19 TPS65130 efficiency versus input voltage, VNEG= –10 V in power-save mode
Figure 8-20 TPS65130 efficiency versus output current, VO= 13.5 V (+9 V, –4.5 V), (VIN = 4.2 V, 3 V)
Figure 8-21 TPS65131 efficiency versus output current, VO= 30 V (±15 V, (VIN 5 V, 3 V)
Figure 8-22 TPS65130 efficiency versus input voltage, VO= 13.5 V (9 V, –4.5 V) in power save mode
Figure 8-23 TPS65130 output voltage versus output current, VPOS= 5 V, VIN = 3 V
Figure 8-24 TPS65131 output voltage versus output current, VPOS= 5 V, VIN = 4.2 V
Figure 8-25 TPS65130 output voltage versus output current, VPOS= 8 V, VIN = 3 V
Figure 8-26 TPS65131 output voltage versus output current, VPOS= 10 V, VIN = 5 V
Figure 8-27 TPS65130 output voltage versus output current, VPOS= 12 V (VIN = 3 V)
Figure 8-28 TPS65131 output voltage versus output current, VPOS= 15 V (VIN = 5 V)
Figure 8-29 TPS65130 output voltage versus output current, VNEG= –4 V, VIN = 3 V
Figure 8-30 TPS65131 output voltage versus output current, VNEG= –4 V, VIN = 5 V
Figure 8-31 TPS65130 output voltage versus output current, VNEG= –8 V, VIN = 3 V
Figure 8-32 TPS65131 output voltage versus output current, VNEG= –10 V, VIN = 5 V
Figure 8-33 TPS65130 output voltage versus output current, VNEG= –10 V, VIN = 3 V
Figure 8-34 TPS65131 output voltage versus output current, VNEG= –15 V, VIN = 5 V
Figure 8-35 Positive output voltage in continuous current mode
Figure 8-36 Negative output voltage in continuous current mode
Figure 8-37 Positive output voltage at power-save mode disabled
Figure 8-38 Negative output voltage at power-save mode disabled
Figure 8-39 Positive output voltage in power-save mode, VI = 3.6 V, VPOS = 5.5 V
Figure 8-40 Negative output voltage in power-save mode, VI = 3.6 V, VNEG = –8 V
Figure 8-41 Load transient response, VI = 3.6 V, VPOS = 8 V
Figure 8-42 Load transient response, VI = 3.6 V, VNEG = –8 V
Figure 8-43 Line transient response, VI = 3.6 V to 4.2 V, VPOS = 8 V
Figure 8-44 Line transient response, VI = 3.6 V to 4.2 V, VNEG = –8 V
Figure 8-45 Start-up after enable, VPOS = 8 V, VI = 3.6 V
Figure 8-46 Start-up after enable, VNEG = –8 V, VI = 3.6 V

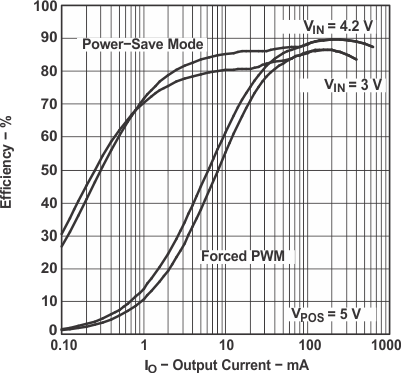

GUID-B49568BD-E169-4AA9-A8ED-A09A9819C85E-low.gifFigure 8-2 TPS65130 Efficiency vs Output Current

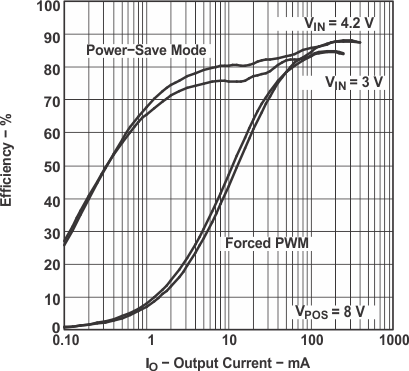

GUID-67931EF4-1EEE-4279-BD44-16E1DC13E3F6-low.gifFigure 8-4 TPS65130 Efficiency vs Output Current
GUID-70006DBC-BFBA-434F-A761-8A60C0C72ACD-low.gifFigure 8-6 TPS65130 Efficiency vs Output Current

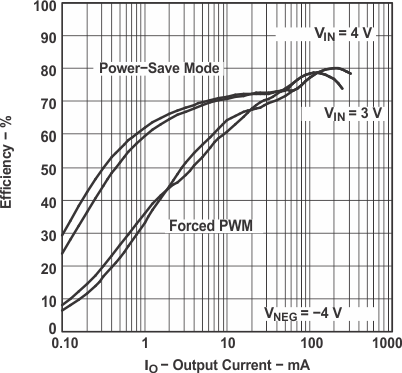

GUID-1C4CFE93-AE94-4674-9DD9-F06400BD3EA8-low.gifFigure 8-8 TPS65130 Efficiency vs Output Current

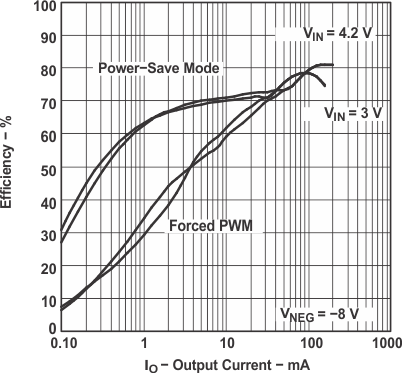

GUID-DF8DC8D5-4D42-4FB9-B496-3141D16CF51A-low.gifFigure 8-10 TPS65130 Efficiency vs Output Current

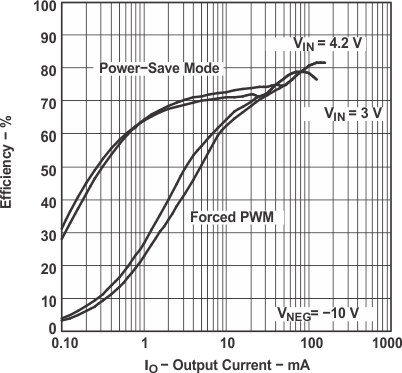

GUID-18FAACD5-F740-4538-9210-3C723C29BE80-low.gifFigure 8-12 TPS65130 Efficiency vs Output Current

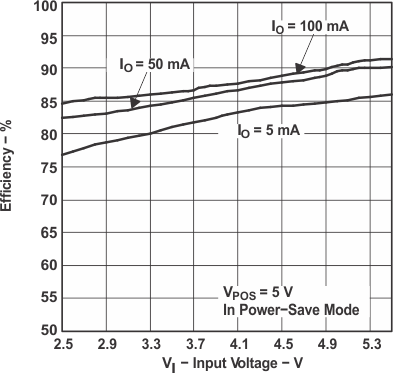

GUID-A193AD6C-BA2F-4304-9EFF-33222A8E1BC4-low.gifFigure 8-14 TPS65130 Efficiency vs Input Voltage

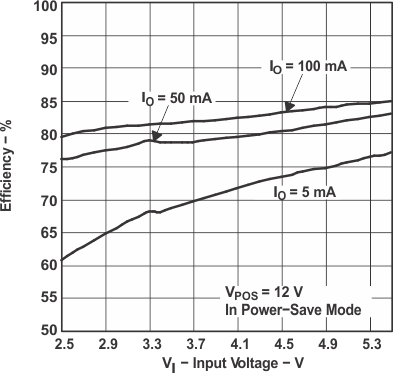

GUID-8E9842C3-4A8E-4AEB-842E-0BF3CB07B2F6-low.gifFigure 8-16 TPS65130 Efficiency vs Input Voltage

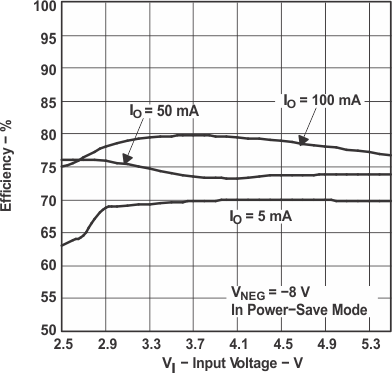

GUID-B122E4E5-66E0-4267-93F5-EF1AF8F77BA9-low.gifFigure 8-18 TPS65130 Efficiency vs Input Voltage

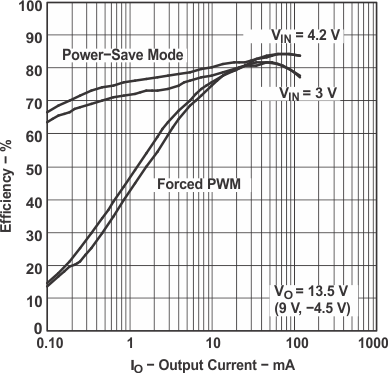

GUID-DC137E1F-7EC5-47AB-B151-636C7CDF530C-low.gifFigure 8-20 TPS65130 Combined Efficiency vs Output Current

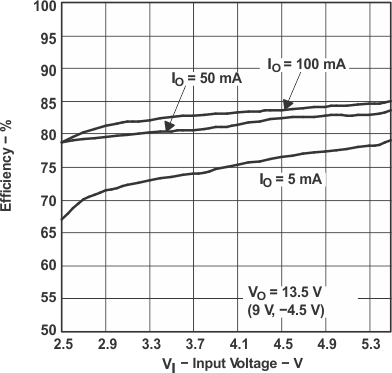

GUID-33608C13-3C6B-4DA3-A3E6-E4F63204FC50-low.gifFigure 8-22 TPS65130 Combined Efficiency vs Input Voltage

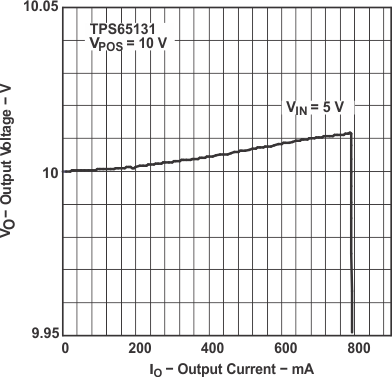

GUID-9EDAC7A5-563F-44C0-915E-F42A976DF6F2-low.gifFigure 8-24 TPS65131 Output Voltage vs Output Current
GUID-1707FEF0-14AE-475C-B441-0EE0A00DFFE8-low.gifFigure 8-26 TPS65131 Output Voltage vs Output Current

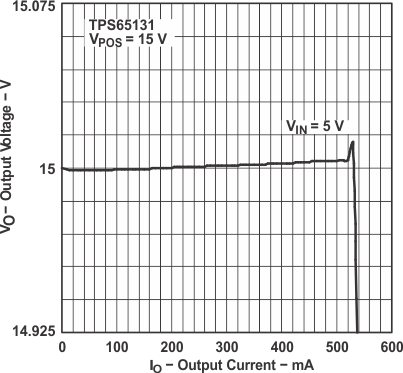

GUID-4B038141-3058-4CD4-9780-37B3CE81C634-low.gifFigure 8-28 TPS65131 Output Voltage vs Output Current

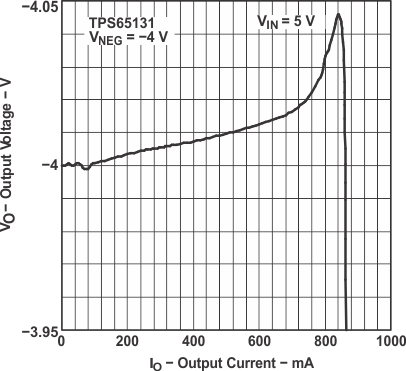

GUID-E18C3E11-B7EF-42DC-958C-E58827466E6F-low.gifFigure 8-30 TPS65131 Output Voltage vs Output Current

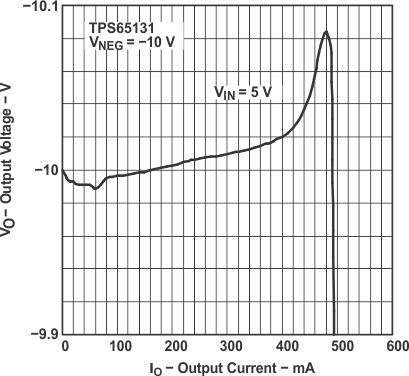

GUID-5D732828-4802-4742-A3EF-21037BEA597C-low.gifFigure 8-32 TPS65131 Output Voltage vs Output Current
GUID-8179C791-38C6-4F81-9C97-1EE960F0C3D5-low.gifFigure 8-34 TPS65131 Output Voltage vs Output Current
GUID-8BFC768B-A6D3-4CD1-944E-1EAEBFF7C61A-low.pngFigure 8-36 VNEG in Continuous Current Mode
GUID-8AB64187-3806-4F42-B80E-8AEE4C507422-low.pngFigure 8-38 VNEG at Power-Save Mode Disabled
Figure 8-40 VNEG in Power-Save Mode
GUID-EDA8A259-128B-4BBC-8DD1-83A26211D508-low.pngFigure 8-42 Load Transient Response
GUID-83569D09-39E9-4C5E-A0E4-D47DBA886ECB-low.pngFigure 8-44 Line Transient Response
Figure 8-46 Start-up After Enable

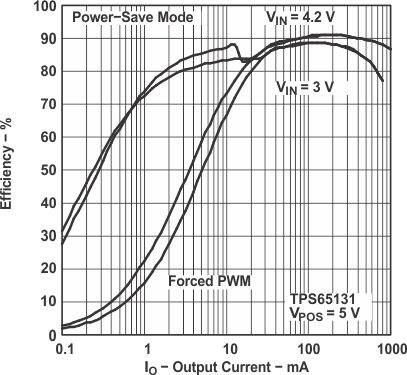

GUID-2D3969D9-62DD-416D-B0EE-3F167AF18526-low.gifFigure 8-3 TPS65131 Efficiency vs Output Current

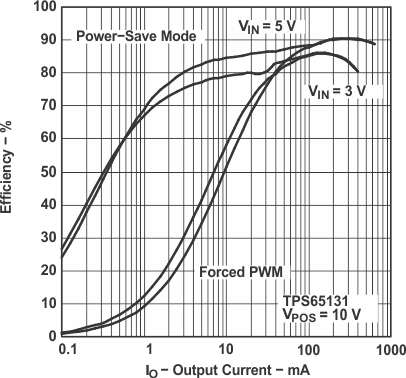

GUID-8F470F5C-3456-49A1-8A45-CFA3620C650A-low.gifFigure 8-5 TPS65131 Efficiency vs Output Current

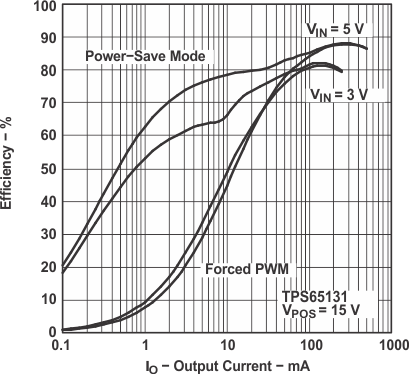

GUID-CD960F1A-FF9A-4B61-9FAF-E7347B2DB655-low.gifFigure 8-7 TPS65131 Efficiency vs Output Current

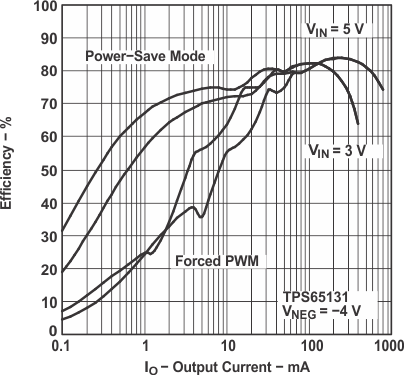

GUID-B64C9E07-F193-491C-AD93-BA09F2242BFB-low.gifFigure 8-9 TPS65131 Efficiency vs Output Current

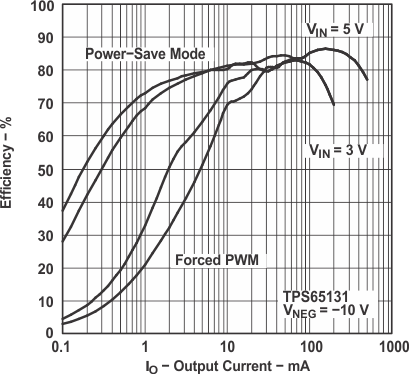

GUID-F598E439-0AE3-4F0C-9EEE-CFA114479726-low.gifFigure 8-11 TPS65131 Efficiency vs Output Current

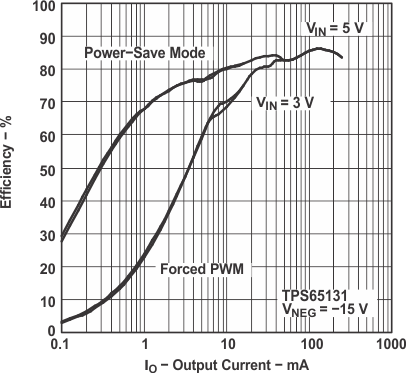

GUID-8554DC6F-E5FC-45E1-8C4F-FE086BD9B53E-low.gifFigure 8-13 TPS65131 Efficiency vs Output Current

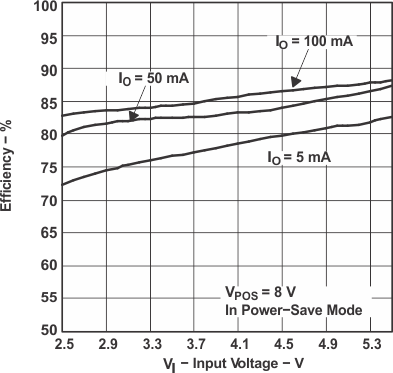

GUID-18DA3A1A-D982-41EF-851B-92F839333AA3-low.gifFigure 8-15 TPS65130 Efficiency vs Input Voltage

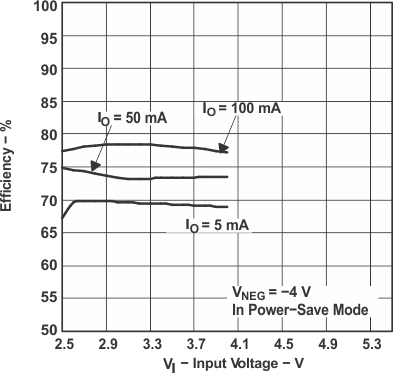

GUID-17314817-983D-431F-AD27-D03D6E189DCB-low.gifFigure 8-17 TPS65130 Efficiency vs Input Voltage

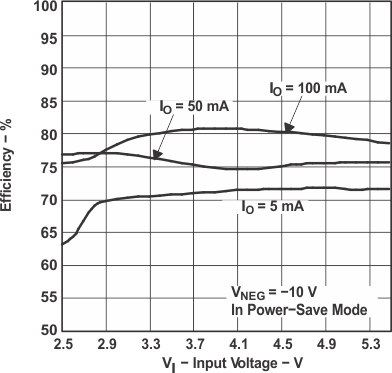

GUID-948A30CC-9833-4264-80CD-15CD699AA429-low.gifFigure 8-19 TPS65130 Efficiency vs Input Voltage

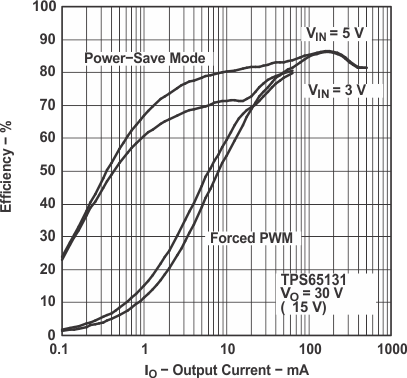

GUID-A7595B10-5939-4B3D-8BD0-20AF3F7968C7-low.gifFigure 8-21 TPS65131 Combined Efficiency vs Output Current
GUID-26776F98-0338-45E2-97C1-FFBFD9D82FE8-low.gifFigure 8-23 TPS65130 Output Voltage vs Output Current

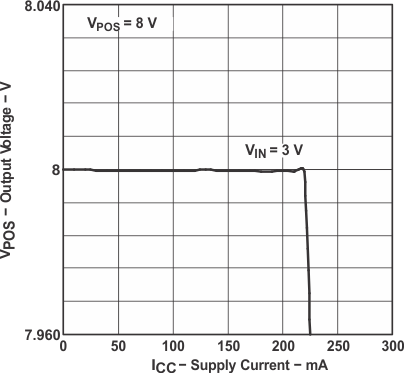

GUID-C3B24D73-5740-482A-9EEE-3C93AB8615E0-low.gifFigure 8-25 TPS65130 Output Voltage vs Output Current
GUID-901ACB49-225A-47A2-9739-F4FD49988707-low.gifFigure 8-27 TPS65130 Output Voltage vs Output Current

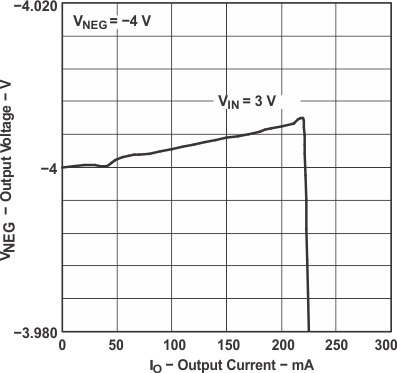

GUID-34AA32B1-BEC0-4C03-BD08-04BED74D5074-low.gifFigure 8-29 TPS65130 Output Voltage vs Output Current

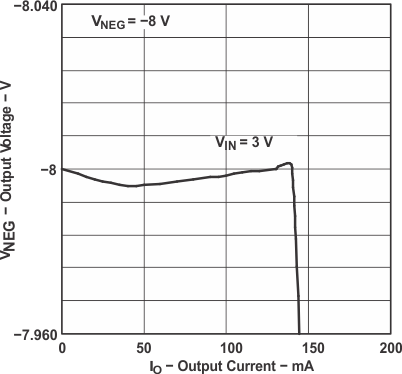

GUID-D6F86BD6-A85C-4559-9C78-8C1381F3B1FA-low.gifFigure 8-31 TPS65130 Output Voltage vs Output Current

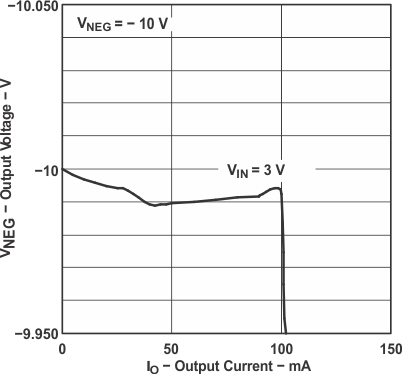

GUID-18D640DA-7D4B-4C79-AB52-54C9036C2F05-low.gifFigure 8-33 TPS65130 Output Voltage vs Output Current

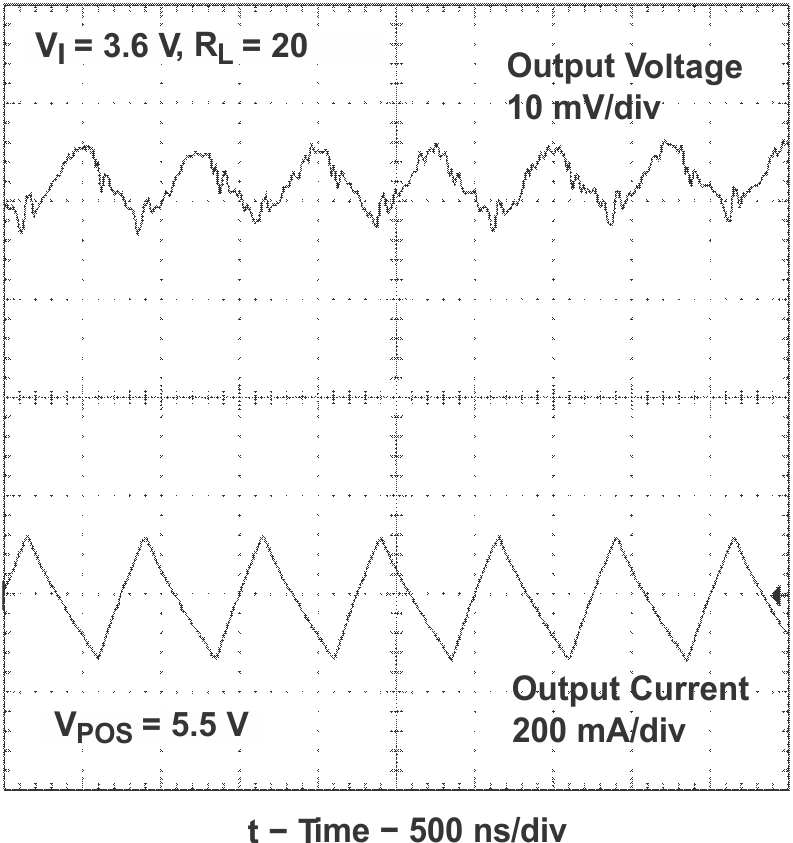

GUID-6C202ABB-856E-4972-90A0-3B923FE550DA-low.pngFigure 8-35 VPOS in Continuous Current Mode

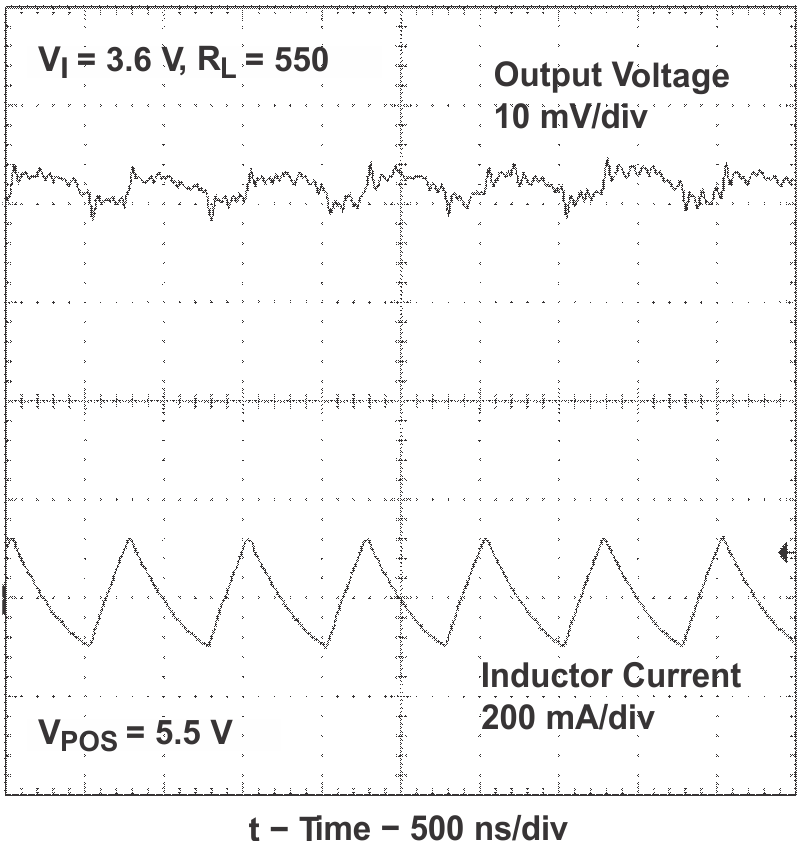

GUID-5C2FDB3B-E67E-443D-B814-078BF215039B-low.pngFigure 8-37 VPOS at Power-Save Mode Disabled
Figure 8-39 VPOS in Power-Save Mode
Figure 8-41 Load Transient Response
GUID-09CA27F4-F648-4CC1-880E-8703185ACBAA-low.pngFigure 8-43 Line Transient Response
Figure 8-45 Start-up After Enable
