8 Parameter Measurement Information

The graphs in this data sheet have been taken based on the schematic and BOM as listed in Table 8-1 if not otherwise mentioned in the plots.

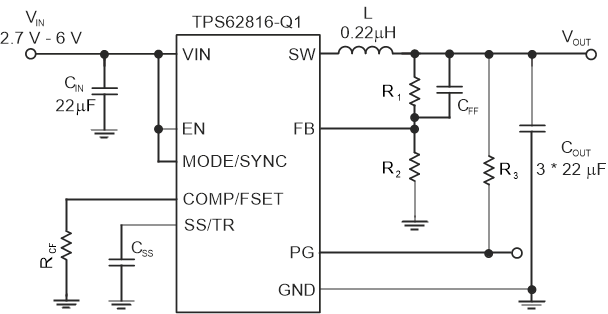

GUID-3EC61906-3D51-4BF1-88F2-37A02C87AD9A-low.gif Figure 8-1 Measurement Setup for TPS62816-Q1
Table 8-1 List of Components
REFERENCE DESCRIPTION MANUFACTURER (1)
IC TPS62816-Q1 Texas Instruments
L 0.25-µH inductor; XGL4020-251ME Coilcraft
CIN 22 µF / 10 V; GCM31CR71A226KE02L Murata
COUT for VOUT = 0.6 V 5 × 22 µF / 10 V; GCM31CR71A226KE02L Murata
COUT for VOUT ≥ 1 V 3 × 22 µF / 10 V; GCM31CR71A226KE02L Murata
CSS 15 nF (equal to 0.9-ms start-up ramp) any
RCF 8.06 kΩ any
CFF 10 pF any
R1 Depending on VOUT any
R2 Depending on VOUT any
R3 100 kΩ any
