ZHCSHS4 March 2018 TPS62243-Q1 , TPS62244-Q1
PRODUCTION DATA.
7.6 Typical Characteristics
Table 1. Table of Graphs
| FIGURE | ||
|---|---|---|
| Shutdown Current into VIN | vs Input Voltage | Figure 1 |
| Quiescent Current | vs Input Voltage | Figure 2 |
| Static Drain-Source On-State Resistance | vs Input Voltage | Figure 3 |
| Figure 4 | ||

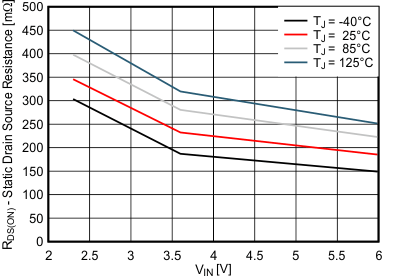

Figure 3. High Side Switch Static Drain-Source
On-State Resistance vs Input Voltage
Figure 2. Quiescent Current vs Input Voltage

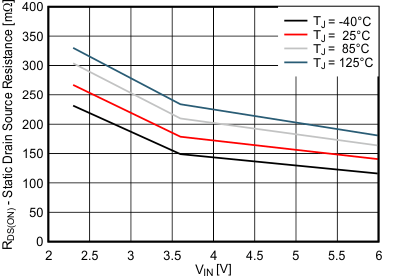

Figure 4. Low Side Switch Static Drain-Source
On-State Resistance vs Input Voltage
