6.8 Typical Characteristics Curves

TPS57112C-Q1 radson_tj_slvsah5c.gif
Figure 1. High-Side and Low-Side rDS(on) versus Temperature
TPS57112C-Q1 hi_cur_tj_SLVSAL8.gif
Figure 3. High-Side Current-Limit versus Temperature
TPS57112C-Q1 fs_RT_slvsah5c.gif
Figure 5. Switching Frequency versus Rt Resistance, Low-Frequency Range
TPS57112C-Q1 AE_tj_slvsah5c.gif
V(VIN) = 3.3 V
Figure 7. Transconductance versus Temperature
TPS57112C-Q1 thresh_tj_SLVSAH5.gif

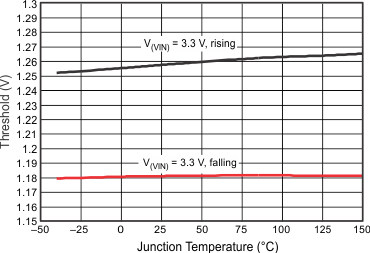

Figure 9. EN Pin Voltage versus Temperature
TPS57112C-Q1 EN2_pin_tj_slvsah5c.gif
V(VIN) = 5 V V(EN) = Threshold – 50 mV
Figure 11. EN Pin Current versus Temperature
TPS57112C-Q1 vi_tj_slvsah5c.gif
Figure 13. Input Voltage versus Temperature
TPS57112C-Q1 shutdwn_vi_slvsah5c.gif
TJ = 25ºC
Figure 15. Shutdown Supply Current versus Input Voltage
TPS57112C-Q1 Ivin_vi_slvsah5c.gif
TJ = 25ºC
Figure 17. VIN Supply Current versus Input Voltage
TPS57112C-Q1 RDSON_tj_slvsah5c.gif
V(VIN) = 5 V
Figure 19. PWRGD On-Resistance versus Temperature
TPS57112C-Q1 fs_tj_slvsah5c.gif
Rt = 400 kΩ V(VIN) = 5 V
Figure 2. Frequency versus Temperature
TPS57112C-Q1 vref_tj_slvsah5c.gif
V(VIN) = 3.3 V
Figure 4. Voltage Reference versus Temperature
TPS57112C-Q1 fs_vsense_slvsah5c.gif
Figure 6. Switching Frequency versus VSENSE
TPS57112C-Q1 SS_tj_slvsah5c.gif
V(VIN) = 3.3 V
Figure 8. Transconductance (Slow Start) versus Junction Temperature
TPS57112C-Q1 EN_pin_tj_slvsah5c.gif
V(VIN) = 5 V V(EN) = Threshold + 50 mV
Figure 10. EN Pin Current versus Temperature
TPS57112C-Q1 Iss_tj_slvsah5c.gif
V(VIN) = 5 V

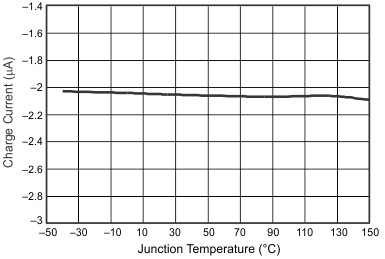

Figure 12. Charge Current versus Temperature
TPS57112C-Q1 shutdwn_tj_slvsah5c.gif
V(VIN) = 3.3 V
Figure 14. Shutdown Supply Current versus Temperature
TPS57112C-Q1 Ivin_tj_slvsah5c.gif
V(VIN) = 3.3 V
Figure 16. VIN Supply Current versus Junction Temperature
TPS57112C-Q1 PWRGD_tj_slvsah5c.gif
V(VIN) = 5 V

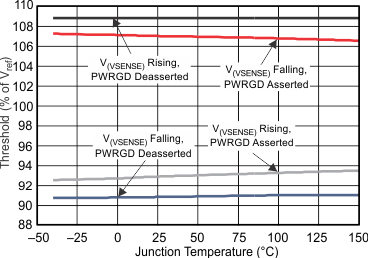

Figure 18. PWRGD Threshold versus Temperature
TPS57112C-Q1 SSTR_tj_slvsah5c.gif
V(VIN) = 5 V V(SS/TR) = 0.4 V
Figure 20. SS/TR-to-VSENSE Offset versus Temperature
