Simple Small Signal Model for Peak Current Mode Control

Figure 7-5 is a simple small signal model that can be used to understand how to design the frequency compensation. The device power stage can be approximated to a voltage controlled current source (duty cycle modulator) supplying current to the output capacitor and load resistor. The control to output transfer function is shown in Equation 5 and consists of a DC gain, one dominant pole and one ESR zero. The quotient of the change in switch current and the change in COMP pin voltage (node c in Figure 7-4) is the power stage transconductance (gmps) which is 16 A/V for the device. The DC gain of the power stage is the product of gmps and the load resistance RL) as shown in Equation 6 with resistive loads. As the load current increases, the DC gain decreases. This variation with load may seem problematic at first glance, but fortunately the dominant pole moves with load current (see Equation 7). The combined effect is highlighted by the dashed line in Figure 7-6. As the load current decreases, the gain increases and the pole frequency lowers, keeping the 0-dB crossover frequency the same for the varying load conditions which makes it easier to design the frequency compensation.

GUID-3B566C28-FA3B-4AF9-A0F3-ED3546C7F5D1-low.gifFigure 7-5 Simplified Small Signal Model for Peak Current Mode Control

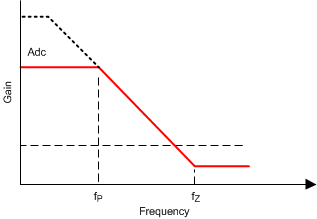

GUID-D9D8FC01-A4F2-41D3-AC0C-BCCBF0A380DA-low.gifFigure 7-6 Simplified Frequency Response for Peak Current Mode Control
Equation 5. GUID-66AA3BF1-4714-4989-827D-20375F5B3E23-low.gif
Equation 6. GUID-7327F2E0-B9AE-4C92-8259-E28E421C4DD5-low.gif

where

  • gmps is the power stage gain (16 A/V).
  • RL is the load resistance.
Equation 7. GUID-08381ED7-979C-40D3-BEE1-BFE8819F2906-low.gif

where

  • CO is the output capacitance.
  • RL is the load resistance.
Equation 8. GUID-AB40B109-A07A-41A6-97F8-F943BBB90583-low.gif

where

  • CO is the output capacitance.
  • RESR is the equivalent series resistance of the output capacitor.
