Typical Characteristics

At TJ = 25°C and VDD = 12 V, unless otherwise noted.
TPS3701 D001_sbvs240.gif
Figure 2. Supply Current vs Supply Voltage
TPS3701 D005_sbvs240.gifFigure 4. INA Positive Input Threshold Voltage (VIT+(INA)) vs Temperature
TPS3701 D004_sbvs240.gif

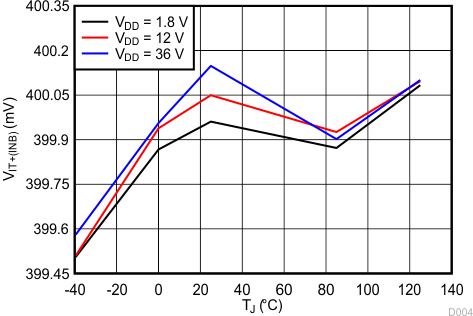

Figure 6. INB Positive Input Threshold Voltage (VIT+(INB)) vs Temperature
TPS3701 D022_sbvs240.gif
VDD = 1.8 V

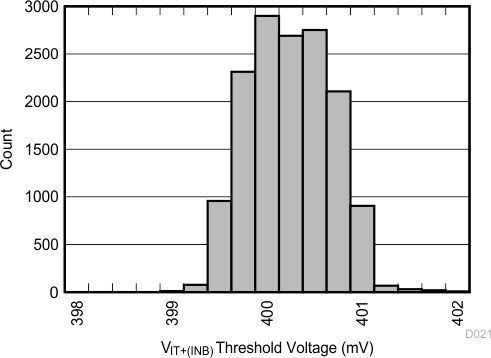

Figure 8. INA Positive Input Threshold Voltage (VIT+(INA)) Distribution
TPS3701 D021_sbvs240.gif
VDD = 1.8 V
Figure 10. INB Positive Input Threshold Voltage (VIT+(INB)) Distribution

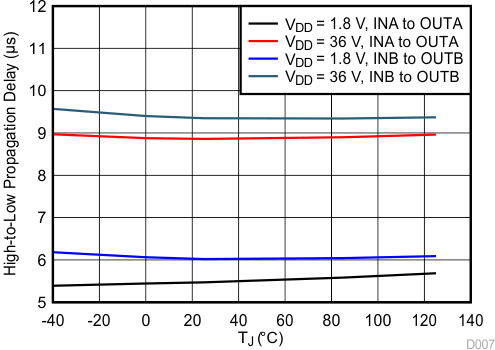

TPS3701 D007_sbvs240.gif
Input step ±200 mV
Figure 12. Propagation Delay vs Temperature
(High-to-Low Transition at the Inputs)
TPS3701 D009_sbvs240.gif
VDD = 1.8 V

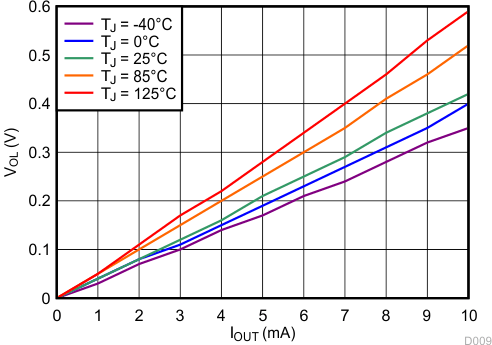

Figure 14. Output Voltage Low vs Output Sink Current
TPS3701 D025_sbvs240.gif
VDD = 5 V

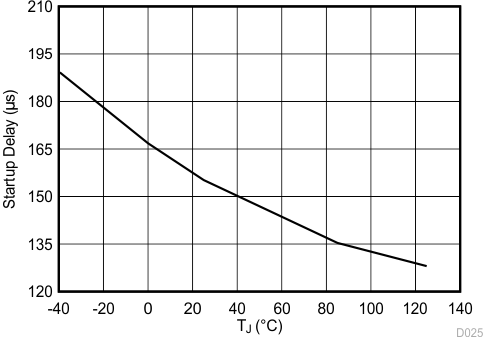

Figure 16. Start-Up Delay vs Temperature
TPS3701 StartupDelay4.gif
VDD = 5 V, VINA = 410 mV, VINB = 390 mV, VPULL-UP = 3.3 V
Figure 18. Start-Up Delay
TPS3701 D011_sbvs240.gif
VDD = 24 V

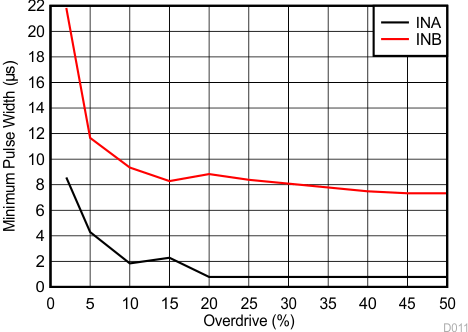

Figure 3. Minimum Pulse Duration vs
Threshold Overdrive Voltage(1)(1)
TPS3701 D002_sbvs240.gifFigure 5. INA Negative Input Threshold Voltage (VIT–(INA)) vs Temperature
TPS3701 D003_sbvs240.gif
Figure 7. INB Negative Input Threshold Voltage (VIT–(INB)) vs Temperature
TPS3701 D020_sbvs240.gif
VDD = 1.8 V

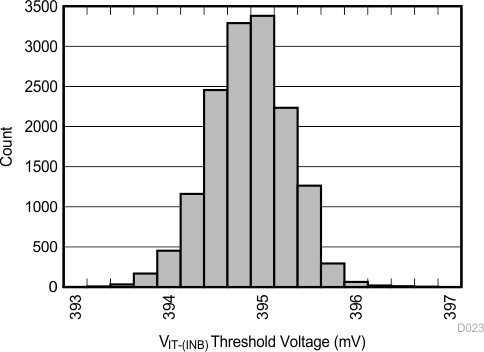

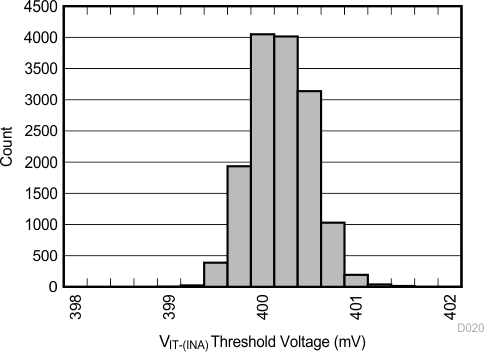

Figure 9. INA Negative Input Threshold Voltage (VIT–(INA)) Distribution
TPS3701 D023_sbvs240.gif
VDD = 1.8 V
Figure 11. INB Negative Input Threshold Voltage (VIT–(INB)) Distribution
TPS3701 D008_sbvs240.gif
Input step ±200 mV
Figure 13. Propagation Delay vs Temperature
(Low-to-High Transition at the Inputs)

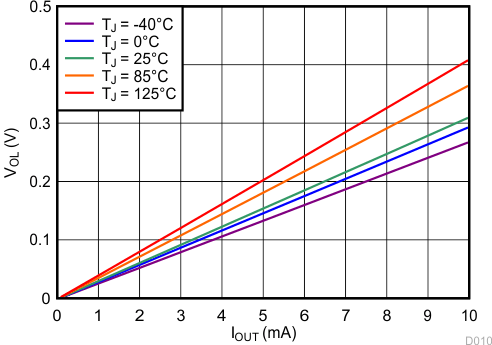

TPS3701 D010_sbvs240.gif
VDD = 12 V
Figure 15. Output Voltage Low vs Output Sink Current

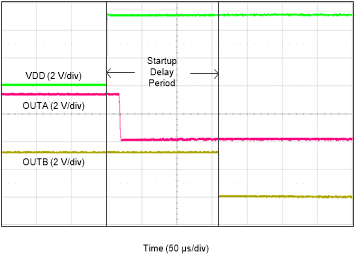

TPS3701 StartupDelay5.gif
VDD = 5 V, VINA = 390 mV, VINB = 410 mV, VPULL-UP = 3.3 V
Figure 17. Start-Up Delay
Minimum pulse duration required to trigger output high-to-low transition. INA = negative spike below VIT– and INB = positive spike above VIT+.
