Typical Characteristics

All the below data are based on the mean value of the three lots samples, VIN = 24 V if not specified.
TPS27S100 D001_SLVSCM2.gif
Figure 5. IN Pin Undervoltage Rising and Falling Thresholds VIN,UVR and VIN,UVF

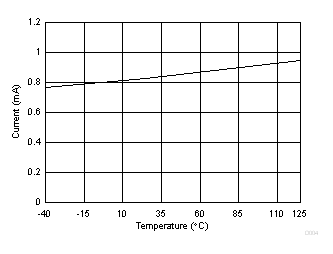

TPS27S100 D004_SLVSE42.gif
Figure 7. Ioff,diag as a Function of Temperature
TPS27S100 D006_SLVSE42.gif
Figure 9. Drain-to-source Diode Voltage VF
TPS27S100 D008_SLVSE42.gif

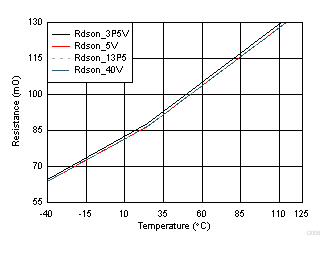

Figure 11. FET RDSON
TPS27S100 D010_SLVSE42.gif

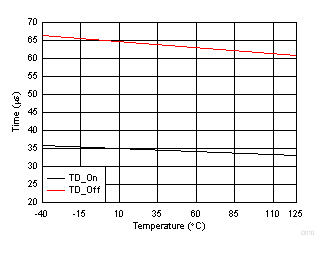

Figure 13. TDon and TDoff

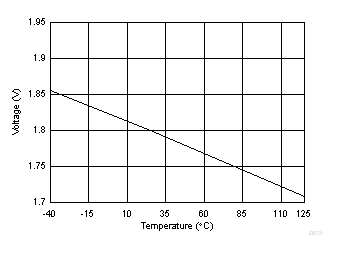

TPS27S100 D013_SLVSE42.gif
Figure 15. Vol,off

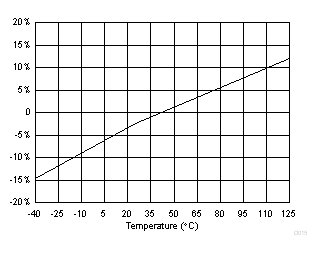

TPS27S100 D015_SLVSE42.gif
Figure 17. K(IMON) at IOUT = 5 mA, VIN = 24 V

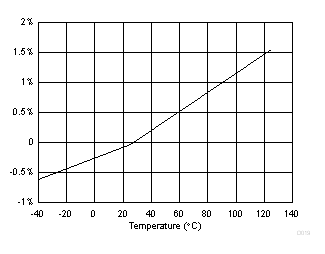

TPS27S100 D019_SLVSE42.gif
Figure 19. K(IMON) at IOUT = 50 mA, VIN = 24 V

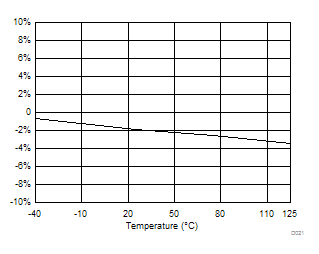

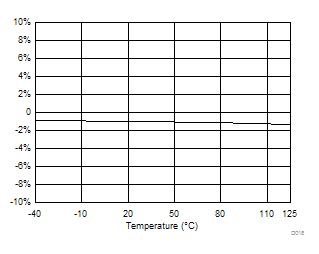

TPS27S100 D018_SLVSCM2.gif
Figure 21. K(IMON) at IOUT = 1 A, VIN = 24 V
TPS27S100 D021_SLVSCM2.gif
Figure 23. K(ILIM) at IILIM = 1.6 A, VIN = 24 V
TPS27S100 D002_SLVSE42.gif
Figure 6. Inom With No Load and 24-Ω Load

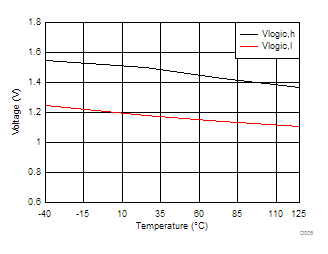

TPS27S100 D005_SLVSCM2.gif
Figure 8. Vlogic,h and Vlogic,l
TPS27S100 D007_SLVSCM2.gif
Figure 10. VDS, Clamp
TPS27S100 D009_SLVSE42.gif

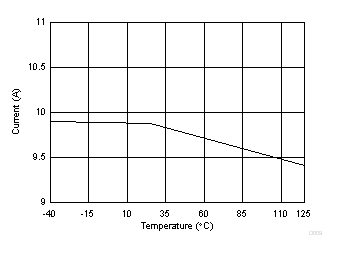

Figure 12. Current Limit Ilim,nom
TPS27S100 D011_SLVSE42.gif

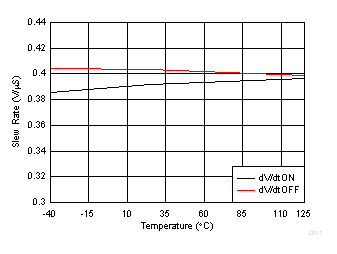

Figure 14. dV/dtON and dV/dtOFF
TPS27S100 D014_SLVSCM2.gif

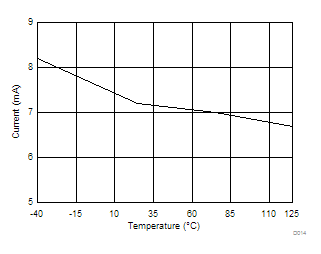

Figure 16. Iol,on
TPS27S100 D017_SLVSE42.gif
Figure 18. K(IMON) at IOUT = 25 mA, VIN = 24 V

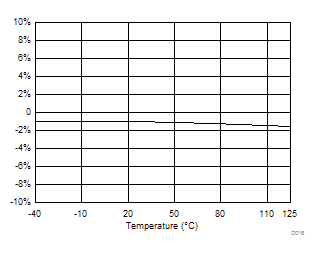

TPS27S100 D016_SLVSCM2.gif
Figure 20. K(IMON) at IOUT = 100 mA, VIN = 24 V
TPS27S100 D020_SLVSE42.gif

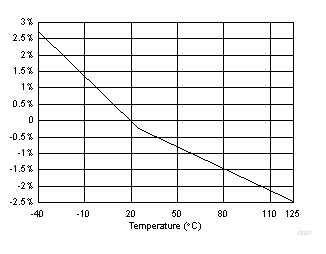

Figure 22. K(ILIM) at IILIM = 0.5 A, VIN = 24 V
