7 Parameter Measurement Information

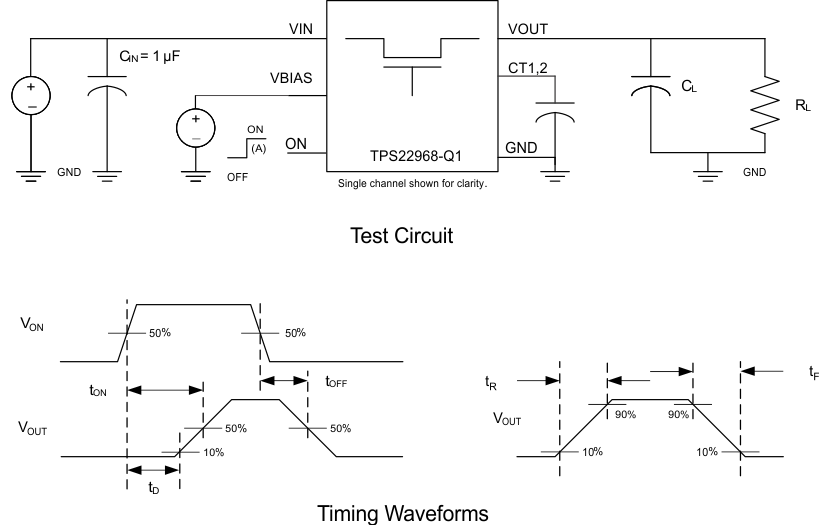

TPS22968-Q1 tst_cir_LVSCP7.gif
A. Rise and fall times of the control signal is 100 ns.
Figure 33. Test Circuit and Timing Waveforms
