10 Layout

10.1 Layout Guidelines

To ensure reliability of the device, follow common printed-circuit board (PCB) layout guidelines.

  • Leads to the input should be as direct as possible with a minimum conductor length.
  • The ground path should have low resistance and low inductance.
  • Use short trace-lengths to avoid excessive loading.
  • It is common to have a dedicated ground plane on an inner layer of the board.
  • Terminals that are connected to ground should have a low-impedance path to the ground plane in the form of wide polygon pours and multiple vias.
  • Use bypass capacitors on power supplies and placed them as close as possible to the VDD pin.
  • Apply low equivalent series resistance (0.1 µF to 10 µF tantalum or electrolytic capacitors) at the supplies to minimize transient disturbances and to filter low frequency ripple.
  • To reduce the total I2C bus capacitance added by PCB parasitics, data lines (SCL and SDA) should be as short as possible and the widths of the traces should also be minimized (for example, 5 to 10 mils depending on copper weight).

10.2 Layout Example

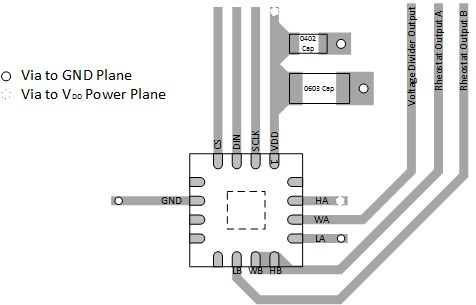

TPL0202 layout_slis135.gif Figure 30. Example Layout for RTE Package
