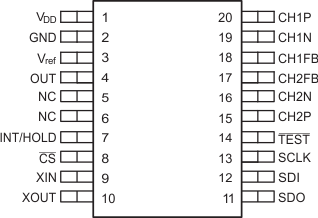

6 Pin Configuration and Functions

SOIC Package
(Top View)
TPIC8101 fpg_DW package_slis110.gif

Pin Functions

PIN TYPE
(PULLUP/PULLDOWN)		 DESCRIPTION
NAME NO.
VDD 1 I 5-V input supply
GND 2 I Ground connection
Vref 3 O Supply reference generator with external bypass capacitor
OUT 4 O Buffered integrator output
NC(1) 5 — No connection
6
INT/HOLD 7 I (pulldown) Selectable for integrate (high) or hold (low) mode (with internal pulldown)
CS 8 I (pullup) Chip select for SPI communications (active low with internal pullup)
XIN 9 I Inverter input for oscillator
XOUT 10 O Inverter output for oscillator
SDO 11 O Serial data output for SPI bus
SDI 12 I (pullup) Serial data input line
SCLK 13 I (pullup) SPI clock
TEST 14 I (pullup) Test mode (active low), open for normal operation
CH2P 15 I Positive input for amplifier 2
CH2N 16 I Negative input for amplifier 2
CH2FB 17 O Output of amplifier 2, for feedback connection
CH1FB 18 O Output of amplifier 1, for feedback connection
CH1N 19 I Negative input for amplifier 1
CH1P 20 I Positive input for amplifier 1
(1) These terminals are to be used for test purposes only and are not connected in the system application. No signal traces should be connected to the NC terminals.
