6.6 Typical Characteristics

TPD2E2U06 C002_SLLSEG9.png
Figure 1. TLP, Data to GND
TPD2E2U06 C004_SLLSEG9.png
Figure 3. IEC 61000-4-2 Clamping Voltage, +8 kV Contact
TPD2E2U06 C006_SLLSEG9.png
TA = 25°C
Figure 5. IV Curve
TPD2E2U06 C008_SLLSEG9.gif
f = 1 MHz
Figure 7. Capacitance Across VBIAS
TPD2E2U06 C010_SLLSEG9.png

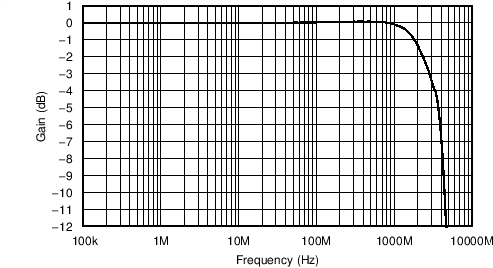

Figure 9. Insertion Loss
TPD2E2U06 C003_SLLSEG9.png
Figure 2. TLP, GND to Data
TPD2E2U06 C005_SLLSEG9.png
Figure 4. IEC 61000-4-2 Clamping Voltage, –8 kV Contact
TPD2E2U06 C007_SLLSEG9.gif
VIN 2.5 V

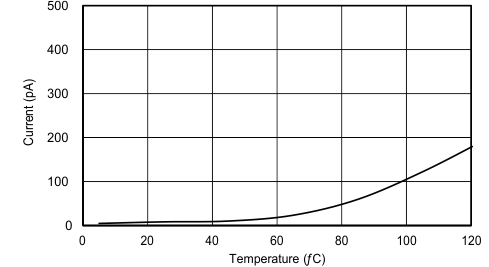

Figure 6. ILEAK vs Temperature
TPD2E2U06 C009_SLLSEG9.png

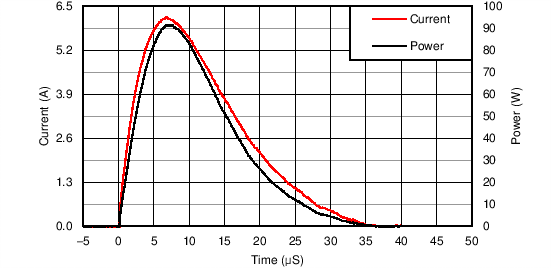

Figure 8. Surge Curve (tp = 8/20 μs) IO to GND
