Device Functional Modes

TPA3220 can be configured in either a stereo BTL (Bridge Tied Load) mode, mono BTL mode (only one output BTL channel active), or in a mono PBTL (Parallel Bridge Tied Load) mode. In PBTL mode the two output BTL channels are parallelled with double output current available. The parallelling of the two BTL outputs can be made either before the output LC filter, or after the output LC filter. For PBTL mode the audio performance will in general be higher when parallelling before the output LC filter, but parallelling after the LC output filter may be preferred in some systems.

See Table 1 for mode configuration setup.

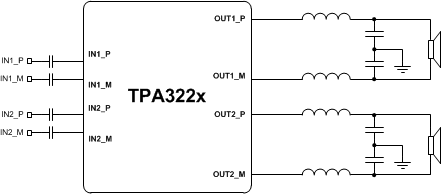

TPA3220 StereoBTL.gifFigure 43. Stereo BTL
TPA3220 MonoPrePBTL.gifFigure 45. Mono PBTL, Pre LC Filter

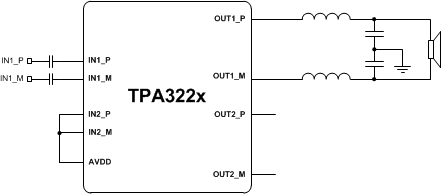

TPA3220 MonoBTL.gifFigure 44. Mono BTL
TPA3220 MonoPostPBTL.gifFigure 46. Mono PBTL, Post LC Filter
