Mono BTL Mode (Single Channel Mode)

The TPA3126D2 can be connected in mono BTL mode while cutting the idle power-loss nearly by half.

  • Connect RINP and RINN directly to Ground (without capacitors), so the device is set in mono BTL mode during power up.
  • Connect OUTPL to the positive speaker terminal, and OUTNL to the negative speaker terminal.
  • Analog input signal is applied to LINP and LINN.

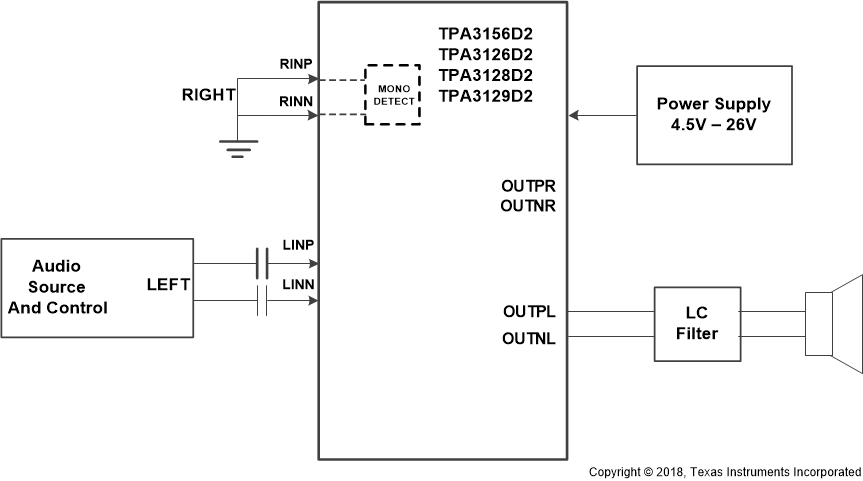

TPA3126D2 TPA3126D2_Mono_Mode.gifFigure 33. Mono BTL Mode
