Typical Characteristics

fs = 400 kHz, Hybrid Mode, TPA3126D2EVM Tested With AP2722. (unless otherwise noted)

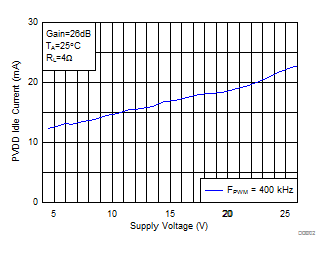

TPA3126D2 D002-SLOS992.gifFigure 1. Idle Current vs PVCC

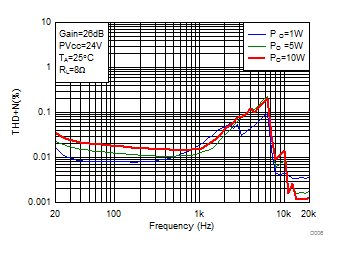

TPA3126D2 D006_SLOS941.gifFigure 3. Total Harmonic Distortion + Noise (BTL) vs Frequency

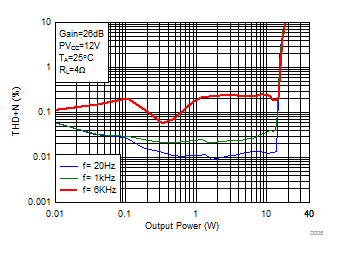

TPA3126D2 D008_SLOS941.gifFigure 5. Total Harmonic Distortion + Noise (BTL) vs Output Power

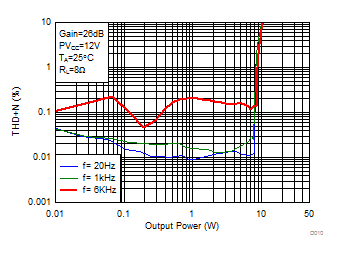

TPA3126D2 D010_SLOS941.gifFigure 7. Total Harmonic Distortion + Noise (BTL) vs Output Power

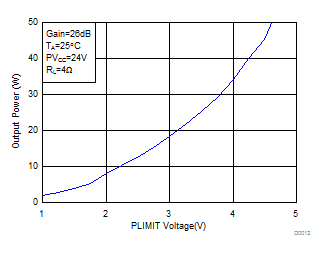

TPA3126D2 D012_SLOS941.gifFigure 9. Output Power (BTL) vs PLIMIT Voltage

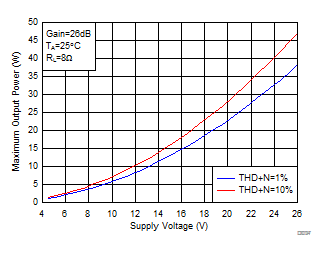

TPA3126D2 D014_SLOS941.gifFigure 11. Maximum Output Power (BTL) vs Supply Voltage

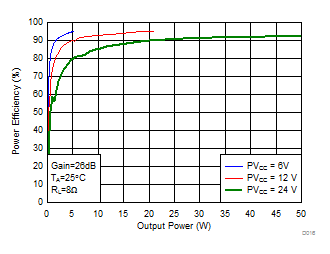

TPA3126D2 D016_SLOS941.gifFigure 13. Power Efficiency (BTL) vs Output Power

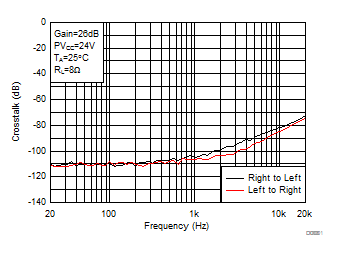

TPA3126D2 D001-SLOS992.gifFigure 15. Crosstalk vs Frequency

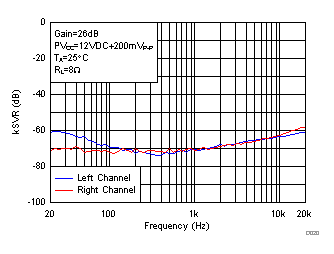

TPA3126D2 D020_SLOS941.gifFigure 17. Supply Ripple Rejection Ratio (BTL) vs Frequency

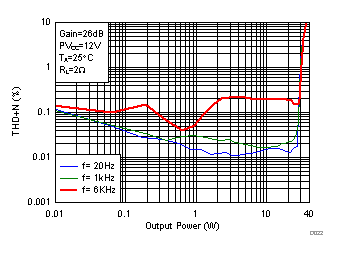

TPA3126D2 D022_SLOS941.gifFigure 19. Total Harmonic Distortion + Noise (PBTL) vs Output Power

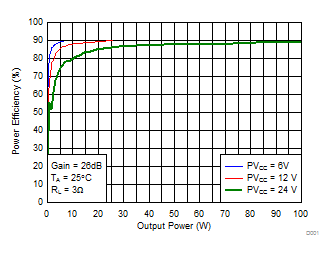

TPA3126D2 D001_SLOS942.gifFigure 21. Power Efficiency (PBTL) vs Output Power

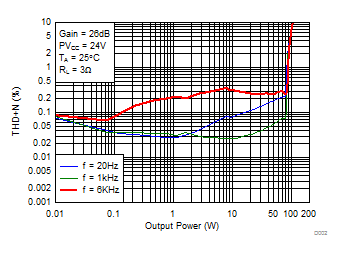

TPA3126D2 D0023_SLOS942.gifFigure 23. Total Harmonic Distortion + Noise (PBTL) vs Output Power
TPA3126D2 D005_SLOS941.gifFigure 2. Total Harmonic Distortion + Noise (BTL) vs Frequency

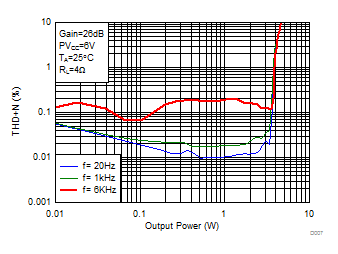

TPA3126D2 D007_SLOS941.gifFigure 4. Total Harmonic Distortion + Noise (BTL) vs Output Power
TPA3126D2 D009_SLOS941.gifFigure 6. Total Harmonic Distortion + Noise (BTL) vs Output Power

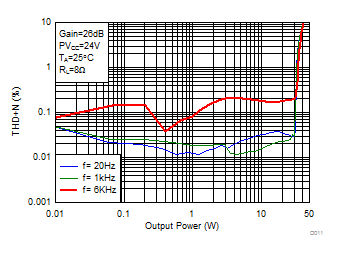

TPA3126D2 D011_SLOS941.gifFigure 8. Total Harmonic Distortion + Noise (BTL) vs Output Power

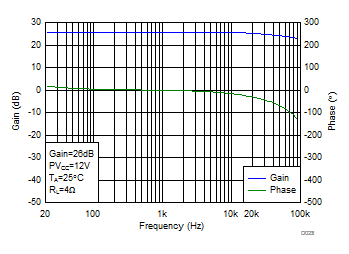

TPA3126D2 D013_SLOS941.gifFigure 10. Gain/Phase (BTL) vs Frequency
TPA3126D2 D015_SLOS941.gifFigure 12. Maximum Output Power (BTL) vs Supply Voltage
TPA3126D2 D017_SLOS941.gifFigure 14. Power Efficiency (BTL) vs Output Power

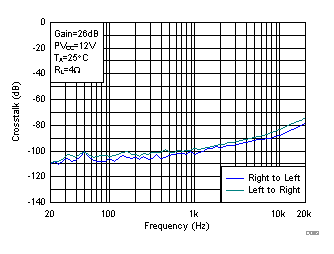

TPA3126D2 D019_SLOS941.gifFigure 16. Crosstalk vs Frequency

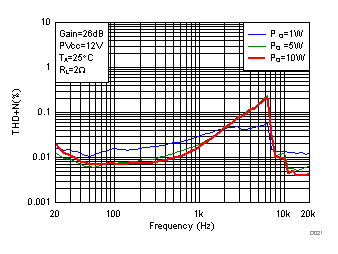

TPA3126D2 D021_SLOS941.gifFigure 18. Total Harmonic Distortion + Noise (PBTL) vs Frequency

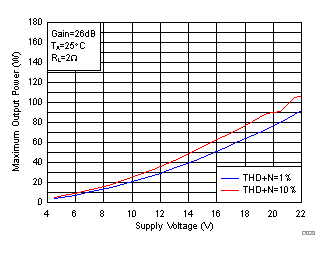

TPA3126D2 D023_updated_SLOS941.gifFigure 20. Maximum Output Power (PBTL) vs Supply Voltage

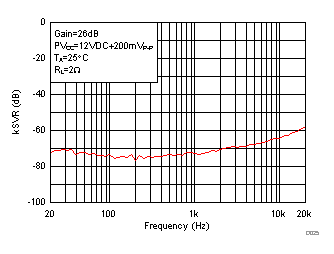

TPA3126D2 D025_SLOS941.gifFigure 22. Supply Ripple Rejection Ratio (PBTL) vs Frequency

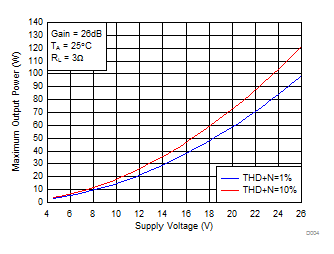

TPA3126D2 D004_SLOS942.gifFigure 24. Maximum Output Power (PBTL) vs Supply Voltage
