tON (VDD) Time

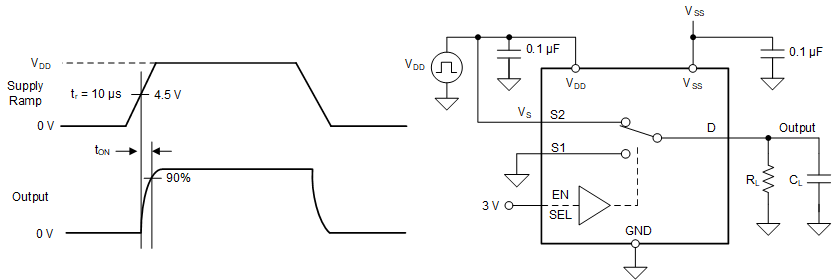

The tON (VDD) time is defined as the time taken by the output of the device to rise to 90% after the supply has risen past the supply threshold. The 90% measurement is used to provide the timing of the device turning on in the system. Figure 7-7 shows the setup used to measure turn on time, denoted by the symbol tON (VDD).

GUID-20201206-CA0I-XCJF-VM3Q-D7LBC81NT2GD-low.gif Figure 7-7 tON (VDD) Time Measurement Setup
