6.14 Typical Characteristics

at TA = 25°C


Figure 6-1 On-Resistance vs Source or Drain Voltage – Dual Supply

Figure 6-3 On-Resistance vs Source or Drain Voltage – Single Supply
VDD = 15 V, VSS = -15 V
Figure 6-5 On-Resistance vs Temperature
VDD = 12 V, VSS = 0 V
Figure 6-7 On-Resistance vs Temperature
VDD = 20 V, VSS = -20 V
Figure 6-9 Leakage Current vs Temperature
VDD = 36 V, VSS = 0 V
Figure 6-11 Leakage Current vs Temperature

Figure 6-13 Supply Current vs Logic Voltage

Figure 6-15 Charge Injection vs Drain Voltage – Dual Supply

Figure 6-17 Charge Injection vs Drian Voltage – Single Supply
VDD = 44 V, VSS = 0 V
Figure 6-19 TTRANSITION vs Temperature
VDD = 44 V, VSS = 0 V
Figure 6-21 TON and TOFF vs Temperature
Switch ON (EN = 1)
Figure 6-23 Crosstalk vs Frequency

Figure 6-25 THD+N vs Frequency (Dual Supply)
VDD = 15 V, VSS = -15 V
Figure 6-27 On Response vs Frequency
VDD = +15 V, VSS = -15 V
Figure 6-29 Capacitance vs Source Voltage or Drain Voltage

Figure 6-2 On-Resistance vs Source or Drain Voltage – Dual Supply

Figure 6-4 On-Resistance vs Source or Drain Voltage – Single Supply
VDD = 20 V, VSS = -20 V
Figure 6-6 On-Resistance vs Temperature
VDD = 36 V, VSS = 0 V
Figure 6-8 On-Resistance vs Temperature
VDD = 15 V, VSS = -15 V
Figure 6-10 Leakage Current vs Temperature
VDD = 12 V, VSS = 0 V
Figure 6-12 Leakage Current vs Temperature

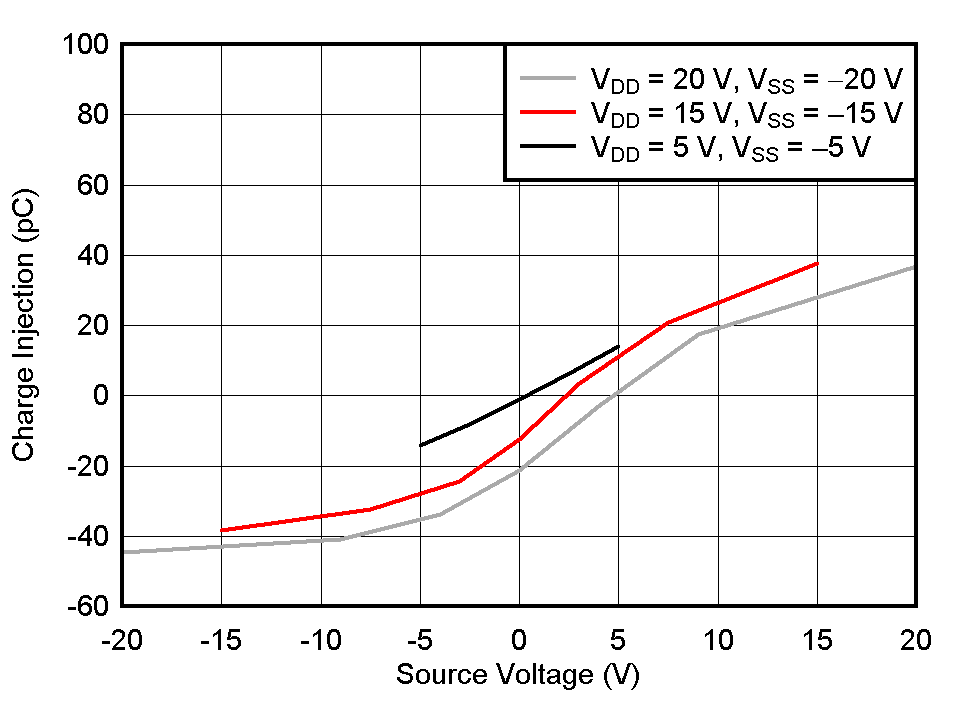

Figure 6-14 Charge Injection vs Source Voltage – Dual Supply

Figure 6-16 Charge Injection vs Source Voltage – Single Supply
VDD = 15 V, VSS = -15 V
Figure 6-18 TTRANSITION vs Temperature
VDD = 15 V, VSS = -15 V
Figure 6-20 TON and TOFF vs Temperature

Figure 6-22 Off-Isolation vs Frequency
Switch OFF (EN = 0)
Figure 6-24 Crosstalk vs Frequency

Figure 6-26 THD+N vs Frequency (Single Supply)
VDD = +15 V, VSS = -15 V
Figure 6-28 ACPSRR vs Frequency
VDD = 12 V, VSS = 0 V
Figure 6-30 Capacitance vs Source Voltage or Drain Voltage
