Pin Configuration and Functions

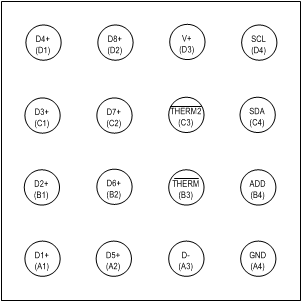

TMP468 YFF Package
16-Pin DSBGA
Bottom View
TMP468 PinOut_01_YFF_SBOS762.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
ADD B4 Digital input Address select. Connect to GND, V+, SDA, or SCL.
D1+ A1 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D2+ B1 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D3+ C1 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D4+ D1 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D5+ A2 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D6+ B2 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D7+ C2 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D8+ D2 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D– A3 Analog input Negative connection to remote temperature sensors. Common for 8 remote channels.
GND A4 Ground Supply ground connection
SCL D4 Digital input Serial clock line for I2C- or SMBus compatible two-wire interface.
Requires a pullup resistor to a voltage between 1.7 V and 3.6 V (not necessarily V+) if driven by an open-drain output.
SDA C4 Bidirectional digital input/output Serial data line for I2C or SMBus compatible two-wire interface. Open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V, not necessarily V+.
THERM B3 Digital output Thermal shutdown or fan-control pin.
Active low; open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V, not necessarily V+. If this pin is not used it may be left open or grounded.
THERM2 C3 Digital output Second THERM output.
Active low; open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V, not necessarily V+. If this pin is not used it may be left open or grounded.
V+ D3 Power supply Positive supply voltage, 1.7 V to 3.6 V; requires 0.1-µF bypass capacitor to ground.
TMP468 RGT Package
16-Pin VQFN
Top View
TMP468 TMP468_RTE_pinout.gif
NC - No internal connection

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
ADD 9 Digital input Address select. Connect to GND, V+, SDA, or SCL.
D1+ 6 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D2+ 5 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D3+ 4 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D4+ 3 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D5+ 2 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D6+ 1 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D7+ 16 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D8+ 15 Analog input Positive connection to remote temperature sensors. A total of 8 remote channels are supported. An unused channel must be connected to D–.
D– 7 Analog input Negative connection to remote temperature sensors. Common for 8 remote channels.
GND 8 Ground Supply ground connection
SCL 13 Digital input Serial clock line for I2C or SMBus-compatible two-wire interface.
Requires a pullup resistor to a voltage between 1.7 V and 3.6 V (not necessarily V+) if driven by an open-drain output.
SDA 12 Bidirectional digital input/output Serial data line for I2C- or SMBus-compatible two-wire interface. Open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V, not necessarily V+.
THERM 10 Digital output Thermal shutdown or fan-control pin.
Active low; open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V, not necessarily V+. If this pin is not used it may be left open or grounded.
THERM2 11 Digital output Second THERM output.
Active low; open-drain; requires a pullup resistor to a voltage between 1.7 V and 3.6 V, not necessarily V+. If this pin is not used it may be left open or grounded.
V+ 14 Power supply Positive supply voltage, 1.7 V to 3.6 V; requires 0.1-µF bypass capacitor to ground.
