Timing Diagrams

The TMP43x are Two-Wire and SMBus-compatible. Figure 13 to Figure 17 describe the various operations on the TMP43x. Parameters for Figure 13 are defined in Figure 14. Bus definitions are given below:

Bus Idle: Both SDA and SCL lines remain high.

Start Data Transfer: A change in the state of the SDA line from high to low when the SCL line is high defines a START condition. Each data transfer is initiated with a START condition.

Stop Data Transfer: A change in the state of the SDA line from low to high when the SCL line is high defines a STOP condition. Each data transfer terminates with a STOP or a repeated START condition.

Data Transfer: The number of data bytes transferred between a START and a STOP condition is not limited and is determined by the master device. The receiver acknowledges the transfer of data.

Acknowledge: Each receiving device, when addressed, is obliged to generate an Acknowledge bit. A device that acknowledges must pull down the SDA line during the Acknowledge clock pulse in such a way that the SDA line is stable low during the high period of the Acknowledge clock pulse. Setup and hold times must be taken into account. On a master receive, data transfer termination can be signaled by the master generating a Not-Acknowledge on the last byte that has been transmitted by the slave.

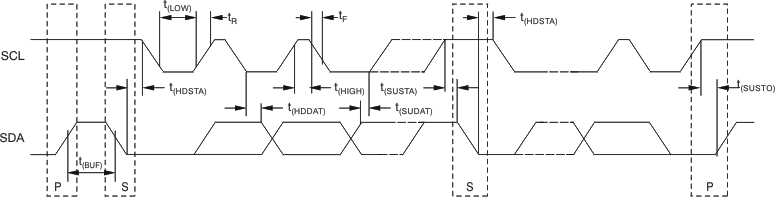

TMP431 TMP432 ai_tim_two-wire_bos441.gifFigure 13. Two-Wire Timing Diagram
TMP431 TMP432 ai_tim_two-wire_write_bos441.gif
Slave address 1001100 (TMP431A, 32A, and 31C) shown. Slave address changes for TMP431B, 32B, and 31D. See 机械、封装和可订购信息 for more details.
Figure 14. Two-Wire Timing Diagram for Write Word Format
TMP431 TMP432 ai_tim_two-wire_one_read_bos441.gif
Slave address 1001100 (TMP431A, 32A, and 31C) shown. Slave address changes for TMP431B, 32B, and 31D. See 机械、封装和可订购信息 for more details.
Master must leave SDA high to terminate a single-byte read operation.
Figure 15. Two-Wire Timing Diagram for Single-Byte Read Format

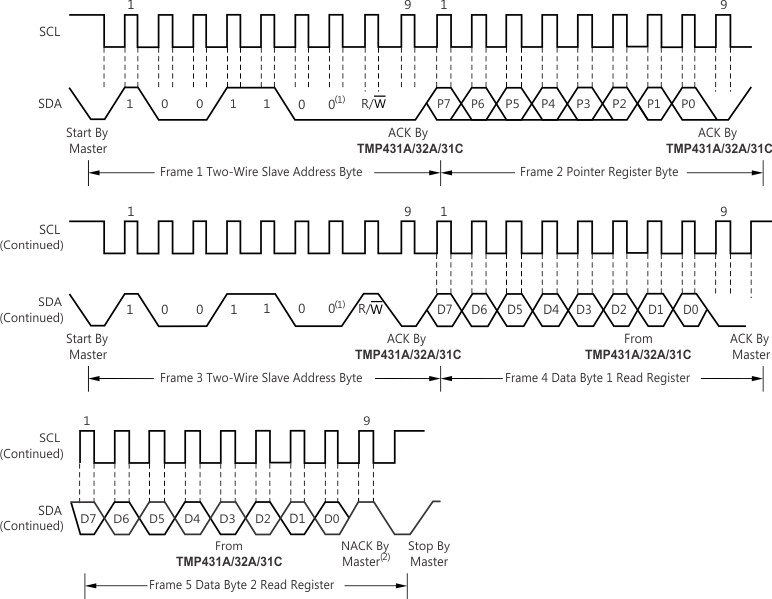

TMP431 TMP432 ai_tim_two-wire_two_read_bos441.gif
Slave address 1001100 (TMP431A, 32A, and 31C) shown. Slave address changes for TMP431B, 32B, and 31D. See 机械、封装和可订购信息 for more details.
Master must leave SDA high to terminate a two-byte read operation.
Figure 16. Two-Wire Timing Diagram for Two-Byte Read Format

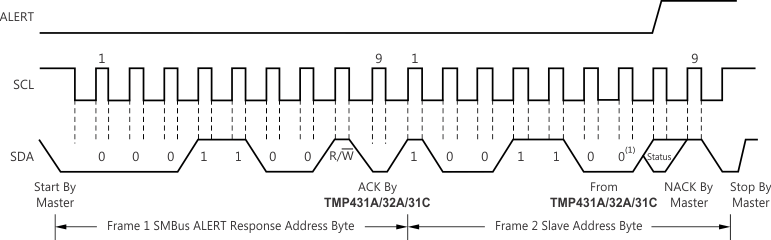

TMP431 TMP432 ai_tim_smbus_alert_bos441.gif
Slave address 1001100 (TMP431A, 32A, and 31C) shown. Slave address changes for TMP431B, 32B, and 31D. See 机械、封装和可订购信息 for more details.
Figure 17. Timing Diagram for SMBus ALERT
