Typical Characteristics

At TA = 25°C and V+ = 3.3 V, unless otherwise noted.

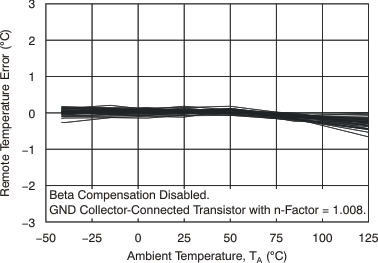

TMP431 TMP432 tc_new_temp_err_rem_temp_bos441.gifFigure 1. Remote Temperature Error vs Temperature
TMP431 TMP432 tc_new_temp_err_rem_leak_bos441.gifFigure 3. Remote Temperature Error vs Leakage Resistance
TMP431 TMP432 tc_new_iq_shutdown_fqcy_scl_bos441.gifFigure 5. Shutdown Quiescent Current
vs SCL Clock Frequency
TMP431 TMP432 tc_new_rem_temp_err_v_series_r_bos441.gifFigure 7. Remote Temperature Error vs Series Resistance

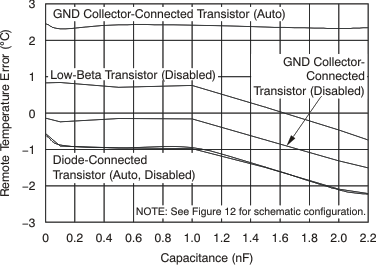

TMP431 TMP432 tc_new_temp_err_rem_diff_cap_bos441.gif
At 25°C, V+ = 3.3 V, RS = 0 Ω
Figure 9. Remote Temperature Error
vs Differential Capacitance
TMP431 TMP432 tc_new_temp_err_local_temp_bos441.gifFigure 2. Local Temperature Error vs Temperature
TMP431 TMP432 tc_new_iq_conv_rate_bos441.gifFigure 4. Quiescent Current vs Conversion Rate
TMP431 TMP432 tc_new_iq_shutdown_vs_bos441.gifFigure 6. Shutdown Quiescent Current vs Supply Voltage
TMP431 TMP432 tc_new_temp_err_rem_rs_lobeta_bos441.gifFigure 8. Remote Temperature Error vs Series Resistance
(Low-Beta Transistor)
TMP431 TMP432 tc_new_temp_err_rem_diff_cap_45_bos441.gif
At 25°C, V+ = 3.3 V, RS = 0 Ω, Beta = 011 (AUTO)
Figure 10. Remote Temperature Error
vs Differential Capacitance With 45-nm CPU
