8.2.4 One Channel Operation for Warm Trip Point from 30°C up to 105°C

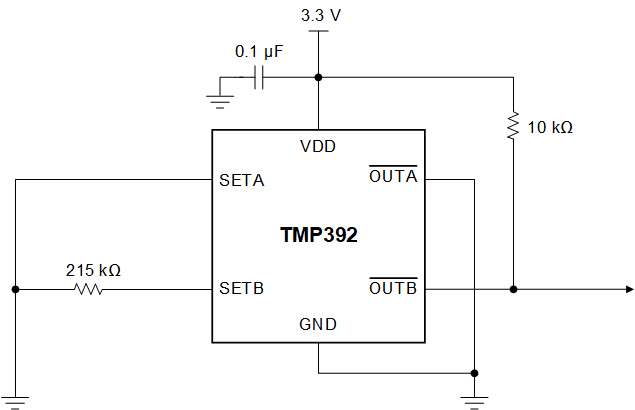

Figure 15 shows the TMP392 configured for one channel operation, with a single resistor to set the warm trip point and hysteresis. The resistor values for one channel warm trip point is same as described in Table 2.

TMP392 TMP392-outb-channel-example-SBOS904.gifFigure 15. TMP392 One Channel (Warm) Operation Example Circuit With 55°C Trip Point and 10°C Hysteresis
