Electrical Characteristics

At VCC = VR = 2.8 V, VG/B = 3.8 V and TA = –40°C to +85°C; Typical values are at TA = 25°C (unless otherwise specified)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
VCCDevice supply voltage2.55.5V
VUVRUndervoltage restartVCC rising2.3V
VUVFUndervoltage shutdownVCC falling2.0V
VUV(HYS)Undervoltage shutdown hysteresis0.1V
ICCDevice supply currentSCLK/SIN = 10 MHz, MPSM_EN = 1bit, Matrix PSM enable, internal GCLK off, GSn = 0000h, BC = 2h, CCR/G/B = 63h, PS_EN= 1h, VOUTn = floating, RIREF = 7.8 kΩ (In intelligent power save mode)0.9mA
SCLK/SIN = 10 MHz, Standby enable, internal GCLK off, GSn = 0000h, BC = 2h, CCR/G/B = 63h, PS_EN= 1h, VOUTn = floating, RIREF = 7.8 kΩ (In intelligent power save mode)0.9mA
SCLK/SIN = 10 MHz, PSP_MOD = 1bit, internal GCLK=50MHz, GSn = 0000h, BC = 2h, CCR/G/B = 63h, PS_EN= 1h, VOUTn = floating, RIREF = 7.8 kΩ (In power save mode)3.6mA
SCLK = 10 MHz, internal GCLK = 50 MHz, GSn = 1FFFh, BC = 2h, CCR/G/B = 63h,VOUTn = floating, RIREF = 7.8 kΩ, ICH = 2 mA3.6mA
SCLK = 10 MHz, internal GCLK = 100 MHz, GSn = 1FFFh, BC = 2h, CCR/G/B = 63h, VOUTn = floating, RIREF = 7.8 kΩ, ICH = 2 mA4.9mA
VR/G/BLED supply voltage2.55.5V
VIHHigh level input voltage (SCLK, SIN)0.7 × VCCV
VILLow level input voltage (SCLK, SIN)0.3 × VCCV
VOHHigh level output voltage (SOUT)IOH = –2 mA at SOUTVCC-0.4VCCV
VOLLow level output voltage (SOUT)IOL = 2 mA at SOUT0.4V
ILOGICLogic pin current (SCLK, SIN)SCLK/SIN = VCC or GND-11uA
RDS(ON)Scan switches' on-state resistance (LINE0 to LINE15)VCC = 2.8 V, TA= 25°C190mΩ
VIREFReference voltageSCLK/SIN = GND, internal GCLK= 0MHz, GSn = 0000h, BC = 2h, CCR/G/B = 63h, VOUTn = floating, RIREF = 7.8 kΩ0.8V
VKNEEChannel knee voltage (R0-R15 / G0-G15 / B0-B15)VLEDR/G/B ≥ 2.8 V, all channel outputs on, output current at 1 mA0.25V
VLEDR/G/B ≥ 2.8 V, all channel outputs on, output current at 5 mA0.26V
VLEDR/G/B ≥ 2.8 V, all channel outputs on, output current at 10 mA0.3V
VLEDR/G/B ≥ 2.8 V, IMAX = 1b, all channel outputs on, output current at 15 mA0.37V
VLEDR/G/B ≥ 2.8 V, IMAX=1b, all channel outputs on, output current at 20 mA0.41V
ICH(LKG)Channel leakage current (R0-R15 / G0-G15 / B0-B15)Channel voltage at 0 V1uA
ΔIERR(CC) Constant-current channel to channel deviation (R0-R15 / G0-G15 / B0-B15)(1)All CHn = on, BC = 00h, CC = 31h, VOUTn = (VLED-1)V, RIREF = 19.05 kΩ (ICH = 0.2-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±1±2.5%
All CHn = on, BC = 00h, CC = 7Dh, VOUTn = (VLED-1)V, RIREF = 19.05 kΩ (ICH = 0.5-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±1.5%
All CHn = on, BC = 00h, CC = FBh, VOUTn = (VLED-1)V, RIREF = 19.05 kΩ (ICH = 1-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±1.5%
All CHn = on, BC = 2h, CC = FBh, VOUTn = (VLED-1)V, RIREF = 7.8 kΩ (ICH = 5-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±2%
All CHn = on, BC = 6h, CC = A7h, VOUTn = (VLED-1)V, RIREF = 7.8 kΩ (ICH = 10-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±2%
All CHn = on, BC = 7h, CC = FBh, IMAX=1b, VOUTn = (VLED-1)V, RIREF = 6.8 kΩ (ICH = 20-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±2.5%
ΔIERR(DD) Constant-current device to device deviation (R0-R15 / G0-G15 / B0-B15)(2)All CHn = on, BC = 00h, CC = 31h, VOUTn = (VLED-1)V, RIREF = 19.05 kΩ (ICH = 0.2-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±1±2.5%
All CHn = on, BC = 00h, CC = 7Dh, VOUTn = (VLED-1)V, RIREF = 19.05 kΩ (ICH = 0.5-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±1.5%
All CHn = on, BC = 00h, CC = FBh, VOUTn = (VLED-1)V, RIREF = 19.05 kΩ (ICH = 1-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±1%
All CHn = on, BC = 2h, CC = FBh, VOUTn = (VLED-1)V, RIREF = 7.8 kΩ (ICH = 5-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±1.5%
All CHn = on, BC = 6h, CC = A7h, VOUTn = (VLED-1)V, RIREF = 7.8 kΩ (ICH = 10-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±2%
All CHn = on, BC = 7h, CC = FBh, IMAX=1b, VOUTn = (VLED-1)V, RIREF = 6.8 kΩ (ICH = 20-mA target), TA = 25°C, includes the VIREF tolerance, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±0.5±2%
ΔIREG(LINE)Line regulation (R0-R15 / G0-G15 / B0-B15)(3)VLED = 2.5 to 5.5 V, All CHn = on, VOUTn = (VLED-1)V, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±1%/V
ΔIREG(LOAD)Load regulation (R0-R15 / G0-G15 / B0-B15)(4)VOUTn = (VLED-1)V to (VLED-3)V, VR=VG/B=VLED = 3.8 V, All CHn = on, at same color grouped outputs of R0-R15 / G0-G15 / B0-B15±1%/V
TTSDThermal shutdown threshold170°C
THYSThermal shutdown hysteresis15°C

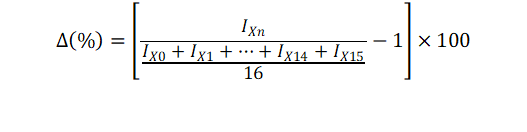

The deviation of each output in same color group (OUTR0-15 or OUTG0-15 or OUTB0-15) from the average of same color group constant current. The deviation is calculated by the formula. (X = R or G or B, n = 0-15) GUID-682E8661-E828-41AB-94F5-D831E13928EE-low.gif

The deviation of the average of constant-current in each color group from the ideal constant-current value. (X = R or G or B) :
GUID-86007FE3-078D-4E50-AC8A-94F672EB7339-low.gif Ideal current is calculated by the following equation: GUID-A3F3025E-DE5E-47D7-9000-3E84156D3499-low.gif

Line regulation is calculated by the following equation. (X = R or G or B, n = 0-15):
% V = I X n   a t   V L E D = 5.5   V - I X n   a t   V L E D = 2.5   V I X n   a t   V L E D = 2.5   V × 100 5.5   V - 2.5   V
Load regulation is calculated by the following equation. (X = R or G or B, n = 0-15): %V=IXn at VXn=1 V-IXn at VXn=3 VIXn at VXn=3 V×1003 V-1 V
