7 Parameter Measurement Information
7.1 Terminal-Equivalent Input and Output Schematic Diagrams
Figure 12. SIN, SCLK, LAT, GSCLK
Figure 13. SOUT
1. X = R, G, or B; n = 0 to 15.
Figure 14. OUTX0 Through OUTX157.2 Test Circuits
1. X = R, G, or B; n = 0 to 15.
2. CL includes measurement probe and jig capacitance.
Figure 15. Rise Time and Fall Time Test Circuit for OUTXn
1. CL includes measurement probe and jig capacitance.
Figure 16. Rise Time and Fall Time Test Circuit for SOUT
1. X = R, G, or B; n = 0 to 15.
Figure 17. Constant-Current Test Circuit for OUTXn7.3 Timing Diagrams
1. Input pulse rise and fall time is 1 ns to 3 ns.

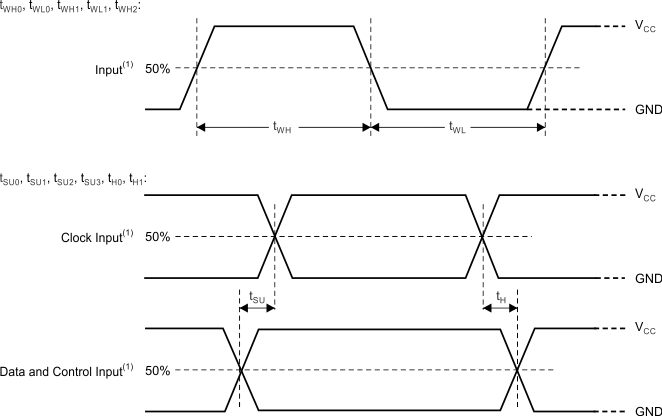

Figure 18. Input Timing
1. Input pulse rise and fall time is 1 ns to 3 ns.
2. X = R, G, or B; n = 0 to 15.

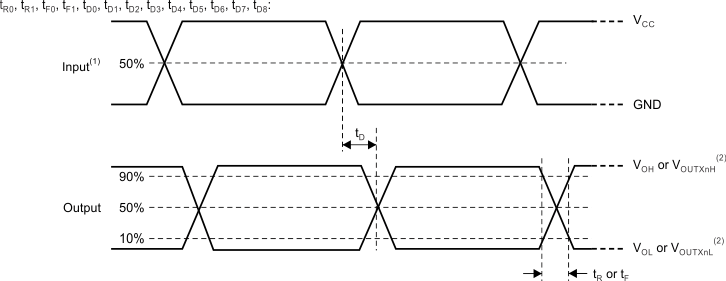

Figure 19. Output Timing
Figure 20. Data Input, Output, and Constant Output Timing
