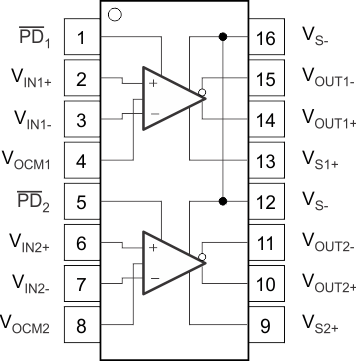

6 Pin Configuration and Functions

PW Package
16-Pin TSSOP
Top View
THS4532 po_los829.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
PD1 1 Power-down 1, PD = logic low = low power mode, PD = logic high = normal operation
(PIN MUST BE DRIVEN)
PD2 5 Amplifier 2 Power-down, PD = logic low = low power mode, PD = logic high = normal operation
(PIN MUST BE DRIVEN)
VIN1+ 2 I Noninverting amplifier 1 input
VIN1- 3 I Inverting amplifier 1 input
VIN2+ 6 I Noninverting amplifier 2 input
VIN2- 7 I Inverting amplifier 2 input
VOCM1 4 I Common-mode voltage input 1
VOCM2 8 I Common-mode voltage input 2
VOUT1+ 14 O Noninverting amplifier 1 output
VOUT1- 15 O Inverting amplifier 1 output
VOUT2+ 10 O Noninverting amplifier 2 output
VOUT2- 11 O Inverting amplifier 2 output
VS- 12, 16 I Negative power-supply input. Note VS– tied together on multichannel devices
VS1+ 13 I Amplifier 1 positive power-supply input
VS2+ 9 I Amplifier 2 positive power-supply input
