Parameter Measurement Information

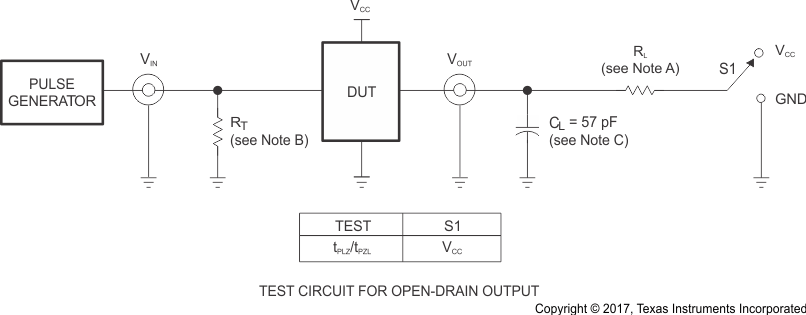

TCA9517 pmi_cps157.gif
RL = 167 Ω (0.9 V to 2.7 V) and RL = 450 Ω (3.0 V to 5.5 V) on the A side and 1.35 kΩ on the B-side
RT termination resistance should be equal to ZOUT of pulse generators.
CL includes probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, slew rate ≥ 1 V/ns.
The outputs are measured one at a time, with one transition per measurement.
tPLH and tPHL are the same as tpd.
tPLZ and tPHZ are the same as tdis.
tPZL and tPZH are the same as ten.
Figure 3. Test Circuit
TCA9517 waveform1_cps157.gifFigure 4. Waveform 1 – Propagation Delay and Transition Times for B-side to A-side
TCA9517 waveform3_cps242.gifFigure 6. Waveform 3 – Propagation Delay for B-side to A-side
TCA9517 waveform2_cps157.gifFigure 5. Waveform 2 – Propagation Delay and Transition Times for A-side to B-side
