Parallel Bridge Tied Load (PBTL) Configuration With Hybrid Modulation

Free-air room temperature 25°C (unless otherwise noted) Measurements were made using TAS5825MEVM board and Audio Precision System 2722 with Analog Analyzer filter set to 20-kHz brickwall filter. All measurements taken with audio frequency set to 1 kHz and device PWM frequency set to 384 kHz, the LC filter used was 10 μH / 0.68 μF (Pre-Filter PBTL, the merging of the two output channels in this device can be done before the inductor portion of the output filter, see connect method in Section 10.2.5), unless otherwise noted.

Hybrid Modulation PO = 1W,2.5W,5W
FSW = 384 kHz Load = 4 Ω PBTL Mode
Figure 7-23 THD+N vs Frequency-PBTL
Hybrid Modulation PO = 1W,2.5W,5W
FSW = 384 kHz Load = 4 Ω PBTL Mode
Figure 7-25 THD+N vs Frequency-PBTL
Hybrid Modulation PO = 1W,2.5W,5W
FSW = 384 kHz Load = 4 Ω PBTL Mode
Figure 7-27 THD+N vs Frequency-PBTL
Hybrid Modulation
FSW = 384 kHz Load = 4 Ω, 3 Ω PBTL Mode

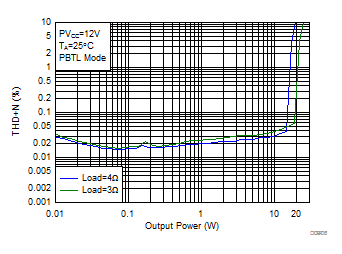

Figure 7-29 THD+N vs Output Power-PBTL
Hybrid Modulation
FSW = 384 kHz Load = 4 Ω, 3 Ω PBTL Mode

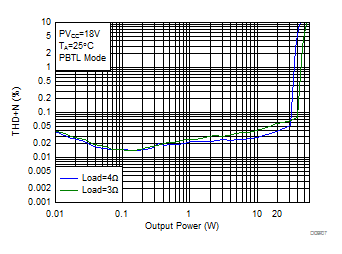

Figure 7-31 THD+N vs Output Power-PBTL
Hybrid Modulation
FSW = 384 kHz Load = 3 Ω PBTL Mode
Figure 7-33 Efficiency vs Output Power
Hybrid Modulation
FSW = 384 kHz Load = 3 Ω, 4 Ω PBTL Mode

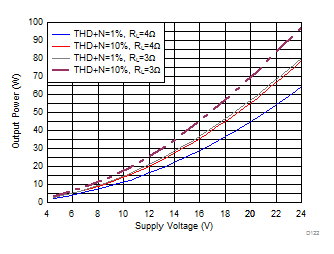

Figure 7-35 Output Power vs Supply Voltage
Hybrid Modulation PO = 1W,2.5W,5W
FSW = 384 kHz Load = 3 Ω PBTL Mode

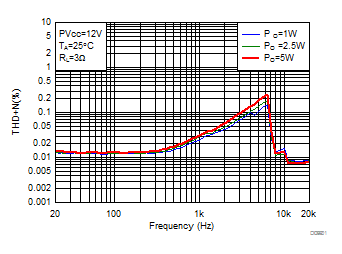

Figure 7-24 THD+N vs Frequency-PBTL
Hybrid Modulation PO = 1W, 2.5W, 5W
FSW = 384 kHz Load = 3 Ω PBTL Mode

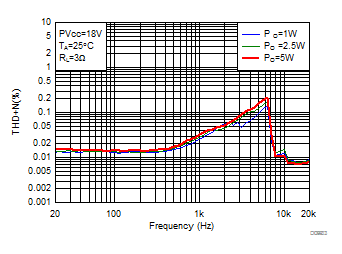

Figure 7-26 THD+N vs Frequency-PBTL
Hybrid Modulation PO = 1W,2.5W,5W
FSW = 384 kHz Load = 3 Ω PBTL Mode
Figure 7-28 THD+N vs Frequency-PBTL
Hybrid Modulation
FSW = 384 kHz Load = 4 Ω, 3 Ω PBTL Mode
Figure 7-30 THD+N vs Output Power-PBTL
Hybrid Modulation
FSW = 384 kHz Load = 4- Ω PBTL Mode
Figure 7-32 Efficiency vs Output Power
Hybrid Modulation
FSW = 384 kHz Load = 6 Ω PBTL Mode
Figure 7-34 Idle Channel Noise vs Supply Voltage
