6 Parameter Measurement Information

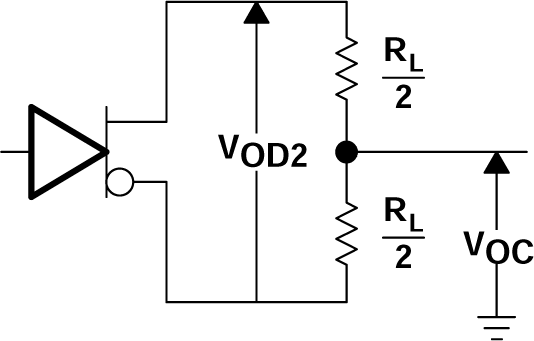

Figure 6-1 Driver Test Circuit, VOD and VOC

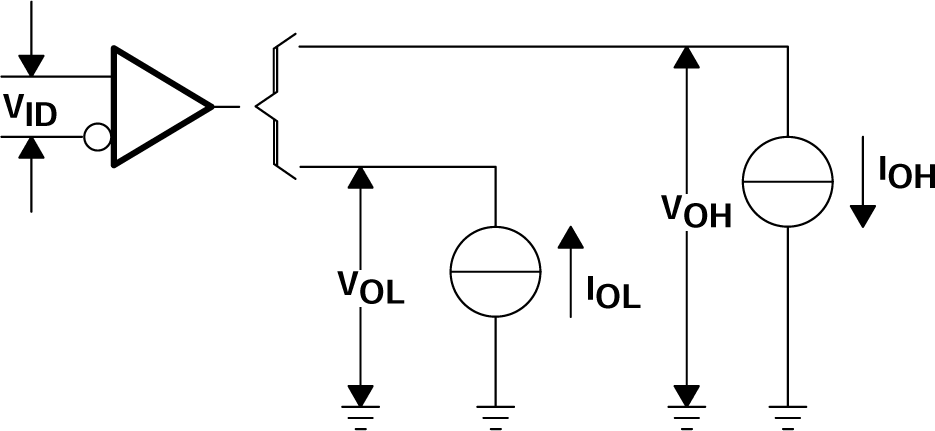

Figure 6-2 Receiver Test Circuit, VOH and VOL
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR ≤ 1MHz, 50% duty cycle, tr ≤ 10ns, tf ≤ 10ns.
Figure 6-3 Driver Propagation Delay Times
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR ≤ 1MHz, 50% duty cycle, tr ≤ 10ns, tf ≤ 10ns.

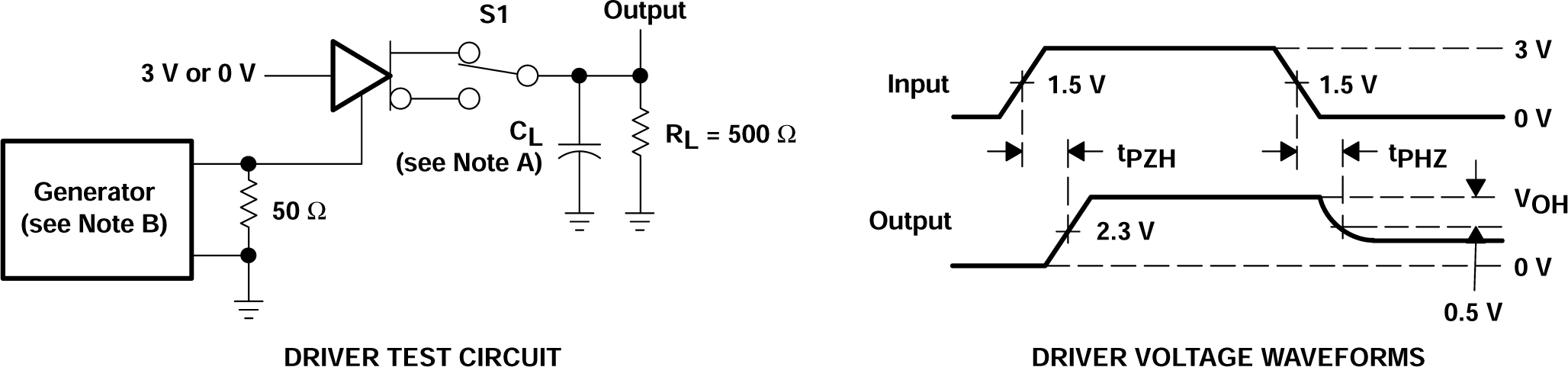

Figure 6-4 Driver Enable and Disable Times
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR ≤ 1MHz, 50% duty cycle, tr ≤ 10ns, tf ≤ 10ns.
Figure 6-5 Driver Enable and Disable Times
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR ≤ 1MHz, 50% duty cycle, tr ≤ 10ns, tf ≤ 10ns.

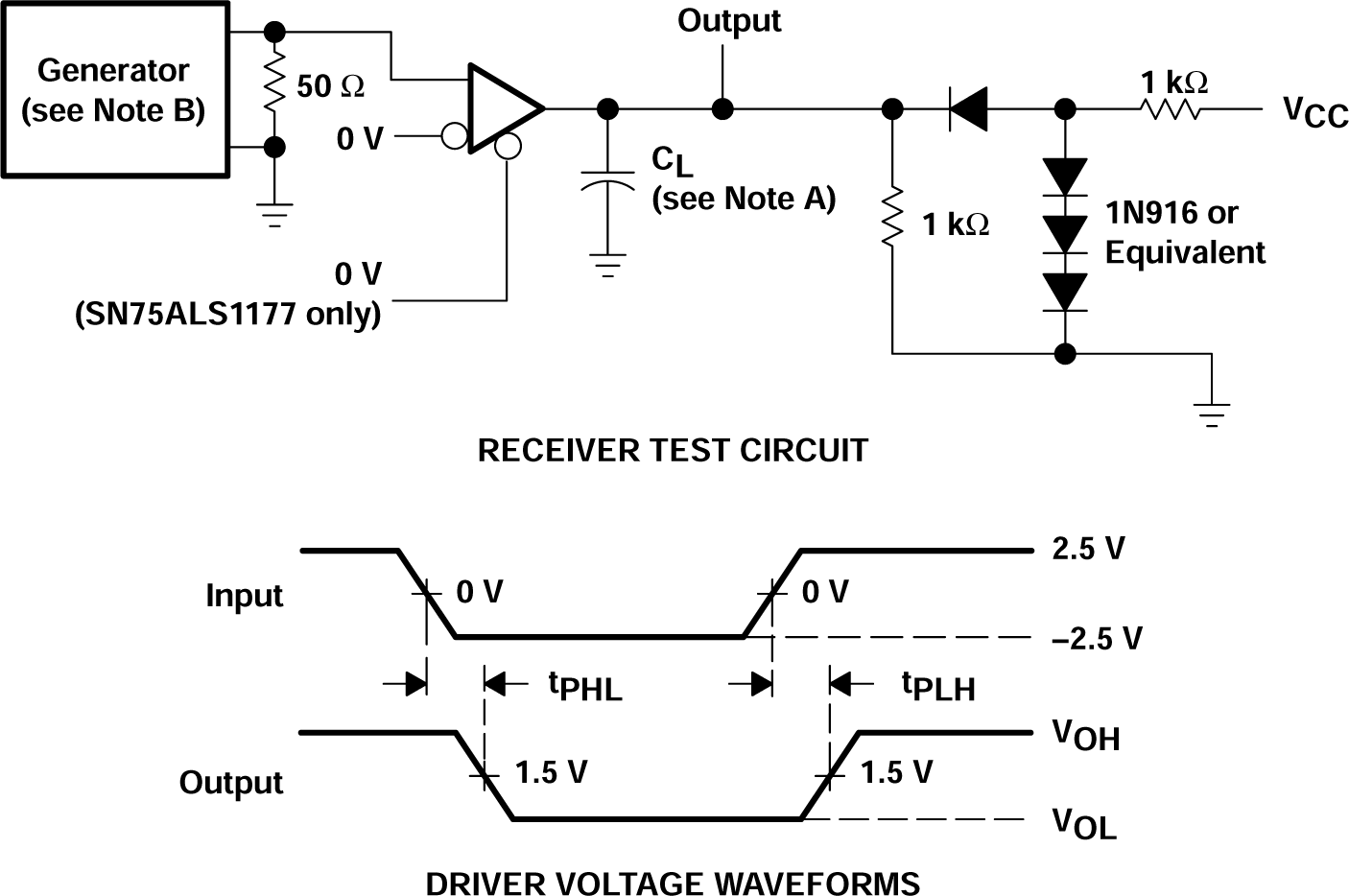

Figure 6-6 Receiver Propagation Delay Times
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR ≤ 1MHz, 50% duty cycle, tr ≤ 10ns, tf ≤ 10ns.

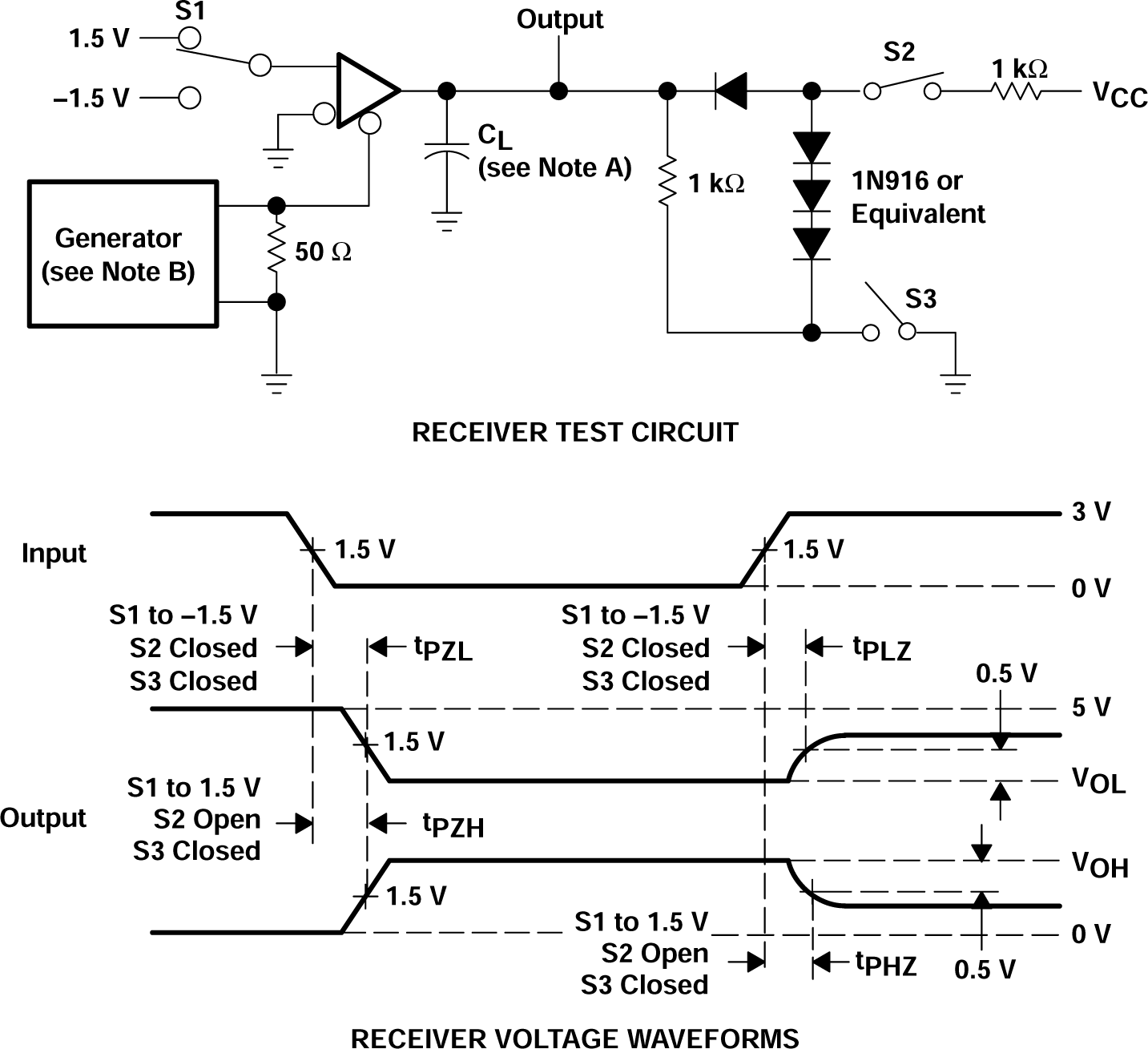

Figure 6-7 Receiver Output Enable and Disable Times
