ZHCSRT8J May   1998  – March 2023 SN74LV540A

PRODMIX

  1. 1 特性
  2. 2 应用
  3. 3 说明
  4. 4 Revision History
  5. 5 Pin Configuration and Functions
  6. 6 Specifications
    1. 6.1  Absolute Maximum Ratings
    2. 6.2  ESD Ratings
    3. 6.3  Recommended Operating Conditions
    4. 6.4  Thermal Information
    5. 6.5  Electrical Characteristics
    6. 6.6  Switching Characteristics, VCC = 2.5 V ± 0.2 V
    7. 6.7  Switching Characteristics, VCC = 3.3 V ± 0.3 V
    8. 6.8  Switching Characteristics, VCC = 5 V ± 0.5 V
    9. 6.9  Noise Characteristics
    10. 6.10 Operating Characteristics
    11. 6.11 Typical Characteristics
  7. 7 Parameter Measurement Information
  8. 8 Detailed Description
    1. 8.1 Overview
    2. 8.2 Functional Block Diagram
    3. 8.3 Feature Description
    4. 8.4 Device Functional Modes
  9. 9 Application and Implementation
    1. 9.1 Application Information
    2. 9.2 Typical Application
      1. 9.2.1 Design Requirements
      2. 9.2.2 Detailed Design Procedure
      3. 9.2.3 Application Curves
    3. 9.3 Power Supply Recommendations
    4. 9.4 Layout
      1. 9.4.1 Layout Guidelines
      2. 9.4.2 Layout Example
  10. 10Device and Documentation Support
    1. 10.1 Documentation Support
      1. 10.1.1 Related Links
    2. 10.2 接收文档更新通知
    3. 10.3 支持资源
    4. 10.4 Trademarks
    5. 10.5 静电放电警告
    6. 10.6 术语表
  11. 11Mechanical, Packaging, and Orderable Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • DGV|20
  • DB|20
  • NS|20
  • PW|20
  • DW|20
  • RGY|20
散热焊盘机械数据 (封装 | 引脚)
订购信息

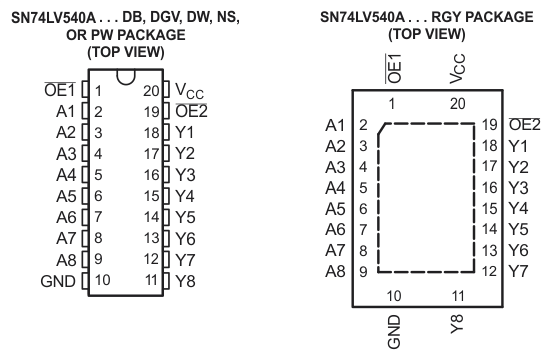

5 Pin Configuration and Functions

Table 5-1 Pin Functions
PIN TYPE DESCRIPTION
NO. NAME
1 OE1 I Output Enable 1
2 A1 I A1 Input
3 A2 I A2 Input
4 A3 I A3 Input
5 A4 I A4 Input
6 A5 I A5 Input
7 A6 I A6 Input
8 A7 I A7 Input
9 A8 I A8 Input
10 GND — Ground Pin
11 Y8 O Y8 Output
12 Y7 O Y7 Output
13 Y6 O Y6 Output
14 Y5 O Y5 Output
15 Y4 O Y4 Output
16 Y3 O Y3 Output
17 Y2 O Y2 Output
18 Y1 O Y1 Output
19 OE2 I Output Enable 2
20 VCC — Power Pin
