8 Parameter Measurement Information

Unless otherwise noted, all input pulses are supplied by generators that have the following characteristics:

  • PRR ≤ 10 MHz
  • ZO = 50 Ω

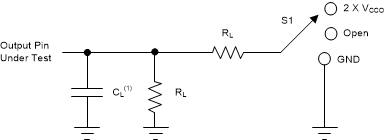

SN74AUC1G126 sces383_load_circuit.gif
1. CL includes probe and jig capacitance.
Figure 9. Load Circuit

Table 1. Loading Conditions for Parameter

TEST S1
tPLH (1), tPHL (1) Open
tPLZ (2), tPZL (3) 2 × VCC
tPHZ (2), tPZH (3) GND

Table 2. Loading Conditions for VCC

VCC CL RL VΔ
0.8 V 15 pF 2 kΩ 0.1 V
1.2 V ± 0.1 V 15 pF 2 kΩ 0.1 V
1.5 V ± 0.1 V 15 pF 2 kΩ 0.1 V
1.8 V ± 0.15 V 15 pF 2 kΩ 0.15 V
2.5 V ± 0.2 V 15 pF 2 kΩ 0.15 V
1.8 V ± 0.15 V 30 pF 1 kΩ 0.15 V
2.5 V ± 0.2 V 30 pF 500 kΩ 0.15 V
SN74AUC1G126 sces383_voltage_waveforms_pulse_duration.gifFigure 10. Voltage Waveforms: Pulse Duration
SN74AUC1G126 sces383_voltage_waveforms_propagation_delay_times_inverting_and_non_inverting_outputs.gif
1. All outputs are measured one at a time, with one transition per measurement.
Figure 11. Voltage Waveforms: Propagation Delay Times, Inverting and Noninverting Outputs
SN74AUC1G126 sces383_voltage_waveforms_setup_and_hold_times.gifFigure 12. Voltage Waveforms: Setup and Hold Times
SN74AUC1G126 sces383_voltage_waveforms_enable_and_disable_times_low_and_high_level_enabling.gif
1. Waveform 1 is for an output with internal conditions such as the output is low, except when disabled by the output control.
2. Waveform 2 is for an output with internal conditions such as the output is high, except when disabled by the output control.
3. All outputs are measured one at a time, with one transition per measurement.
Figure 13. Voltage Waveforms: Enable and Disable Times, Low- and High-Level Enabling
