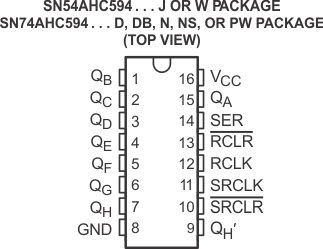

4 Pin Configuration and Functions

Table 4-1 Pin Functions
Pin I/O Description
Name SN54AHC594 SN74AHC594
FK J, W D, DB, N,
NS, PW
GND 10 8 8 — Ground Pin
NC 1 — — — No connect
6
11
16
QA 19 15 15 O QA Output
QB 2 1 1 O QB Output
QC 3 2 2 O QC Output
QD 4 3 3 O QD Output
QE 5 4 4 O QE Output
QF 7 5 5 O QF Output
QG 8 6 6 O QG Output
QH 9 7 7 O QH Output
QH' 12 9 9 O QH' Output
RCLK 15 12 12 I RCLK Input
RCLR 17 13 13 I RCLR Input
SER 18 14 14 I SER Input
SRCLK 14 11 11 I SRCLK Input
SRCLR 13 10 10 I SRCLR Input
VCC 20 16 16 — Power pin
