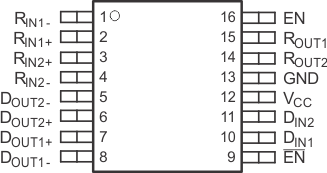

5 Pin Configuration and Functions

PW Package (Marked as LVDS049)
16-Pin TSSOP
(Top View)
SN65LVDS049 po_lls575.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
GND 13 Ground
DIN1 10 I LVTTL input signals
DIN2 11
DOUT1+ 7 O Differential (LVDS) noninverting output
DOUT2+ 6
DOUT1– 8 O Differential (LVDS) inverting output
DOUT2– 5
EN 16 I Driver and receiver enable
EN 9 I Driver and receiver inverse-enable
RIN1+ 2 I Differential (LVDS) noninverting input
RIN2+ 3
RIN1– 1 I Differential (LVDS) inverting input
RIN2– 4
ROUT1 15 O LVTTL output signals
ROUT2 14
VCC 12 Supply voltage
