8 Parameter Measurement Information

Signal generator rate is 115 kbps, 50% duty cycle, rise and fall times less than 6 nsec, nominal output levels 0V and 3V. Coupling capacitor Cc is 220 nF.

SN65HVD62 dvr_output_llse94.gifFigure 19. Measurement of Modem Driver Output Voltage With 50 Ω Loads

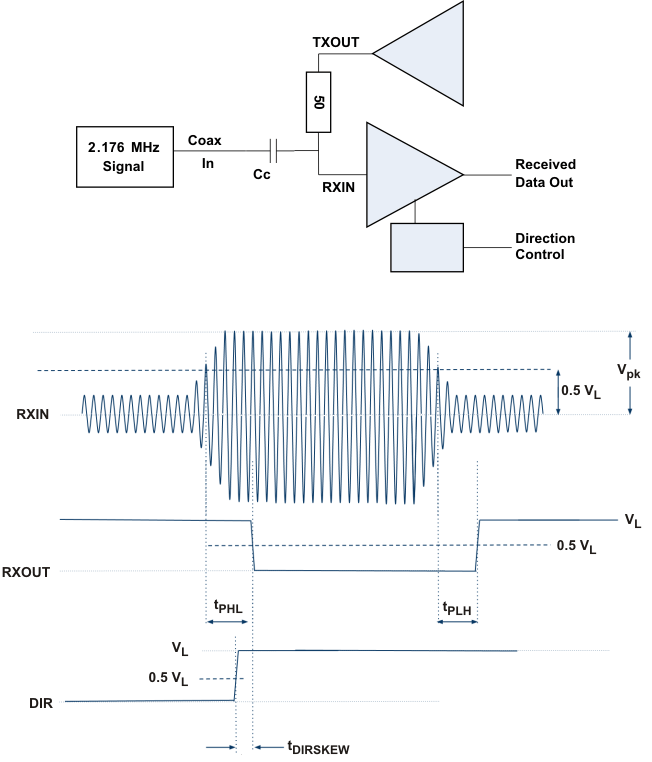

SN65HVD62 rec_delay_llse94.gifFigure 20. Measurement of Modem Receiver Propagation Delays
SN65HVD62 Emissions_Template.gifFigure 21. AISG Emissions Template
