6.11 Typical Characteristics

Figure 6-1 Bus Input Current versus Bus Input Voltage
Figure 6-3 SN65HVD3085E RMS Supply Current versus Signaling Rate

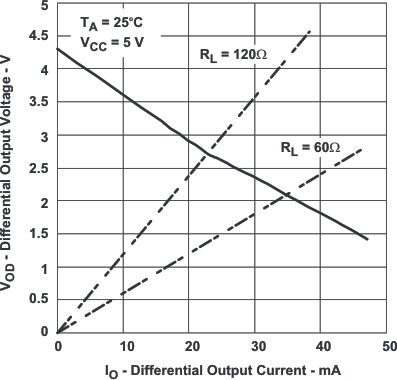

Figure 6-5 Driver Differential Output Voltage versus Driver Output Current
Figure 6-7 SN65HVD3088E Driver Rise and Fall Time versus Temperature
Figure 6-2 SN65HVD3082E RMS Supply Current versus Signaling Rate
Figure 6-4 SN65HVD3088E RMS Supply Current versus Signal Rate
Figure 6-6 Receiver Output Voltage versus Differential Input Voltage
