7 Parameter Measurement Information

A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR = 1 Mbits, ZO = 50 Ω , 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 7-1 Driver Slew Rate
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR = 1 Mbits, ZO = 50 Ω , 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 7-2 Driver Pulse Skew
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: ZO = 50 Ω , 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 7-3 Receiver Propagation Delay Times
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: ZO = 50 Ω , 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
C. tPLZ and tPHZ are the same as tdis.
D. tPZL and tPZH are the same as ten.
Figure 7-4 Receiver Enable and Disable Times
A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: PRR = 5 Mbits, ZO = 50 Ω , 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.

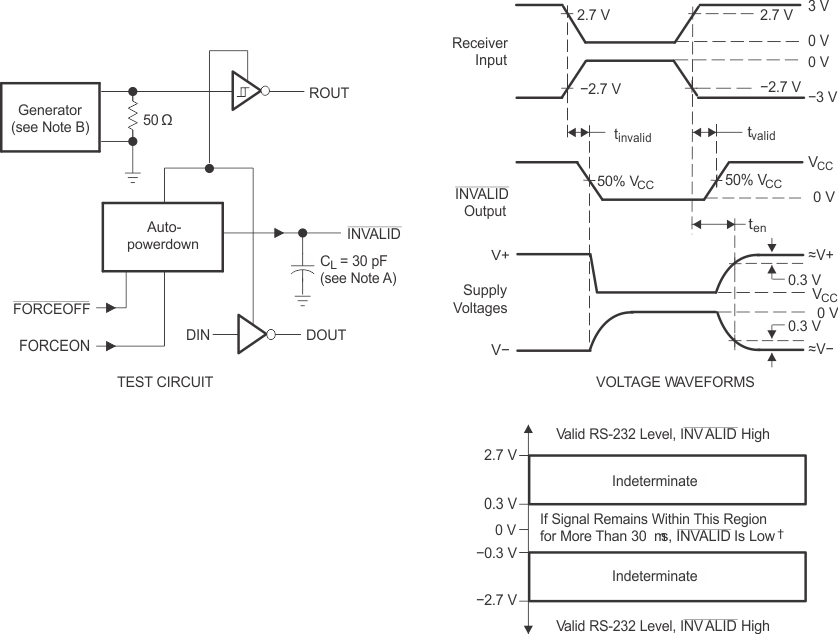

Figure 7-5 INVALID Propagation Delay Times and Supply Enabling Time
† C3 can be connected to VCC or GND.
A. Resistor values shown are nominal.
Figure 7-6 Typical Operating Circuit and Capacitor Values
Table 7-1 VCC vs Capacitor Values
VCC C1 C2, C3, and C4
3.3 V ± 0.3 V 0.1 µF 0.1 µF
5 V ± 0.5 V 0.047 µF 0.33 µF
3 V to 5.5 V 0.1 µF 0.47 µF
