6 Pin Configuration and Functions

GUID-CF61FC4D-EF64-40C9-8A31-BDD7658DD562-low.gifFigure 6-1 OPA863 DBV Package,
6-Pin SOT-23
(Top View)
GUID-20220627-SS0I-G05C-KVZ9-WTM04DPRN0NF-low.svgFigure 6-2 OPA863 DBV Package,
5-Pin SOT-23
(Top View)
Table 6-1 Pin Functions: OPA863
PIN TYPE(1) DESCRIPTION
NAME NO.
DBV (SOT-23, 5) DBV (SOT-23, 6)
PD — 5 I Power down.
Low = disabled, high = normal operation (pin must be driven).
VIN+ 3 3 I Noninverting input pin
VIN– 4 4 I Inverting input pin
VOUT 1 1 O Output pin
VS– 2 2 P Negative power-supply pin
VS+ 5 6 P Positive power-supply pin
(1) I = input, O = output, and P = power.
GUID-20210401-CA0I-SRFD-1Q5W-TDZ4DBMPJXWR-low.gifFigure 6-3 OPA2863 D Package, 8-Pin SOIC
and DGK Package, 8-Pin VSSOP,
(Top View)
GUID-20210401-CA0I-G4DT-ZJ0C-4Q4T2PRDRHWJ-low.gifFigure 6-4 OPA2863 RUN Package,
10-Pin WQFN
(Top View)
Table 6-2 Pin Functions: OPA2863
PIN TYPE(1) DESCRIPTION
NAME NO.
D (SOIC), DGK (VSSOP) RUN (WQFN)
PD1 — 4 I Amplifier 1 power down.
Low = disabled, high = normal operation (pin must be driven).
PD2 — 6 I Amplifier 2 power down.
Low = disabled, high = normal operation (pin must be driven).
VIN1– 2 2 I Amplifier 1 inverting input pin
VIN1+ 3 3 I Amplifier 1 noninverting input pin
VIN2– 6 8 I Amplifier 2 inverting input pin
VIN2+ 5 7 I Amplifier 2 noninverting input pin
VOUT1 1 1 O Amplifier 1 output pin
VOUT2 7 9 O Amplifier 2 output pin
VS– 4 5 P Negative power-supply pin
VS+ 8 10 P Positive power-supply pin
(1) I = input, O = output, and P = power.

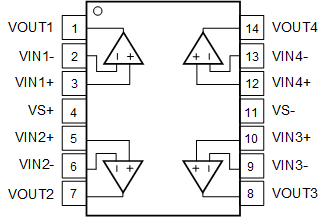

GUID-03BC5731-83CB-4C93-BE61-7282E3630BBF-low.gif Figure 6-5 OPA4863 PW Package,
14-Pin TSSOP
(Top View)
Table 6-3 Pin Functions: OPA4863
PIN TYPE(1) DESCRIPTION
NAME NO.
VIN1– 2 I Amplifier 1 inverting input pin
VIN1+ 3 I Amplifier 1 noninverting input pin
VIN2– 6 I Amplifier 2 inverting input pin
VIN2+ 5 I Amplifier 2 noninverting input pin
VIN3– 9 I Amplifier 3 inverting input pin
VIN3+ 10 I Amplifier 3 noninverting input pin
VIN4– 13 I Amplifier 4 inverting input pin
VIN4+ 12 I Amplifier 4 noninverting input pin
VOUT1 1 O Amplifier 1 output pin
VOUT2 7 O Amplifier 2 output pin
VOUT3 8 O Amplifier 3 output pin
VOUT4 14 O Amplifier 4 output pin
VS– 11 P Negative power-supply pin
VS+ 4 P Positive power-supply pin
(1) I = input, O = output, and P = power.
