6.7 Typical Characteristics

at TA = 25°C, V+ = 5 V, V– = 0 V, VCOM = VO = 2.5 V, gain (G) = 2, RF = 1 kΩ, CF= 2.7 pF, CLOAD= 20 pF, and RLOAD = 2 kΩ connected to 2.5 V (unless otherwise noted)
OPA2626 C004_SBOS688.png
VO = 10 mVPP

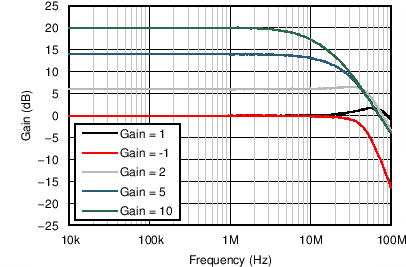

Figure 1. Small-Signal Frequency Response for Various Gains
OPA2626 C006_SBOS688.png
VO = 10 mVPP, G = 1

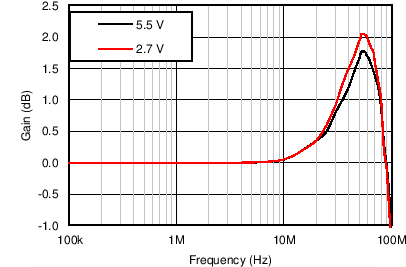

Figure 3. Small-Signal Frequency Response for Various Power Supply Voltages
OPA2626 C008_SBOS688.png
VO = 2 VPP, G = 1
Figure 5. Large-Signal Frequency Response for Various Capacitive Loads
OPA2626 C024_SBOS688.png
VO = 10 mVPP
Figure 7. Open-Loop Gain and Phase vs Frequency
OPA2626 D007_SBOS690.gif

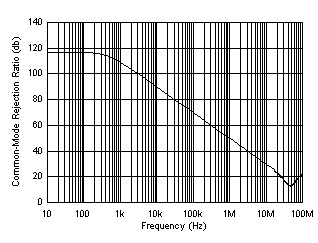

Figure 9. Common-Mode Rejection Ratio vs Frequency
OPA2626 C023_SBOS688.png
G = 1, CLOAD = 1.2 nF

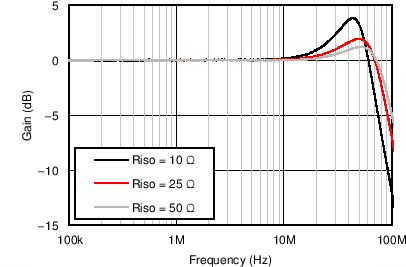

Figure 11. Series Resistance for Capacitive Load Stability
OPA2626 C028_SBOS688.png
G = –1, VO = 10 mVPP

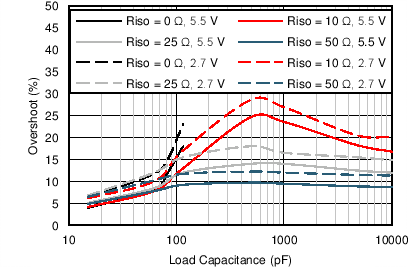

Figure 13. Overshoot vs Capacitive Load, G = –1
OPA2626 C011_SBOS688.png
G = 1, VO = 2 VPP, RLOAD = 600 Ω

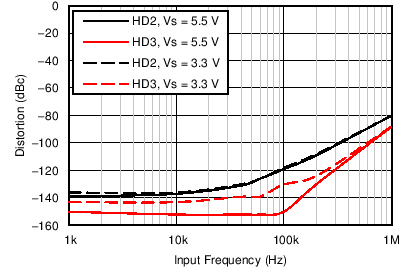

Figure 15. Distortion vs Frequency for Various Power Supplies
OPA2626 C013_SBOS688.png
G = 1, RLOAD = 600 Ω

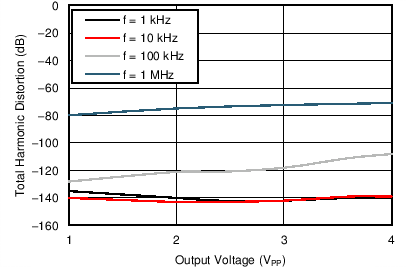

Figure 17. Total Harmonic Distortion vs Output Voltage for Various Frequencies
OPA2626 C015_SBOS688.png

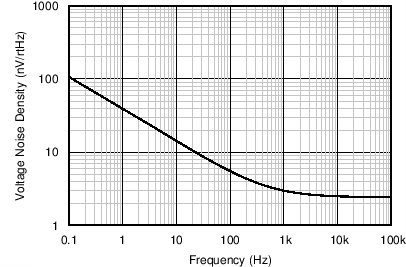

Figure 19. Voltage Noise Density vs Frequency
OPA2626 D200_sbos688.gif
Figure 21. Crosstalk vs Frequency
OPA2626 C018_SBOS688.png

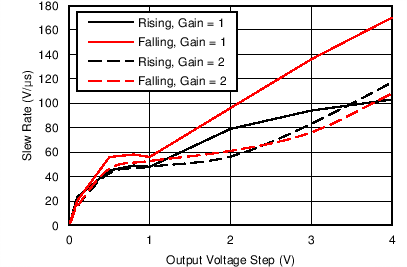

Figure 23. Slew Rate vs Output Step Size
OPA2626 C020_SBOS688.png
G = 1, VO = 4-V step

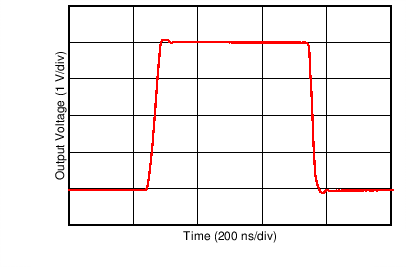

Figure 25. Large-Signal Pulse Response
OPA2626 C029_SBOS688.png
G = 1, VO = 10-mV step
Figure 27. Small-Signal Pulse Response
OPA2626 C034_SBOS688.png
VO = 3.6-V step at t = 0 s
Figure 29. 16-Bit Negative Settling Time
OPA2626 C031_SBOS688.png
VS = ±2.75 V, G = 1

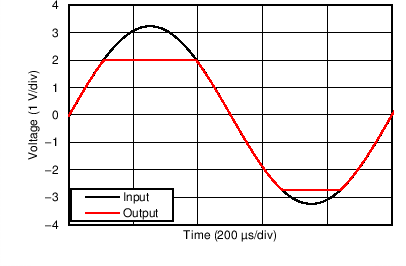

Figure 31. No Phase Reversal
OPA2626 C022_SBOS688.png
VS = ±2.75 V, G = 5

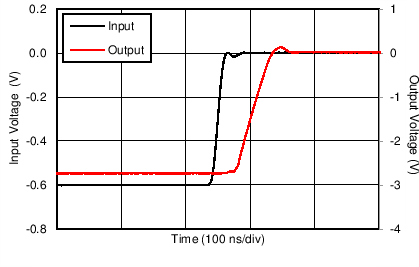

Figure 33. Negative Overload Recovery
OPA2626 C014_OT.png
Distribution taken from 80 amplifiers, TA = 125°C

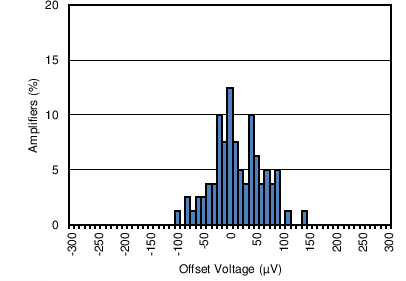

Figure 35. Input Offset Voltage Distribution
OPA2626 C006_OT.png
Distribution taken from 75 amplifiers, TA = –40°C to +125°C

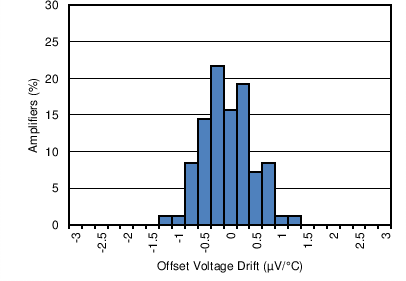

Figure 37. Input Offset Voltage Drift Distribution
OPA2626 C020_OT.png

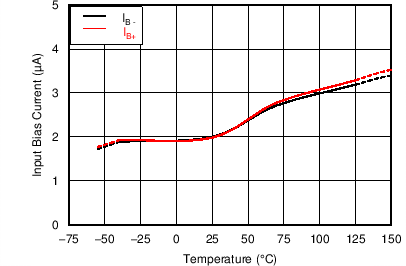

Figure 39. Input Bias Current vs Temperature
OPA2626 C021_OT.png

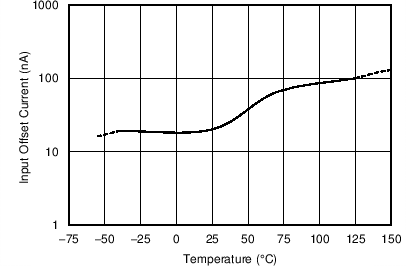

Figure 41. Input Offset Current vs Temperature
OPA2626 C010_OT.png
2.7 V ≤ VS ≤ 5.5 V

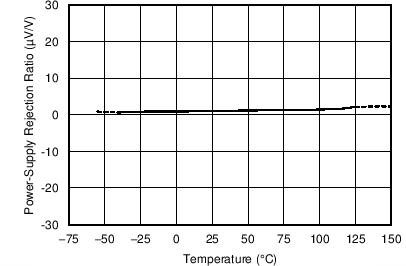

Figure 43. Power-Supply Rejection Ratio vs Temperature
OPA2626 C013_OT.png
RLOAD = 600 Ω

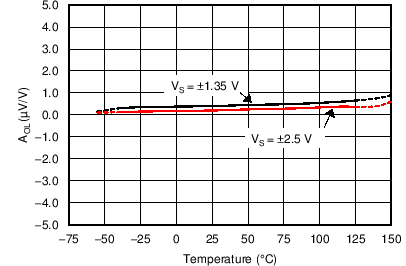

Figure 45. Open-Loop Gain vs Temperature With 600-Ω Load
OPA2626 C009_OT.png
6 typical units shown, VS = ±1.35 V to ±2.75 V

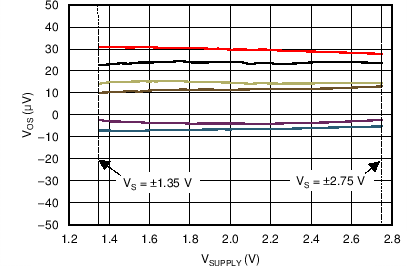

Figure 47. Input Offset Voltage vs Power-Supply Voltage
OPA2626 C004_OT.png

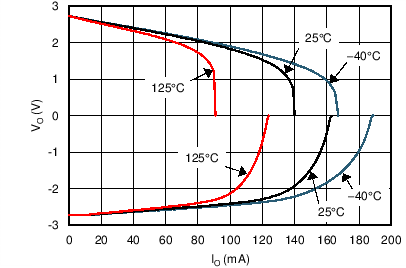

Figure 49. Output Voltage vs Output Current
OPA2626 C001_OT.png
Figure 51. Quiescent Current vs Power-Supply Voltage
OPA2626 D006_SBOS688.gif
Powered on at t = 0 s, PCB dimensions: 4 in2, 2 layer, FR4

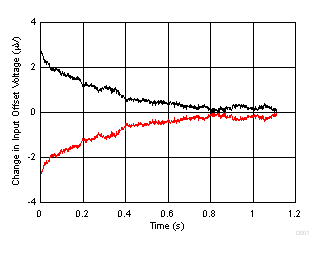

Figure 53. Warm-Up Time
OPA2626 C005_SBOS688.png
VO = 2 VPP

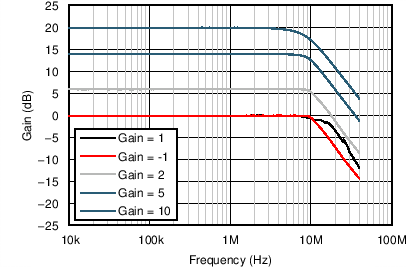

Figure 2. Large-Signal Frequency Response for Various Gains
OPA2626 C007_SBOS688.png
VO = 10 mVPP , G = 1

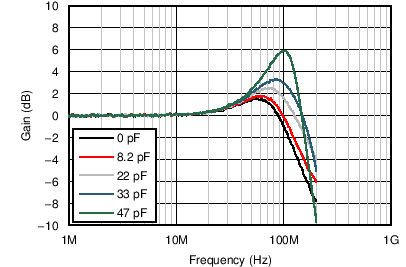

Figure 4. Small-Signal Frequency Response for Various Capacitive Loads
OPA2626 C009_SBOS688.png
VO = 10 mVPP , G = 1
Figure 6. Small-Signal Frequency Response for Various Resistive Loads
OPA2626 D003_SBOS688.gif
Figure 8. Open-Loop Output Impedance vs Frequency
OPA2626 C026_SBOS688.png

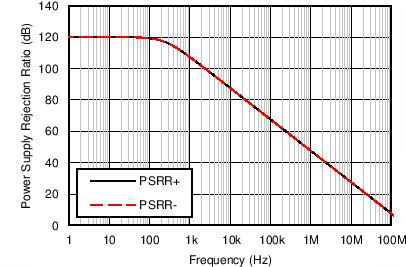

Figure 10. Power-Supply Rejection Ratio vs Frequency
OPA2626 C027_SBOS688.png
G = 1, VO = 10 mVPP

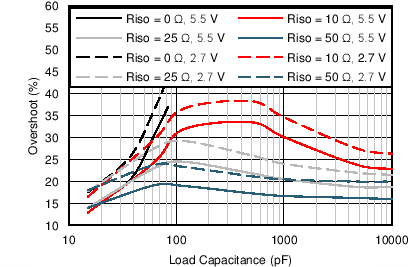

Figure 12. Overshoot vs Capacitive Load, G = 1
OPA2626 C010_SBOS688.png
VS = 5.5 V, VO = 2 VPP, RLOAD = 600 Ω

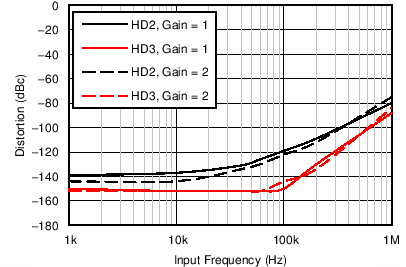

Figure 14. Distortion vs Frequency for Various Gains
OPA2626 C012_SBOS688.png
G = 2, VO = 2 VPP, RLOAD = 600 Ω

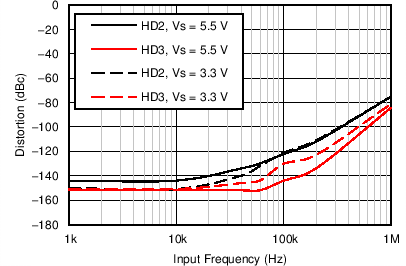

Figure 16. Distortion vs Frequency for Various Power Supplies
OPA2626 C014_SBOS688.png
G = 1, VO = 2 VPP , RLOAD = 600 Ω

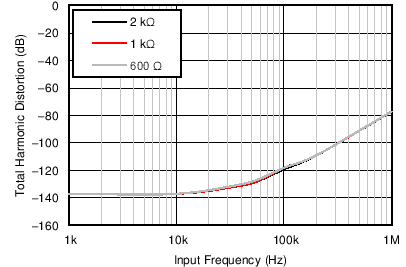

Figure 18. Total Harmonic Distortion vs Frequency for Various Loads
OPA2626 C016_SBOS688.png

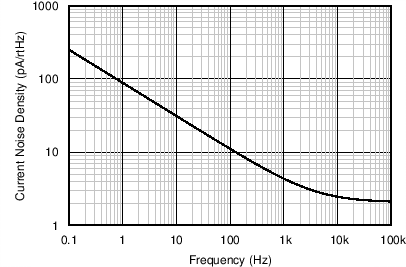

Figure 20. Current Noise Density vs Frequency
OPA2626 C017_SBOS688.png
Figure 22. 0.1-Hz to 10-Hz Voltage Noise
OPA2626 D001_SBOS688.gif

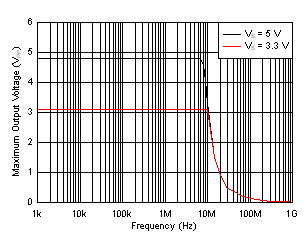

Figure 24. Maximum Output Voltage vs Frequency
OPA2626 C019_SBOS688.png
G = –1, VO = 4-V step
Figure 26. Large-Signal Pulse Response
OPA2626 C030_SBOS688.png
G = –1, VO = 10-mV step

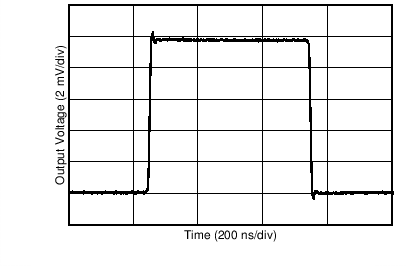

Figure 28. Small-Signal Pulse Response
OPA2626 C033_SBOS688.png
VO = 3.6-V step at t = 0 s
Figure 30. 16-Bit Positive Settling Time
OPA2626 C021_SBOS688.png
VS = ±2.75 V, G = 5

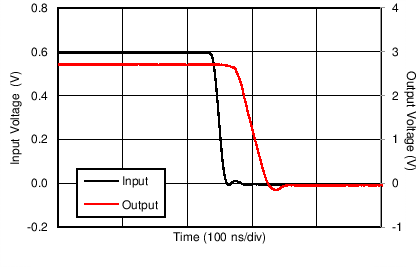

Figure 32. Positive Overload Recovery
OPA2626 C007_OT.png
Distribution taken from 3139 amplifiers, TA = 25°C

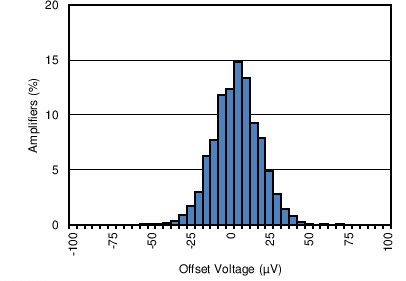

Figure 34. Input Offset Voltage Distribution
OPA2626 C016_OT.png
Distribution taken from 80 amplifiers, TA = –40°C

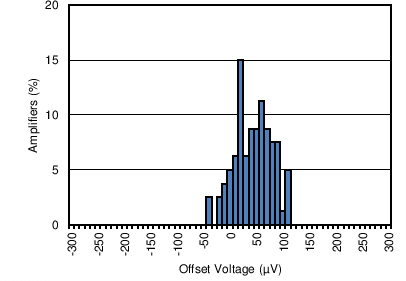

Figure 36. Input Offset Voltage Distribution
OPA2626 C022_OT.png
Distribution taken from 3139 amplifiers
Figure 38. Input Bias Current Distribution
OPA2626 C023_OT.png
Distribution taken from 3139 amplifiers

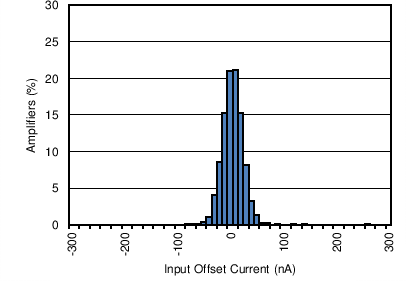

Figure 40. Input Offset Current Distribution
OPA2626 C011_OT.png

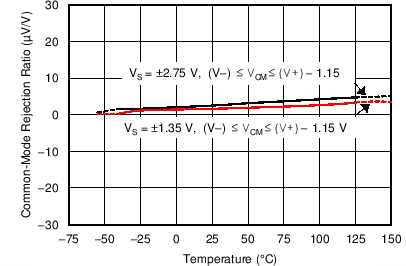

Figure 42. Common-Mode Rejection Ratio vs Temperature
OPA2626 C012_OT.png
RLOAD = 10 kΩ
Figure 44. Open-Loop Gain vs Temperature With 10-kΩ Load
OPA2626 C019_OT.png
VS = ±2.5 V

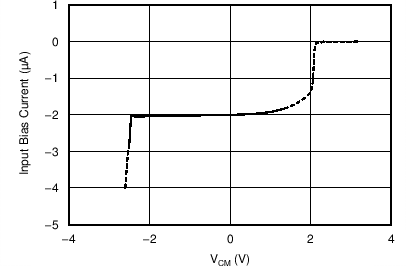

Figure 46. Input Bias Current vs Input Common-Mode Voltage
OPA2626 C008_OT.png
6 typical units shown, VS = ±2.5 V

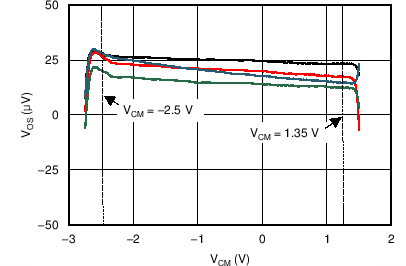

Figure 48. Input Offset Voltage vs Common-Mode Voltage
OPA2626 C003OT.png

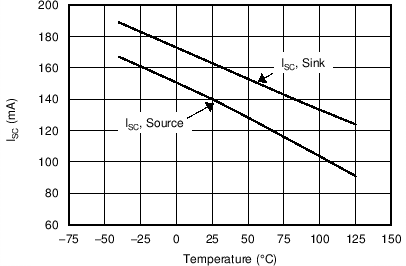

Figure 50. Short-Circuit Current vs Temperature
OPA2626 C017_OT.png

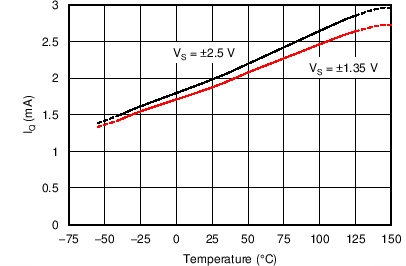

Figure 52. Quiescent Current vs Temperature
