9.11.2 Port P1, P1.4 to P1.7, Input/Output With Schmitt Trigger

Figure 9-9 shows the pin diagram. Table 9-12 summarizes the selection of the pin function.

Functional representation only.

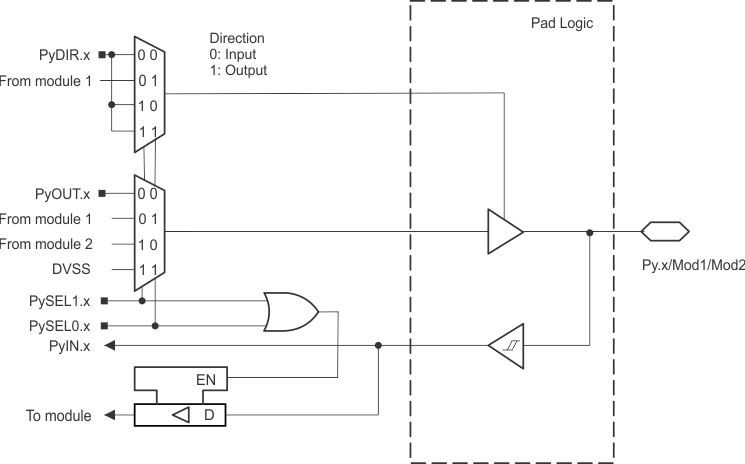

Figure 9-9 Py.x/Mod1/Mod2 Pin Schematic
Table 9-12 Port P1 (P1.4 to P1.7) Pin Functions
PIN NAME (P1.x)xFUNCTIONCONTROL BITS OR SIGNALS(1)
P1DIR.xP1SEL1.xP1SEL0.x
P1.4/UCB0STE/TA0.04P1.4 (I/O)I: 0; O: 100
UCB0STEX(2)01
TA0.CCI0A010
TA0.01
N/A011
DVSS1
P1.5/UCB0CLK/TA0.15P1.5 (I/O)I: 0; O: 100
UCB0CLKX(2)01
TA0.CCI1A010
TA0.11
N/A011
DVSS1
P1.6/UCB0SCL/UCB0SOMI/
TA0.2		6P1.6 (I/O)I: 0; O: 100
UCB0SCL/UCB0SOMIX(2)01
TA0.CCI2A010
TA0.21
N/A011
DVSS1
P1.7/UCB0SDA/UCB0SIMO/
TA1CLK		7P1.7 (I/O)I: 0; O: 100
UCB0SDA/UCB0SIMOX(2)01
TA1CLK010
DVSS1
N/A011
DVSS1
(1) X = Don't care
(2) Direction is controlled by eUSCI_B0 module.
