6.14.11 Ports P3 (P3.1 to P3.7) Input/Output With Schmitt Trigger (MSP430F677xIPZ Only)

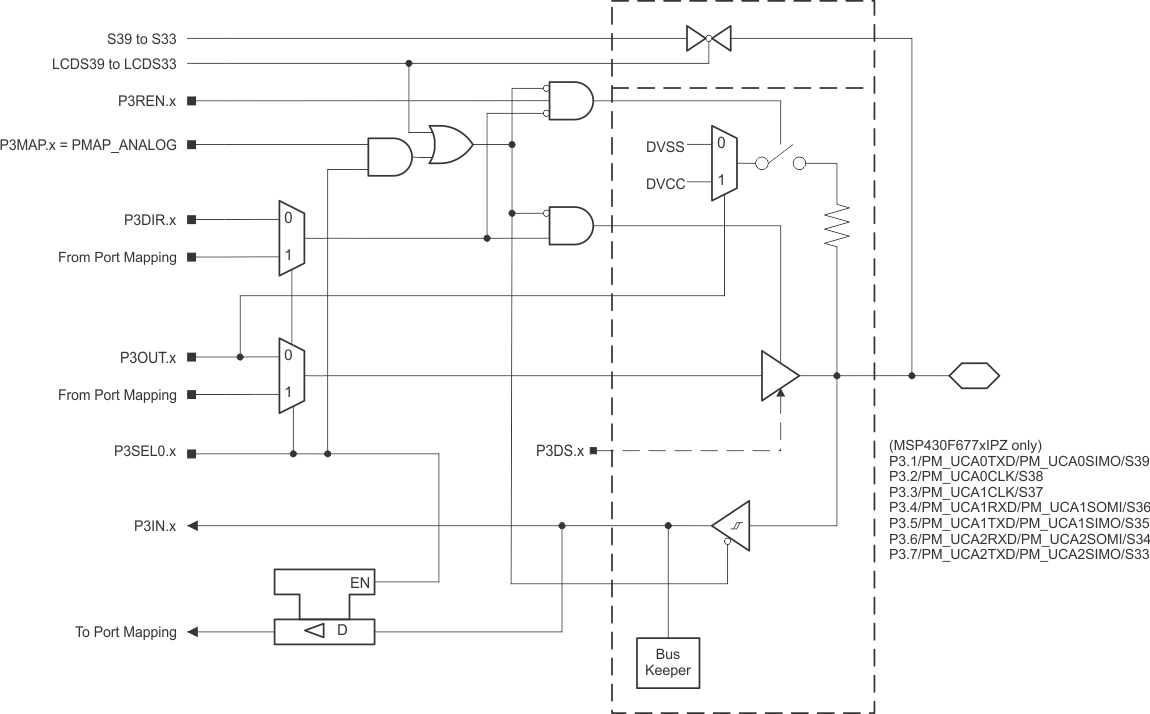

Figure 6-16 shows the port diagram. Table 6-75 summarizes the selection of the pin functions.

MSP430F6779 MSP430F6778 MSP430F6777 MSP430F6776 MSP430F6775 MSP430F6769 MSP430F6768 MSP430F6767 MSP430F6766 MSP430F6765 MSP430F6749 MSP430F6748 MSP430F6747 MSP430F6746 MSP430F6745 P3_1234567_IPZ.gifFigure 6-16 Ports P3 (P3.1 to P3.7) Diagram (MSP430F677xIPZ Only)

Table 6-75 Ports P3 (P3.1 to P3.7) Pin Functions (MSP430F677xIPZ Only)

PIN NAME (P3.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P3DIR.x P3SEL0.x P3MAP.x LCD39 to LCD33
P3.1/PM_UCA0TXD/ PM_UCA0SIMO/S39 1 P3.1 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S39 X X X 1
P3.2/PM_UCA0CLK/ S38 2 P3.2 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S38 X X X 1
P3.3/PM_UCA1CLK/ S37 3 P3.3 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S37 X X X 1
P3.4/PM_UCA1RXD/ PM_UCA1SOMI/S36 4 P3.4 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S36 X X X 1
P3.5/PM_UCA1TXD/ PM_UCA1SIMO/S35 5 P3.5 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S35 X X X 1
P3.6/PM_UCA2RXD/ PM_UCA2SOMI/S34 6 P3.6 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S34 X X X 1
P3.7/PM_UCA2TXD/ PM_UCA2SIMO/S33 7 P3.7 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S33 X X X 1
