6.14.1 Port P1 (P1.0 to P1.3) Input/Output With Schmitt Trigger (MSP430F677xIPEU Only)

Figure 6-6 shows the port diagram. Table 6-65 summarizes the selection of the pin functions.

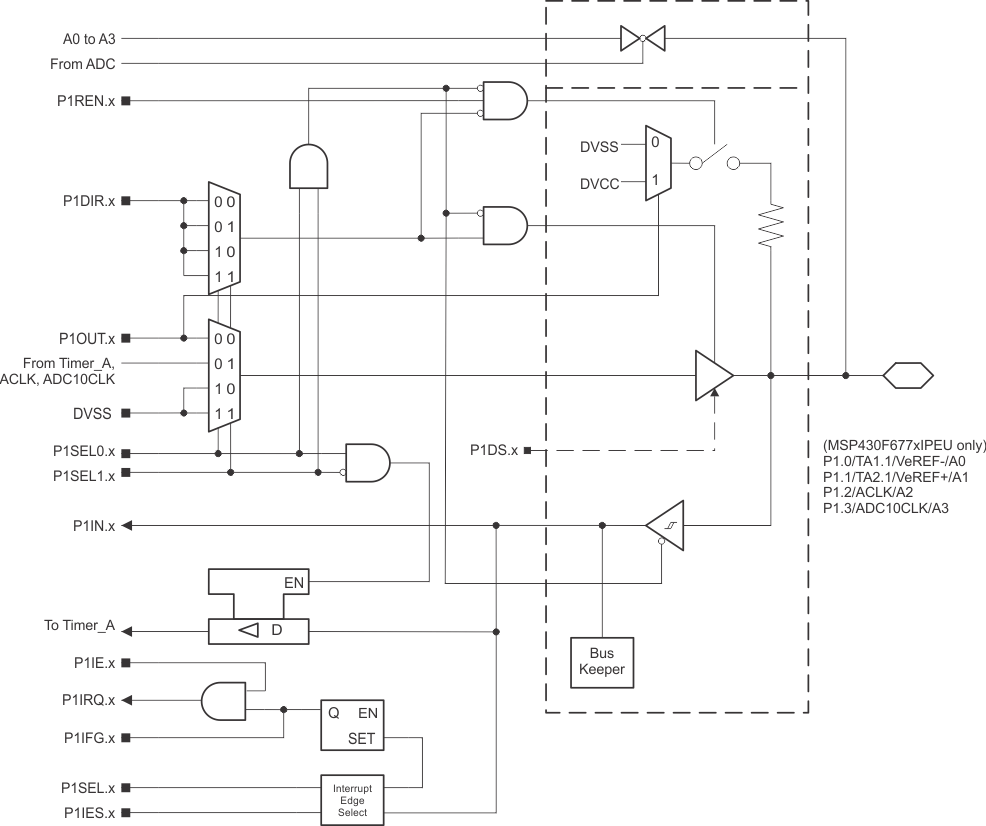

MSP430F6779 MSP430F6778 MSP430F6777 MSP430F6776 MSP430F6775 MSP430F6769 MSP430F6768 MSP430F6767 MSP430F6766 MSP430F6765 MSP430F6749 MSP430F6748 MSP430F6747 MSP430F6746 MSP430F6745 P1_0123.gifFigure 6-6 Port P1 (P1.0 to P1.3) Diagram (MSP430F677xIPEU Only)

Table 6-65 Port P1 (P1.0 to P1.3) Pin Functions (MSP430F677xIPEU Only)

PIN NAME (P1.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P1DIR.x P1SEL1.x P1SEL0.x
P1.0/TA1.1/VeREF-/A0 0 P1.0 (I/O) I:0; O:1 0 0
TA1.CCI1A 0 0 1
TA1.1 1 0 1
N/A 0 1 0
DVSS 1 1 0
VeREF-/A0 X 1 1
P1.1/TA2.1/VeREF+/A1 1 P1.1 (I/O) I:0; O:1 0 0
TA2.CCI1A 0 0 1
TA2.1 1 0 1
N/A 0 1 0
DVSS 1 1 0
VeREF+/A1 X 1 1
P1.2/ACLK/A2 2 P1.2 (I/O) I:0; O:1 0 0
ACLK 1 0 1
N/A 0 1 0
DVSS 1 1 0
A2 X 1 1
P1.3/ADC10CLK/A3 3 P1.3 (I/O) I:0; O:1 0 0
ADC10CLK 1 0 1
N/A 0 1 0
DVSS 1 1 0
A3 X 1 1
(1) X = don't care
