6.14.7 Port P2 (P2.4 and P2.6) Input/Output With Schmitt Trigger (MSP430F677xIPZ Only)

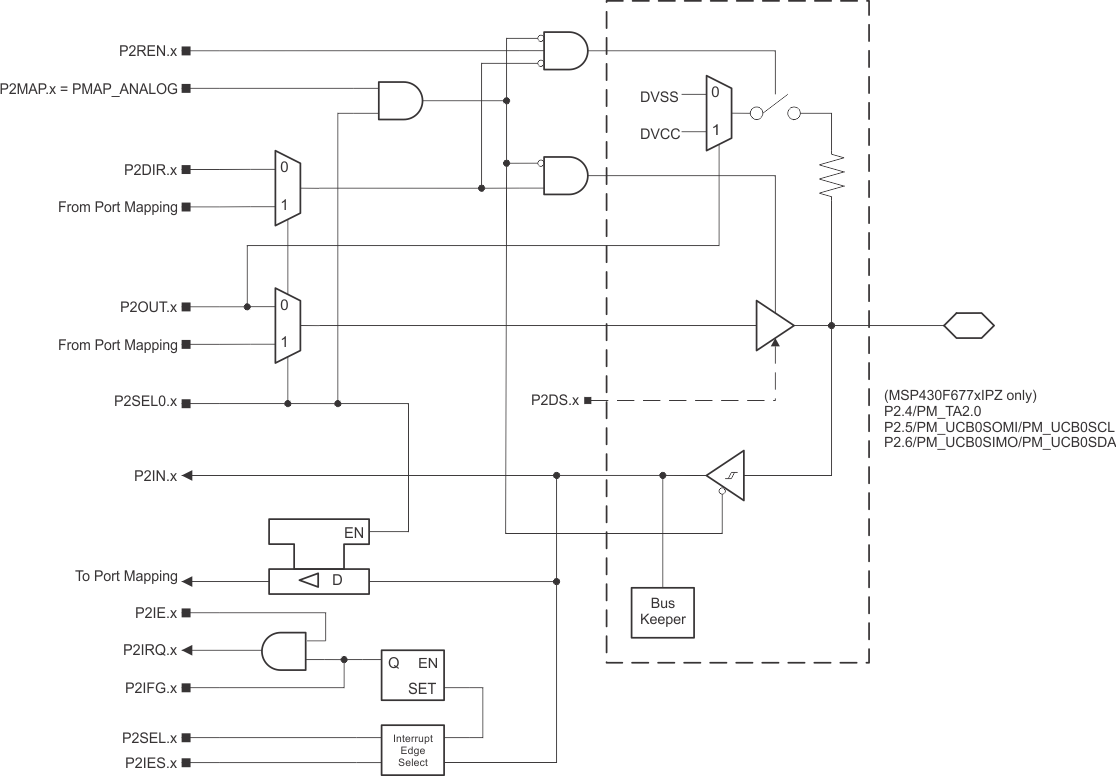

Figure 6-12 shows the port diagram. Table 6-71 summarizes the selection of the pin functions.

MSP430F6779 MSP430F6778 MSP430F6777 MSP430F6776 MSP430F6775 MSP430F6769 MSP430F6768 MSP430F6767 MSP430F6766 MSP430F6765 MSP430F6749 MSP430F6748 MSP430F6747 MSP430F6746 MSP430F6745 P2_456_IPZ.gifFigure 6-12 Port P2 (P2.4 and P2.6) Diagram (MSP430F677xIPZ Only)

Table 6-71 Port P2 (P2.4 and P2.6) Pin Functions (MSP430F677xIPZ Only)

PIN NAME (P2.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P2DIR.x P2SEL0.x P2MAP.x
P2.4/PM_TA2.0/R23 4 P2.4 (I/O) I:0; O:1 0 X
Mapped secondary digital function X 1 ≤ 30
R23 X 1 = 31
P2.5/PM_UCB0SOMI/ PM_UCB0SCL/R13 5 P2.5 (I/O) I:0; O:1 0 X
Mapped secondary digital function X 1 ≤ 30
R13 X 1 = 31
P2.6/PM_UCB0SIMO/ PM_UCB0SDA/R03 6 P2.6 (I/O) I:0; O:1 0 X
Mapped secondary digital function X 1 ≤ 30
R03 X 1 = 31
