6.12.18 Port P6 (P6.0) Input/Output With Schmitt Trigger (PEU Package Only)

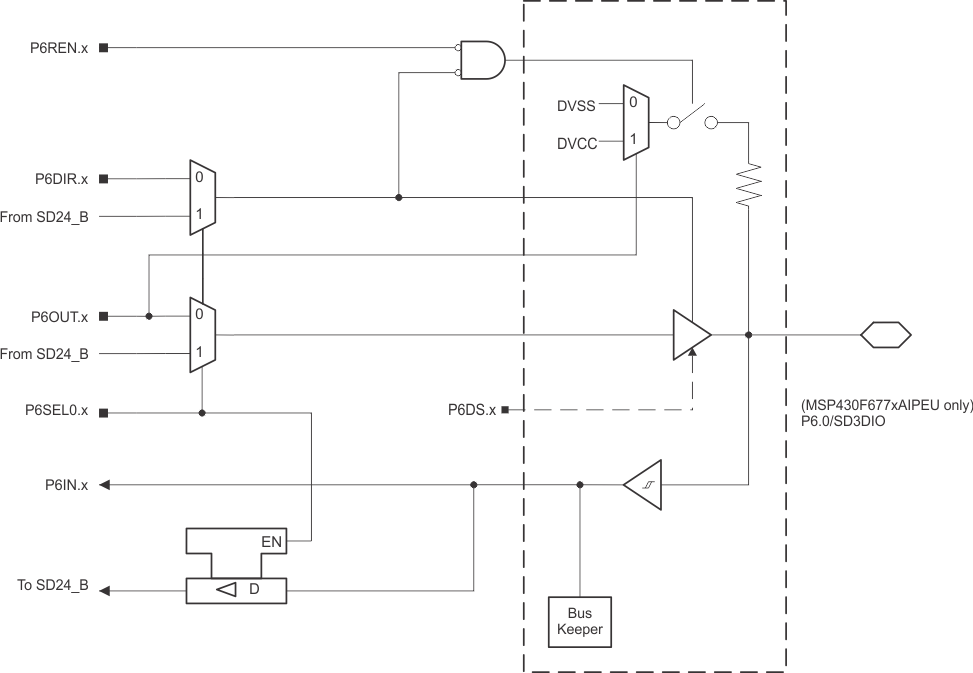

Figure 6-23 shows the port diagram. Table 6-82 summarizes the selection of the pin functions.

MSP430F6779A MSP430F6778A MSP430F6777A MSP430F6776A MSP430F6775A MSP430F6769A MSP430F6768A MSP430F6767A MSP430F6766A MSP430F6765A MSP430F6749A MSP430F6748A MSP430F6747A MSP430F6746A MSP430F6745A P6_0.gifFigure 6-23 Port P6 (P6.0) Diagram (PEU Package Only)

Table 6-82 Port P6 (P6.0) Pin Functions (PEU Package Only)

PIN NAME (P6.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P6DIR.x P6SEL0.x
P6.0/SD3DIO 0 P6.0 (I/O) I:0; O:1 0
Secondary digital function X 1
