6.12.11 Ports P3 (P3.1 to P3.7) Input/Output With Schmitt Trigger (PZ Package Only)

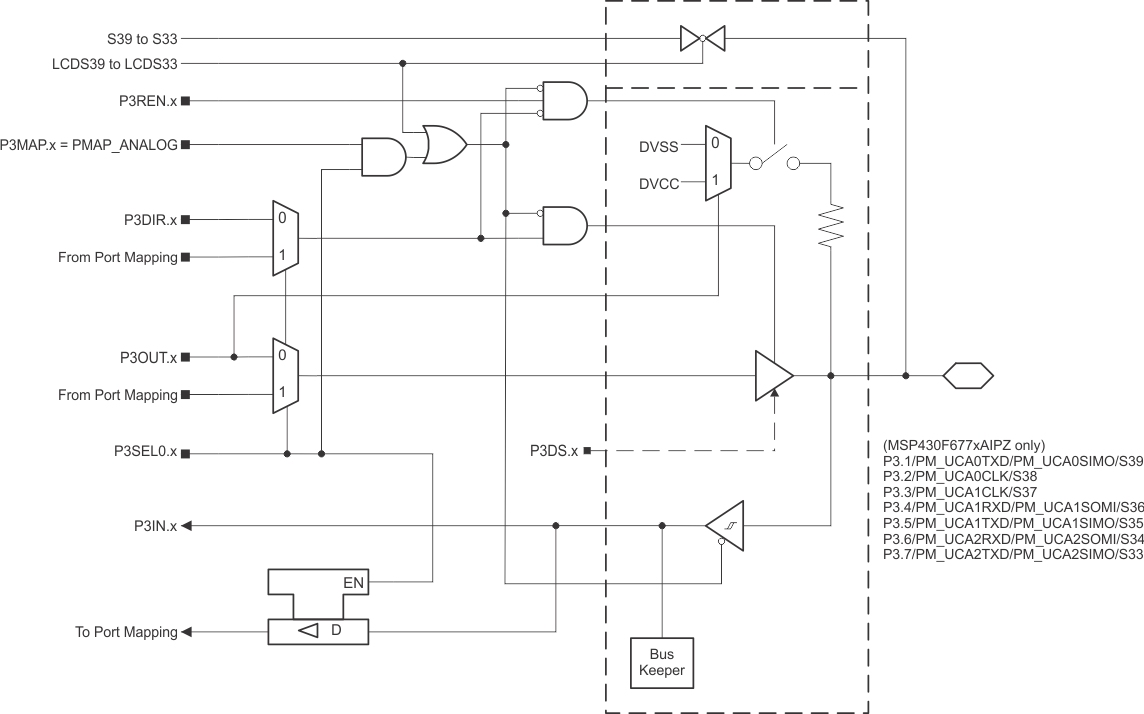

Figure 6-16 shows the port diagram. Table 6-75 summarizes the selection of the pin functions.

MSP430F6779A MSP430F6778A MSP430F6777A MSP430F6776A MSP430F6775A MSP430F6769A MSP430F6768A MSP430F6767A MSP430F6766A MSP430F6765A MSP430F6749A MSP430F6748A MSP430F6747A MSP430F6746A MSP430F6745A P3_1234567_IPZ.gifFigure 6-16 Ports P3 (P3.1 to P3.7) Diagram (PZ Package Only)

Table 6-75 Ports P3 (P3.1 to P3.7) Pin Functions (PZ Package Only)

PIN NAME (P3.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P3DIR.x P3SEL0.x P3MAP.x LCDS39 to LCDS33
P3.1/PM_UCA0TXD/ PM_UCA0SIMO/S39 1 P3.1 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S39 X X X 1
P3.2/PM_UCA0CLK/ S38 2 P3.2 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S38 X X X 1
P3.3/PM_UCA1CLK/ S37 3 P3.3 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S37 X X X 1
P3.4/PM_UCA1RXD/ PM_UCA1SOMI/S36 4 P3.4 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S36 X X X 1
P3.5/PM_UCA1TXD/ PM_UCA1SIMO/S35 5 P3.5 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S35 X X X 1
P3.6/PM_UCA2RXD/ PM_UCA2SOMI/S34 6 P3.6 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S34 X X X 1
P3.7/PM_UCA2TXD/ PM_UCA2SIMO/S33 7 P3.7 (I/O) I:0; O:1 0 X 0
Mapped secondary digital function X 1 ≤ 30 0
Output driver and input Schmitt trigger disabled X 1 = 31 0
S33 X X X 1
