Table 5-32 eUSCI (I2C Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-17)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
feUSCI eUSCI input clock frequency Internal: SMCLK, ACLK
External: UCLK
Duty cycle = 50% ±10%		 fSYSTEM MHz
fSCL SCL clock frequency 2 V, 3 V 0 400 kHz
tHD,STA Hold time (repeated) START fSCL = 100 kHz 2 V, 3 V 5.1 µs
fSCL > 100 kHz 1.5
tSU,STA Setup time for a repeated START fSCL = 100 kHz 2 V, 3 V 5.1 µs
fSCL > 100 kHz 1.4
tHD,DAT Data hold time 2 V, 3 V 0.4 µs
tSU,DAT Data setup time fSCL = 100 kHz 2 V, 3 V 5.0 µs
fSCL > 100 kHz 2 V, 3 V 1.3
tSU,STO Setup time for STOP fSCL = 100 kHz 2 V, 3 V 5.2 µs
fSCL > 100 kHz 1.7
tSP Pulse duration of spikes suppressed by input filter UCGLITx = 0 2 V, 3 V 75 220 ns
UCGLITx = 1 35 120
UCGLITx = 2 30 60
UCGLITx = 3 20 35
tTIMEOUT Clock low time-out UCCLTOx = 1 2 V, 3 V 30 ms
UCCLTOx = 2 33
UCCLTOx = 3 37

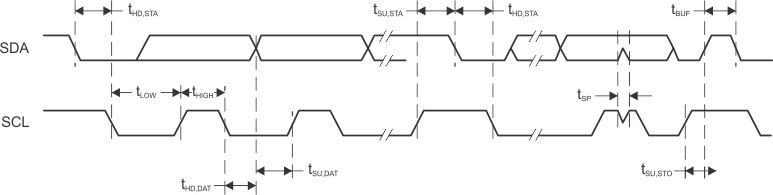

MSP430F6736A MSP430F6735A MSP430F6734A MSP430F6733A MSP430F6731A MSP430F6730A MSP430F6726A MSP430F6725A MSP430F6724A MSP430F6723A MSP430F6721A MSP430F6720A slase46_i2c_timing.gifFigure 5-17 I2C Mode Timing
