6.10.14 Port U (PU.0 and PU.1)

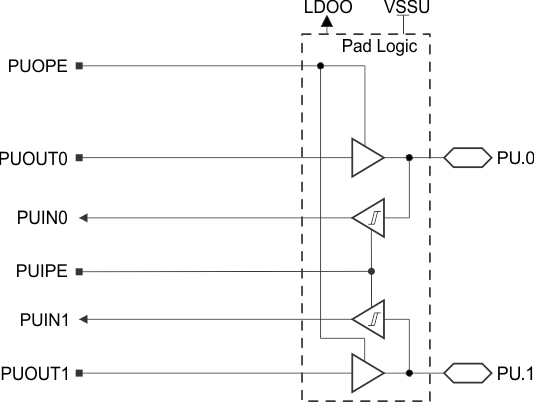

Figure 6-16 shows the port diagram. Table 6-56 summarizes the selection of the pin functions.

MSP430F5329 MSP430F5328 MSP430F5327 MSP430F5326 MSP430F5325 MSP430F5324 slas678-pu.gifFigure 6-16 Port U (PU.0 and PU.1) Diagram

Table 6-56 Port U (PU.0 and PU.1) Functions(1)

PUIPE PUOPE PUOUT1 PUOUT0 PU.1 PU.0 PORT U FUNCTION
0 1 0 0 Output low Output low Outputs enabled
0 1 0 1 Output low Output high Outputs enabled
0 1 1 0 Output high Output low Outputs enabled
0 1 1 1 Output high Output high Outputs enabled
1 0 X X Input enabled Input enabled Inputs enabled
0 0 X X Hi-Z Hi-Z Outputs and inputs disabled
(1) PU.1 and PU.0 inputs and outputs are supplied from LDOO. LDOO can be generated by the device using the integrated 3.3-V LDO when enabled. LDOO can also be supplied externally when the 3.3-V LDO is not being used and is disabled.
