5.43 Ports PU.0 and PU.1

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-17 through Figure 5-19)
PARAMETER TEST CONDITIONS MIN MAX UNIT
VOH High-level output voltage VLDOO = 3.3 V ±10%, IOH = –25 mA,
See Figure 5-18 for typical characteristics		 2.4 V
VOL Low-level output voltage VLDOO = 3.3 V ±10%, IOL = 25 mA,
See Figure 5-17 for typical characteristics		 0.4 V
VIH High-level input voltage VLDOO = 3.3 V ±10%,
See Figure 5-19 for typical characteristics		 2.0 V
VIL Low-level input voltage VLDOO = 3.3 V ±10%,
See Figure 5-19 for typical characteristics		 0.8 V
MSP430F5329 MSP430F5328 MSP430F5327 MSP430F5326 MSP430F5325 MSP430F5324 slas678-PUVOL.gifFigure 5-17 Ports PU.0, PU.1 Typical Low-Level Output Current vs Low-Level Output Voltage
MSP430F5329 MSP430F5328 MSP430F5327 MSP430F5326 MSP430F5325 MSP430F5324 slas678-PUVOH.gifFigure 5-18 Ports PU.0, PU.1 Typical High-Level Output Current vs High-Level Output Voltage

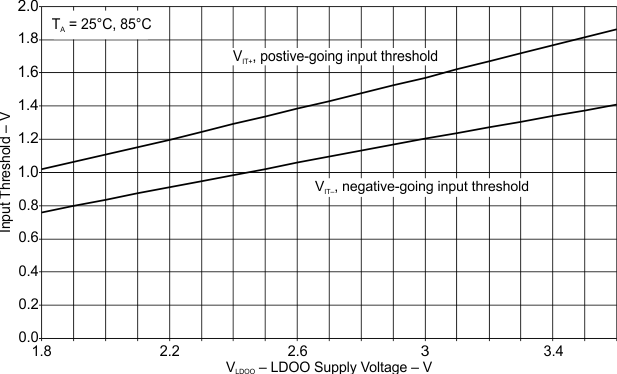

MSP430F5329 MSP430F5328 MSP430F5327 MSP430F5326 MSP430F5325 MSP430F5324 slas678-PU_input.gifFigure 5-19 Ports PU.0, PU.1 Typical Input Threshold
