8.39 USCI (SPI Slave Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
(see Figure 8-15 and Figure 8-16)
PARAMETERTEST CONDITIONSVCCVIOMINMAXUNIT
tSTE,LEADSTE lead time, STE low to clockPMMCOREV = 01.8 V1.62 V to 1.80 V12ns
3.0 V1.62 V to 1.98 V12
PMMCOREV = 32.4 V1.62 V to 1.98 V10
3.0 V1.62 V to 1.98 V10
tSTE,LAGSTE lag time, Last clock to STE highPMMCOREV = 01.8 V1.62 V to 1.80 V6ns
3.0 V1.62 V to 1.98 V6
PMMCOREV = 32.4 V1.62 V to 1.98 V6
3.0 V1.62 V to 1.98 V6
tSTE,ACCSTE access time, STE low to SOMI data outPMMCOREV = 01.8 V1.62 V to 1.80 V65ns
3.0 V1.62 V to 1.98 V65
PMMCOREV = 32.4 V1.62 V to 1.98 V45
3.0 V1.62 V to 1.98 V45
tSTE,DISSTE disable time, STE high to SOMI high impedancePMMCOREV = 01.8 V1.62 V to 1.80 V35ns
3.0 V1.62 V to 1.98 V35
PMMCOREV = 32.4 V1.62 V to 1.98 V25
3.0 V1.62 V to 1.98 V25
tSU,SISIMO input data setup timePMMCOREV = 01.8 V1.62 V to 1.80 V5ns
3.0 V1.62 V to 1.98 V5
PMMCOREV = 32.4 V1.62 V to 1.98 V5
3.0 V1.62 V to 1.98 V5
tHD,SISIMO input data hold timePMMCOREV = 01.8 V1.62 V to 1.80 V5ns
3.0 V1.62 V to 1.98 V5
PMMCOREV = 32.4 V1.62 V to 1.98 V5
3.0 V1.62 V to 1.98 V5
tVALID,SOSOMI output data valid time(2)UCLK edge to SOMI valid,
CL = 20 pF,
PMMCOREV = 0		1.8 V1.62 V to 1.80 V75ns
3.0 V1.62 V to 1.98 V75
UCLK edge to SOMI valid,
CL = 20 pF,
PMMCOREV = 3		2.4 V1.62 V to 1.98 V50
3.0 V1.62 V to 1.98 V50
tHD,SOSOMI output data hold time(3)CL = 20 pF,
PMMCOREV = 0		1.8 V1.62 V to 1.80 V10ns
3.0 V1.62 V to 1.98 V10
CL = 20 pF,
PMMCOREV = 3		2.4 V1.62 V to 1.98 V10
3.0 V1.62 V to 1.98 V10
(1) fUCxCLK = 1/2tLO/HI with tLO/HI ≥ max(tVALID,MO(Master) + tSU,SI(USCI), tSU,MI(Master) + tVALID,SO(USCI))
For the master parameters tSU,MI(Master) and tVALID,MO(Master), see the SPI parameters of the attached master.
(2) Specifies the time to drive the next valid data to the SOMI output after the output changing UCLK clock edge. See the timing diagrams in Figure 8-15 and Figure 8-16.
(3) Specifies how long data on the SOMI output is valid after the output changing UCLK clock edge. See the timing diagrams in Figure 8-15 and Figure 8-16.

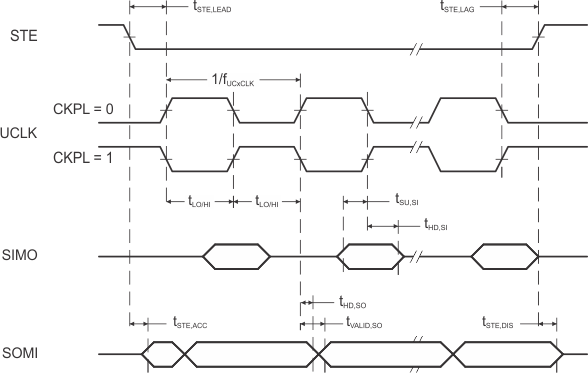

GUID-ABFDF693-438B-41BE-B678-7CB814312E81-low.gifFigure 8-15 SPI Slave Mode, CKPH = 0

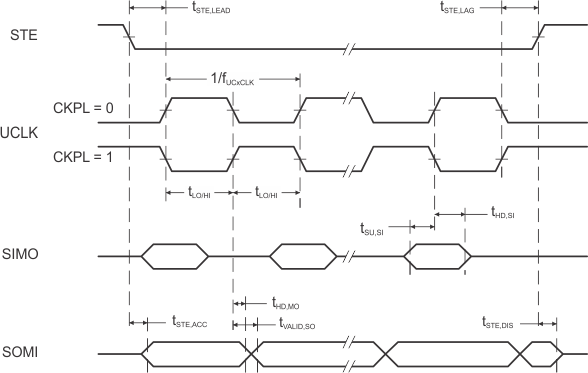

GUID-57F1C61B-3CF0-4857-9C36-94F68E7CA227-low.gifFigure 8-16 SPI Slave Mode, CKPH = 1
