5.34 USCI (I2C Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-16)
PARAMETER TEST CONDITIONS VCC MIN MAX UNIT
fUSCI USCI input clock frequency Internal: SMCLK or ACLK,
External: UCLK
Duty cycle = 50% ±10%		 fSYSTEM MHz
fSCL SCL clock frequency 2.2 V, 3 V 0 400 kHz
tHD,STA Hold time (repeated) START fSCL ≤ 100 kHz 2.2 V, 3 V 4.0 µs
fSCL > 100 kHz 0.6
tSU,STA Setup time for a repeated START fSCL ≤ 100 kHz 2.2 V, 3 V 4.7 µs
fSCL > 100 kHz 0.6
tHD,DAT Data hold time 2.2 V, 3 V 0 ns
tSU,DAT Data setup time 2.2 V, 3 V 250 ns
tSU,STO Setup time for STOP fSCL ≤ 100 kHz 2.2 V, 3 V 4.0 µs
fSCL > 100 kHz 0.6
tSP Pulse duration of spikes suppressed by input filter 2.2 V, 3 V 50 600 ns

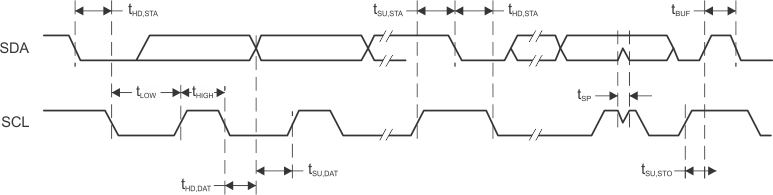

MSP430F5249 MSP430F5247 MSP430F5244 MSP430F5242 MSP430F5239 MSP430F5237 MSP430F5234 MSP430F5232 slas000-017.gifFigure 5-16 I2C Mode Timing
